Brother GTX-4 - Location of the Output Check Solenoids

3-10
What to do

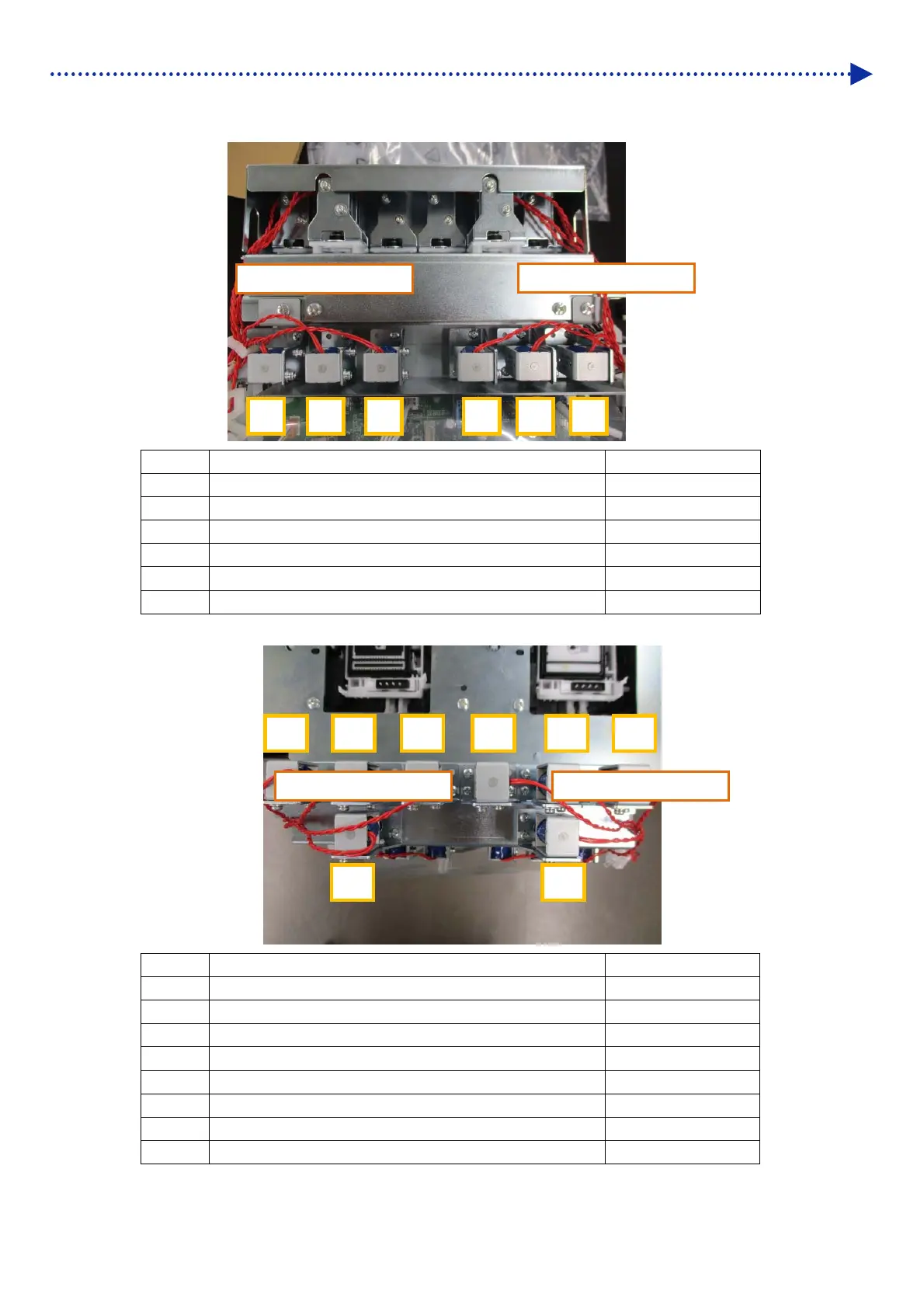

Location of the Output Check Solenoids
Number Sub menu Solenoid
(1) Maintenance unit LANCE (color) WASTE
(2) Maintenance unit K WASTE
(3) Maintenance unit YMC WASTE
(4) Maintenance unit LANCE (white) WASTE
(5) Maintenance unit W1 WASTE
(6) Maintenance unit W2-4 WASTE
Number Sub menu Solenoid
(7) Maintenance unit LANCE (color) WASH
(8) Maintenance unit K WASH
(9) Maintenance unit YMC WASH
(10) Maintenance unit LANCE (white) WASH
(11) Maintenance unit W1 WASH
(12) Maintenance unit W2-4 WASH
(13) Maintenance unit LANCE (color) AIR
(14) Maintenance unit LANCE (white) AIR
(7) (8) (9) (10)(11) (12)
(14) (13)
On the white side
On the color side
On the white side
(1)(2)(3)(4)(5) (6)
On the color side
