6-1-17. Replacement of encoder strip
Disassembly

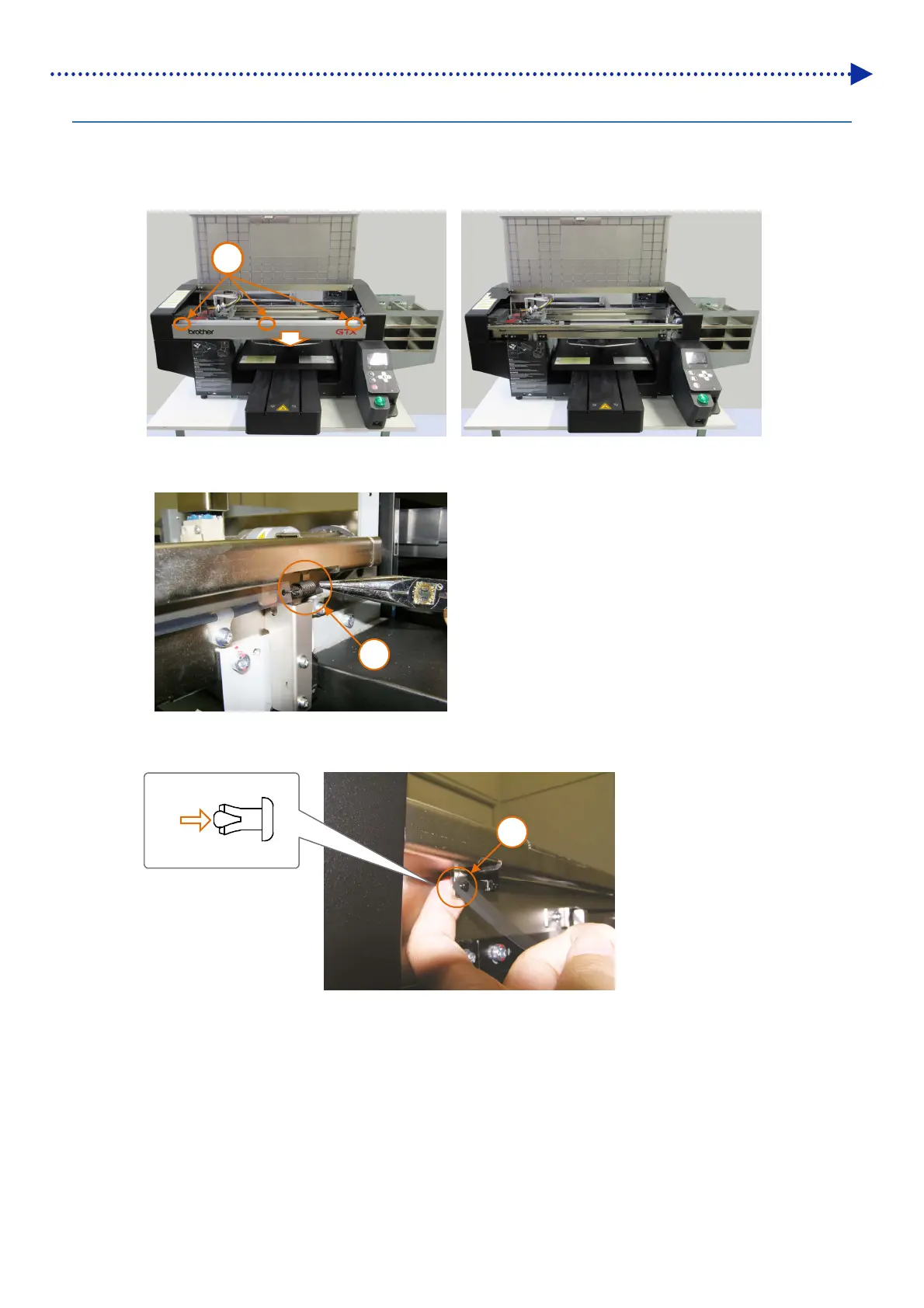

(1) Remove the three screws of the encoder cover F to detach it.
(2) Using a pair of pliers, detach the spring attached at the right of the encoder strip from the frame.
(3) Push the nylon rivet on the left of the encoder strip from the reverse side and detach it from the frame.
3
Push
2
1
