OPTIONAL ACCESSORIES 13 - 7
4

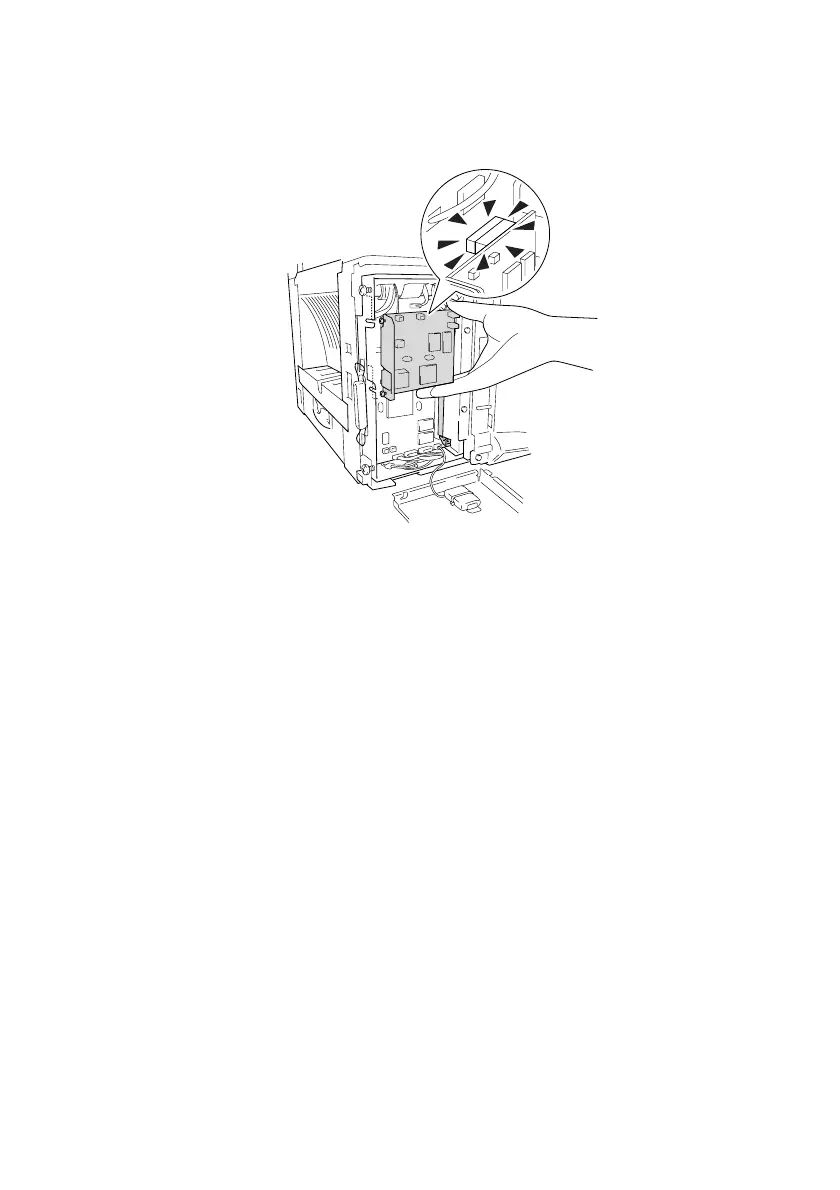

Plug the NC-9100h into connector P1 located on the main board
as shown in the illustration (press firmly) and secure the
NC-9100h with the two screws.
5
Put the metal shield plate back on and secure it with the two
screws.
6
Put the side cover back on.
7
Reconnect any additional interface cables that you removed.
8
Reconnect the power cable and then turn on the MFC power
switch.
9
Reconnect the telephone line cord and handset curled cord.
10
Press the Test switch and print a network configuration page.
(See Test switch on page 13-9.)
