Brother MFC-J3520 Service Manual

3-13
Confidential

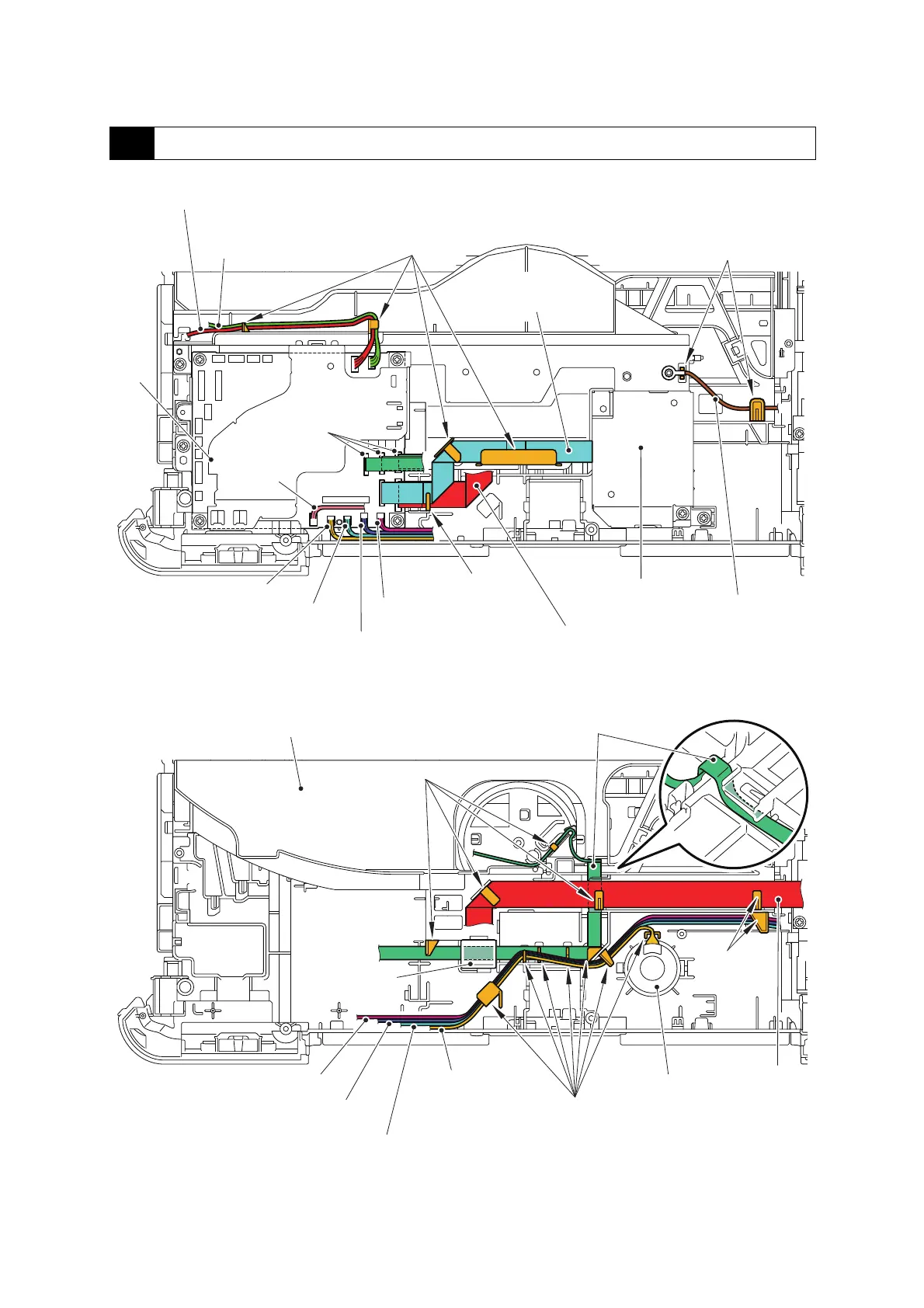

2 Main PCB ASSY and MJ PCB ASSY
Switchback sensor harness
Cable guides
Cable guides
Main
ASSY
Speaker harness
Ink cartridge cover sensor harness
Purge cam sensor harness
Registration
sensor harness
Cable guide
Ink sensor flat cable
MJ PCB flat cable
MJ PCB ASSY
Tube support plate
Cable guides
PCB
Speaker harness
Registration sensor harness
Purge cam sensor harness
Ink cartridge cover sensor harness
Cable guides
Cable guides
Carriage
Ferrite core
Speaker
Ink sensor
flat cable
flat cable
PF encoder/registration sensor harness
Engine FG wire
Carriage flat cable
Document scanner
sensor
harness

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
