Brother MFC-J3520 Service Manual

3-14
Confidential

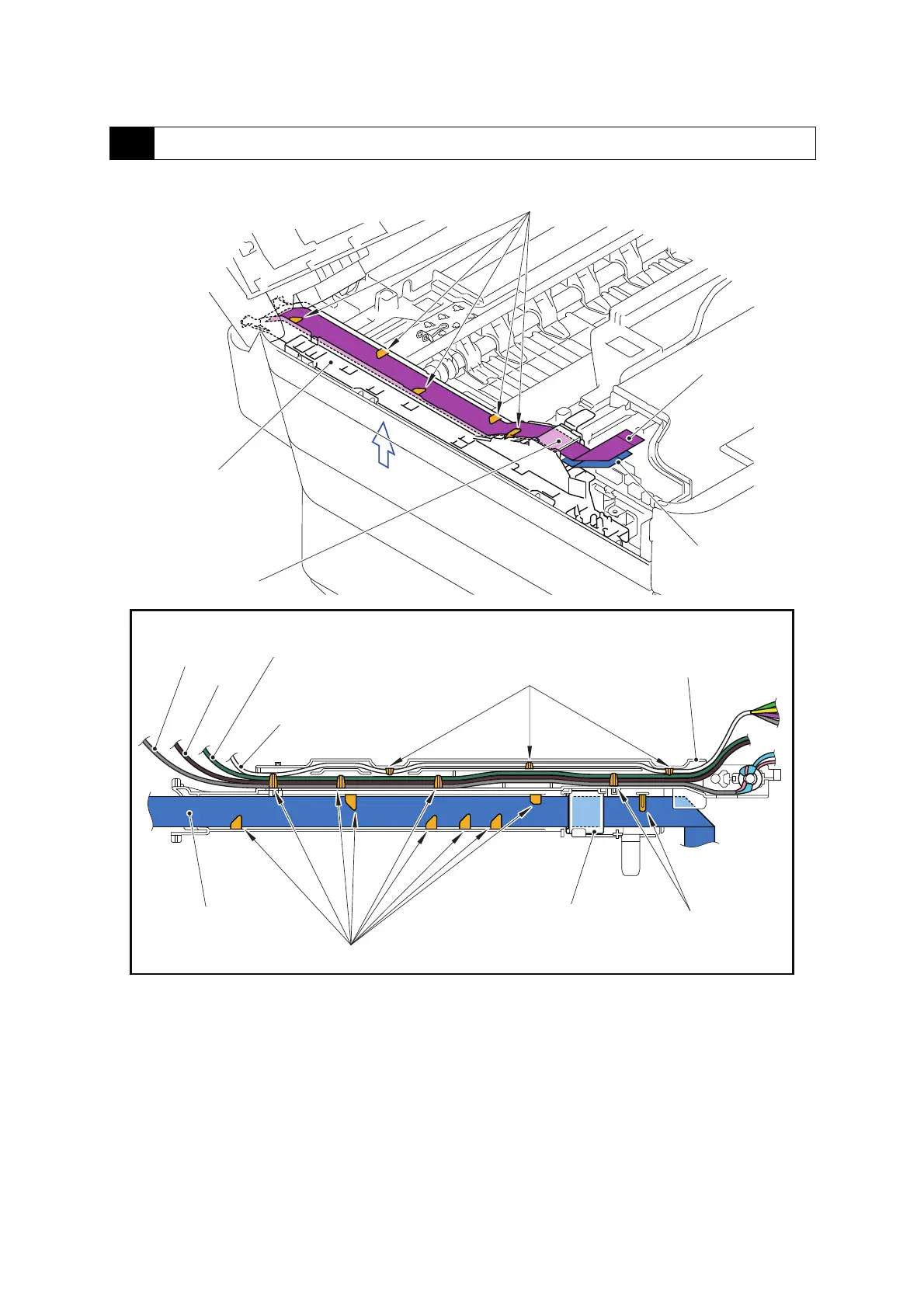

3 Scanner harness holder
Cable guides
First side CIS
flat cable
Second side CIS
flat cable
Ferrite core
Scanner harness holder
Ferrite core
Second side CIS
flat cable
Cable guides
Cable guides
Scanner harness holder
ADF motor harness
Scanner motor harness
Cable guides
<A view>
A view
ADF cover sensor/
Document scanning position sensor/
Document detection sensor harness
FB FG wire

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
