Brother MFC-J3520 Service Manual

3-49
Confidential

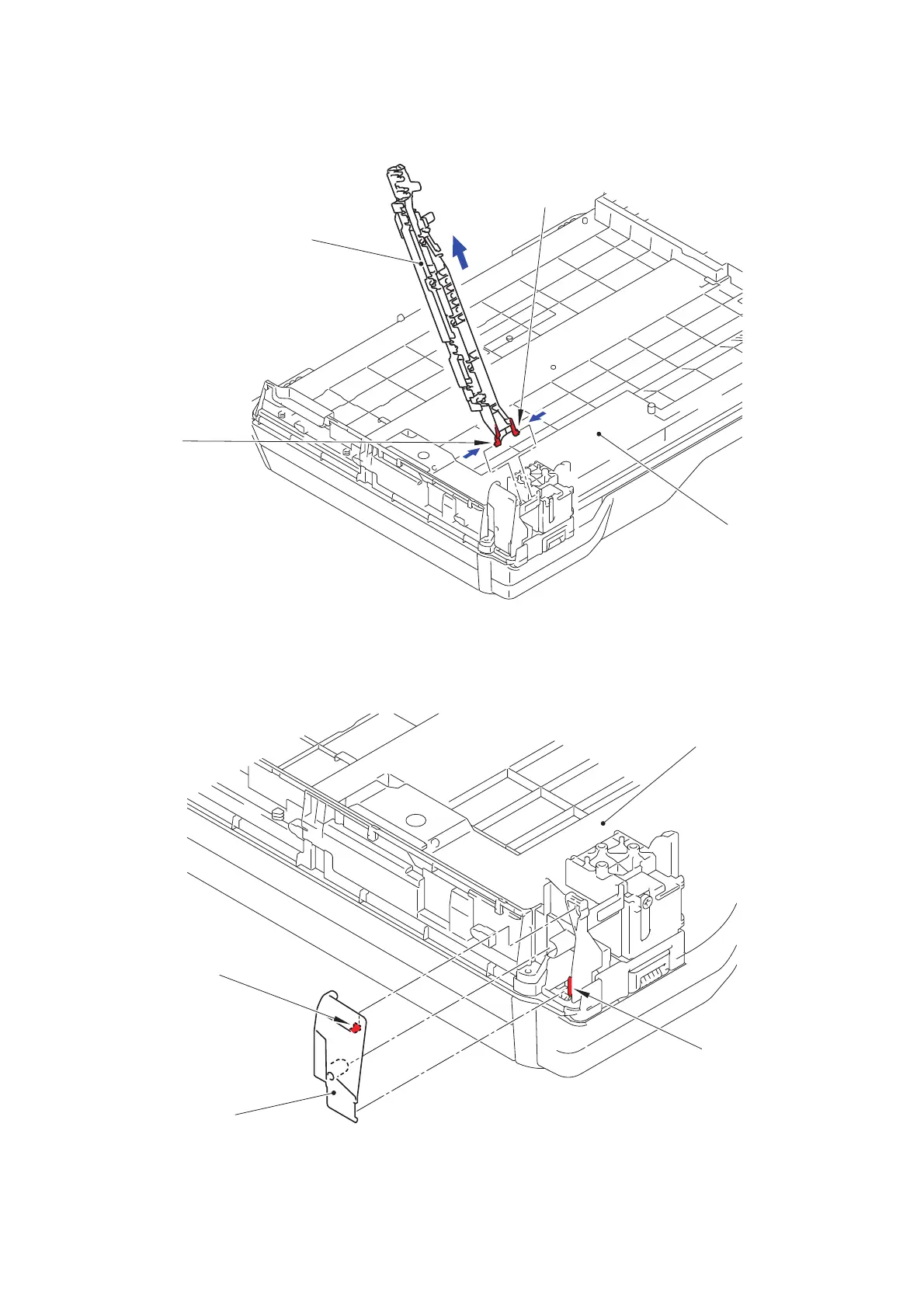

(3) Release the two Hooks and remove the Scanner harness holder from the
Document scanner unit.
Fig. 3-38
(4) Release the two Hooks and remove the Harness support from the Document
scanner unit.
Fig. 3-39
Hook
Hook
Scanner harness holder
Document scanner unit
Hook
Hook
Document scanner unit
Harness support
<Front>
<Rear>

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
