3-17
Confidential
Note Bend the Purge cam switch harness and Speaker harness in "x" as shown above.
9

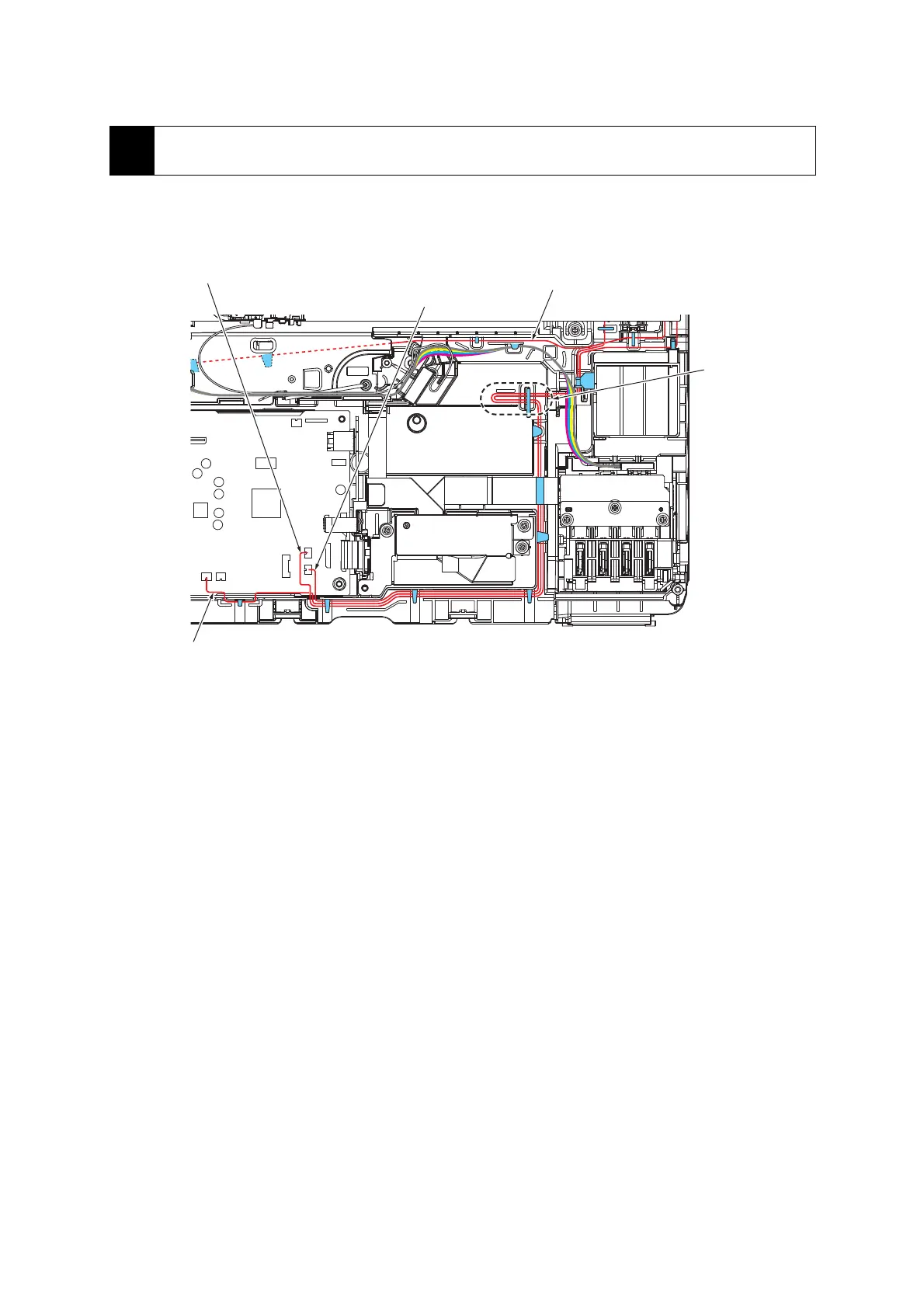

Lower cover upper right side: Purge cam switch harness, Carriage motor harness, Speaker
harness, Ink cartridge cover sensor harness
(3_011L)
"x" part
Purge cam switch harness
Speaker harness
Ink cartridge
cover sensor harness
Carriage motor harness
