3-19
Confidential
11

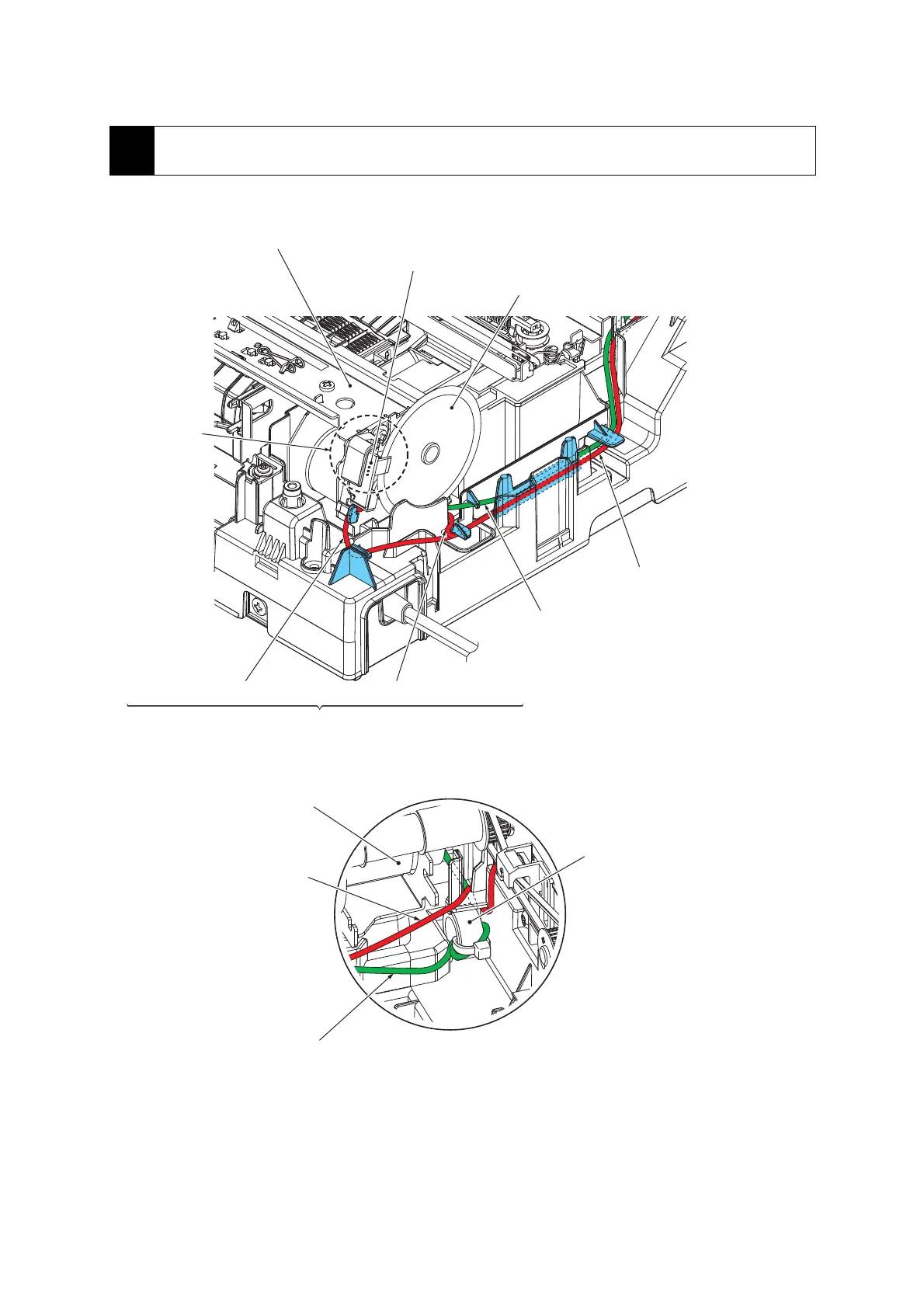

Lower cover left rear side: PF/Registration sensor harness ASSY (PF encoder sensor harness
and Registration sensor harness), Paper feed motor harness
(3_013L)
CR guide rail
PF encoder sensor PCB ASSY
PF encoder disk
PF/Registration sensor
harness ASSY
Paper feed motor harness
PF encoder sensor harness
Registration sensor harness
PF/Registration sensor harness ASSY
Ferrite core
Paper feed motor
[Part A]
[Part A]
Paper feed motor harness
Registration sensor
harness
