3-35
Confidential

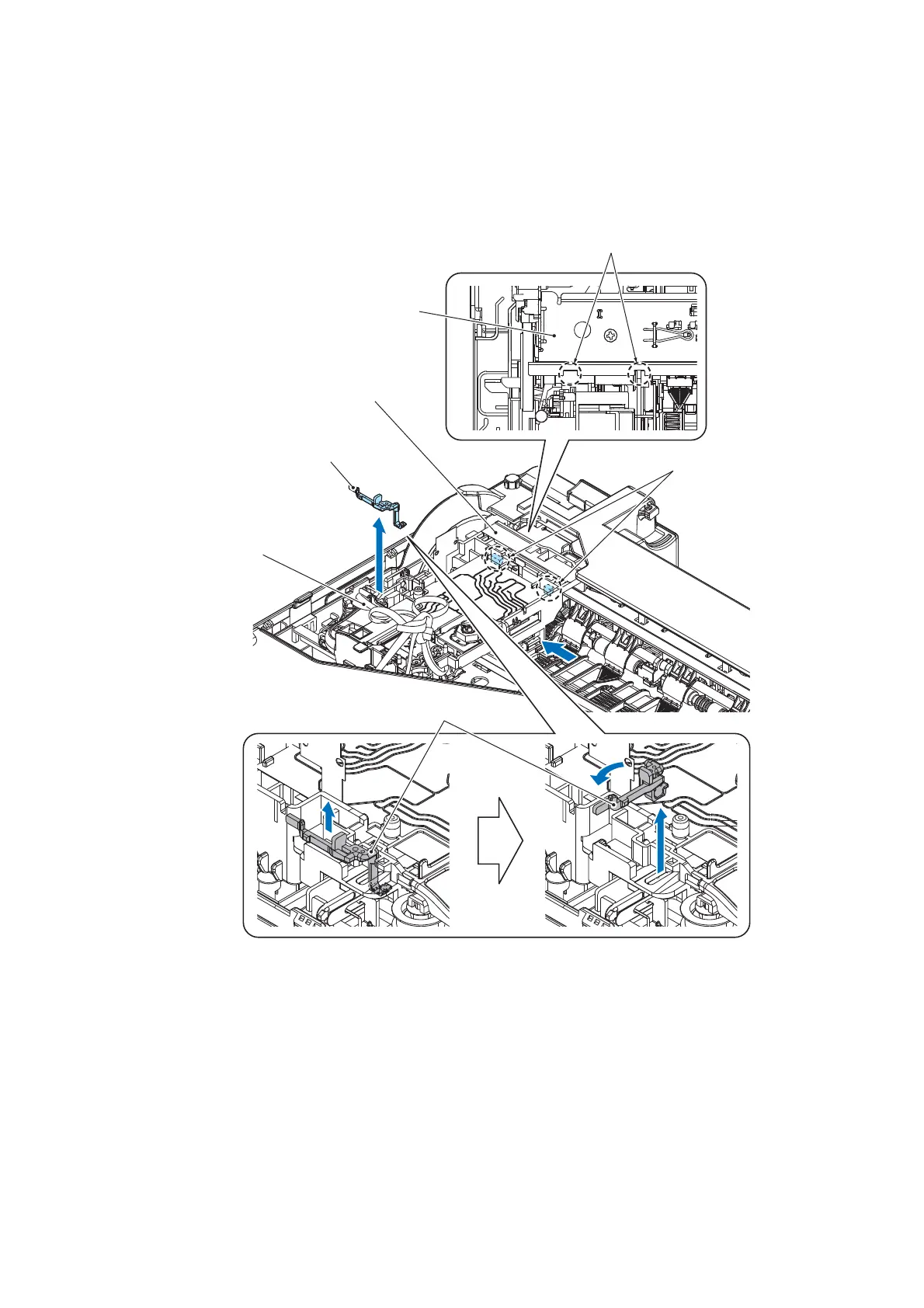

(18)As shown below, loosely tie the CR timing belt in a bundle on the Head/carriage unit.
(19)Move the Head/carriage unit to the left side until it meets the (two) CR guide rail
notches.
(20)Remove the Encoder lock by turning it 90 degrees.
(3_029L)
Head/carriage unit
CR timing belt
Encoder lock
CR guide rail
Notches
Encoder lock
Hook
