3-42
Confidential

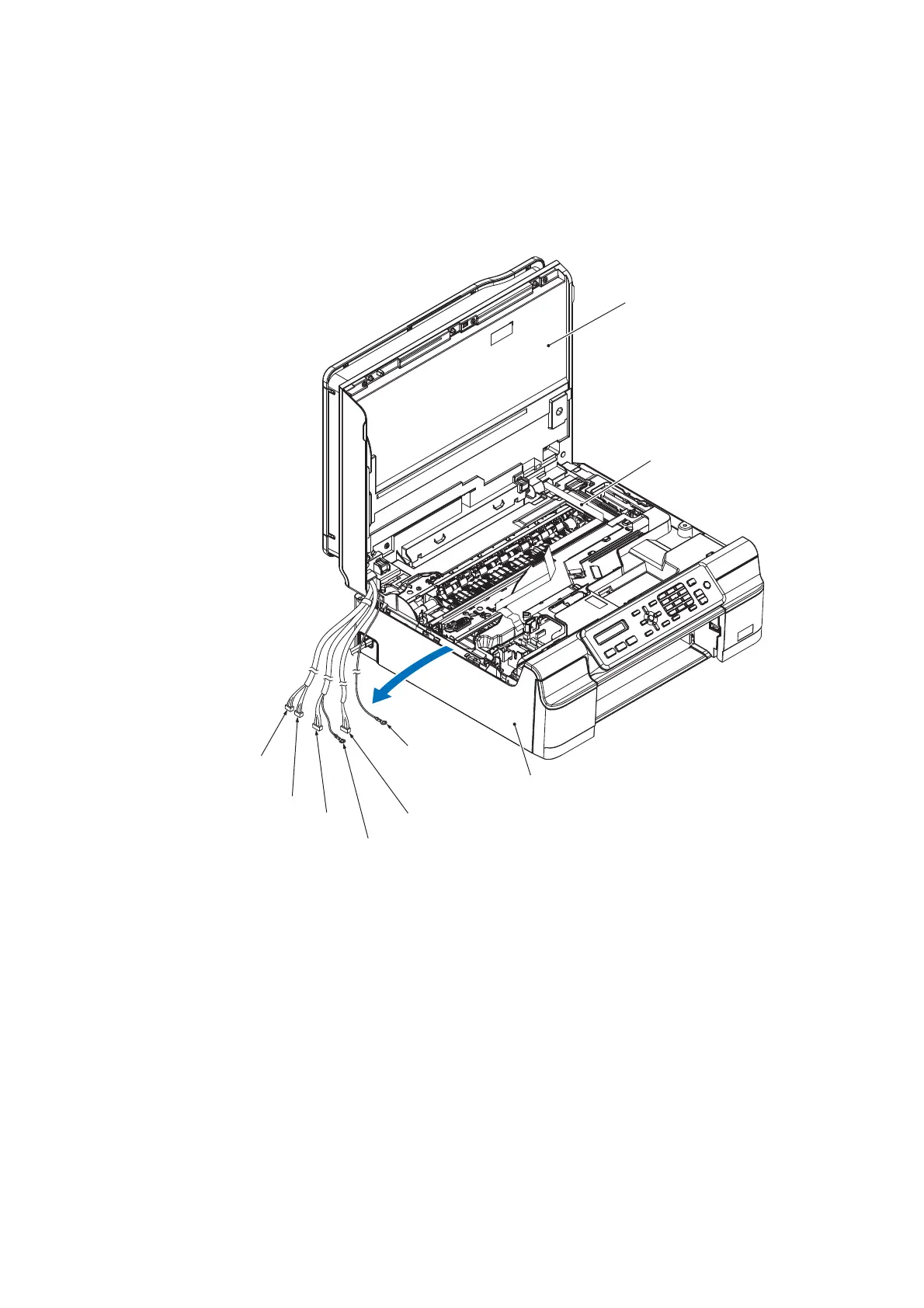

(5) <Models with ADF> Remove the Document detection sensor harness
*1
, Document
scanning position sensor harness
*1
, and ADF motor harness
*1
from the Upper cover
leftmost end.
(6) Remove the Document scanner motor harness, ADF FG wire
*1
, and Document
scanner FG wire.
Assembling Note Route the Document scanning position sensor harness and Document
detection sensor harness, and then route the Document scanner FG wire, Document
scanner motor harness, ADF motor harness
*1
, and ADF FG wire
*1
. (Refer to the figure in
Section 7-1 of this chapter)
Upper cover
Document scanner
FG wire
CIS flat cable
Document scanner unit
Document scanning position
sensor harness*1
Document scanner motor harness
Document detection sensor
harness*1
*1 For models with ADF
ADF FG wire*1
ADF motor harness*1
To Next Page
