3-44
Confidential

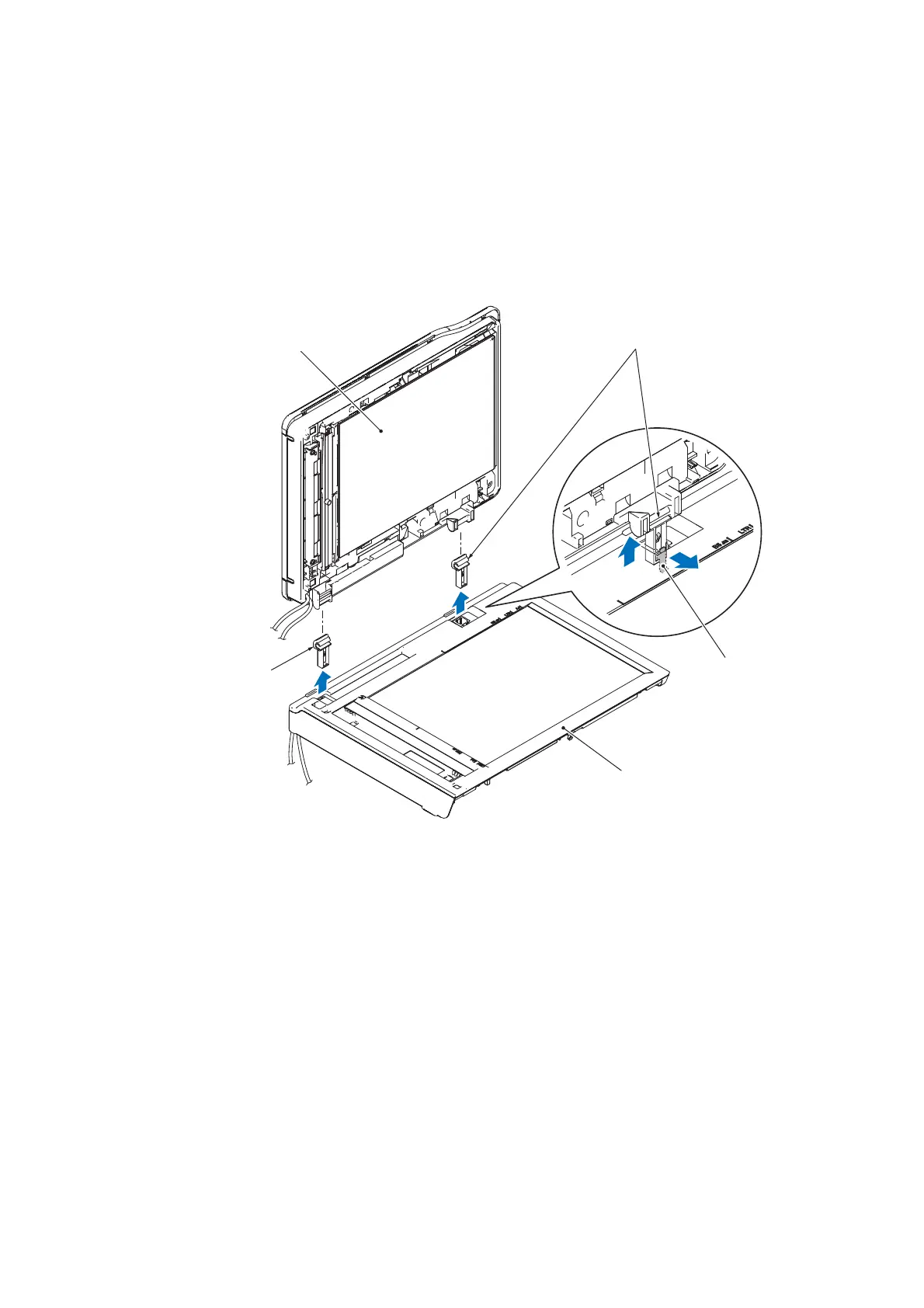

(8) Open the ADF unit
*1
or Document cover ASSY
*2
at around 90 degrees, release the
two latches, then pull it backwards.
Assembling Note When mounting the ADF unit onto the Document scanner unit, insert a
2 to 3 cm thick magazine or paper bundle in between to ensure the movement of
harnesses. Do not place objects that can scratch or stain the Document cover glass.
(9) Turn the ADF hinge slightly and remove it from the ADF unit
*1
or from the Document
cover ASSY
*2
.
(3_054)
ADF hinge
Latch
ADF hinge
ADF unit*1
Document cover ASSY*2
Document scanner unit
*1 For models with ADF
*2 For models without ADF
To Next Page
