3-46
Confidential

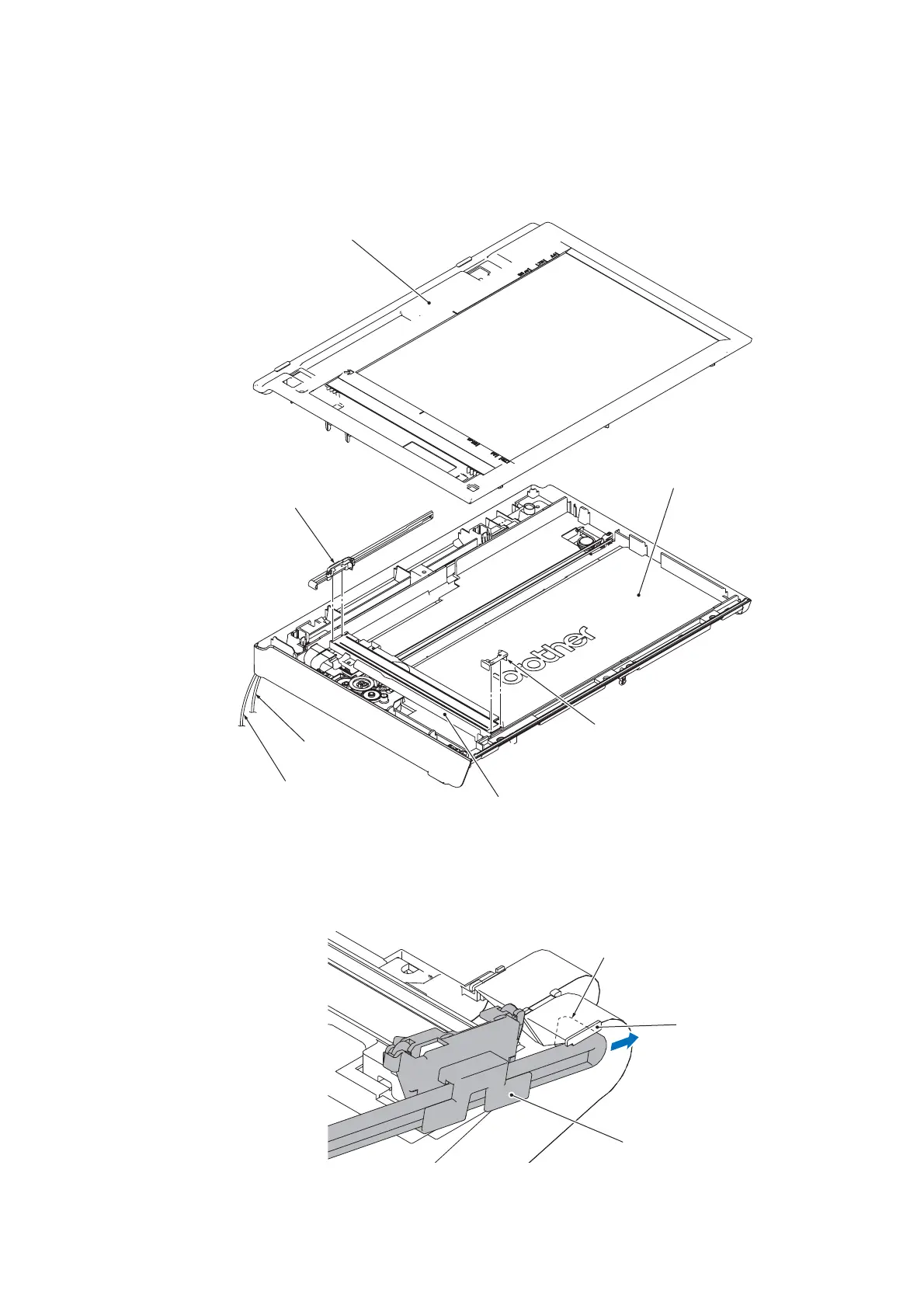

(3) Turn the Document scanner unit right side up.
(4) Remove the Document scanner top cover.
(5) Remove the CIS roller holder F and CIS roller holder R.
Assembling Note When attaching the CIS roller holder R, fit the projection into the lower
side of the CIS unit.
(3_057)
Document scanner top cover
Document scanner bottom cover
CIS roller holder R
CIS roller holder F
CIS unit
Document scanner motor harness
Document
scanner FG wire
(Right)
(Front)
(3_058)
CIS unit
CIS roller holder R
Projection
To Next Page
