Assembling Note
• Assemble new CIS flat cable following the steps below.
1) Fold CIS flat cable and affix the double-sided tape as shown below.
Note Make sure that no dust or smudge remains on the surface of the CIS flat cable.








 







rr
r r


  



 
r
r
r
r
r





(3_060)
Double-sided tape position
Mountain fold
Valley fold

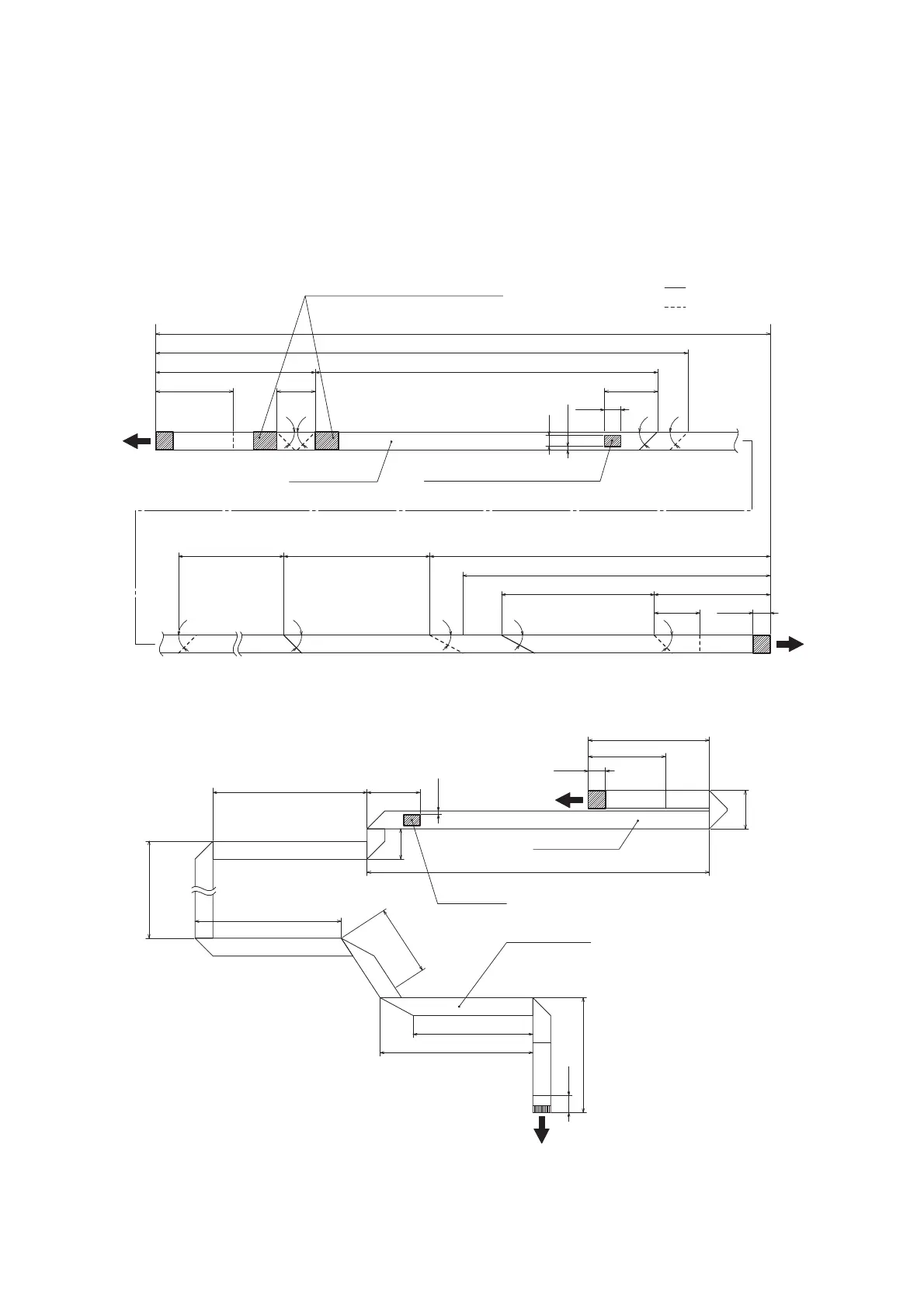

Folding Instruction
CIS unit side
UL notation
printing surface
Double-sided tape (affixed on
the reverse side)
Main unit side
Double-sided tape
UL notation
printing surface
Main unit side
UL notation printing surface
(Unit: mm)
CIS unit side
Do not allow your fingers to touch the
pasting portions to the CIS carriage.
