3-82
Confidential

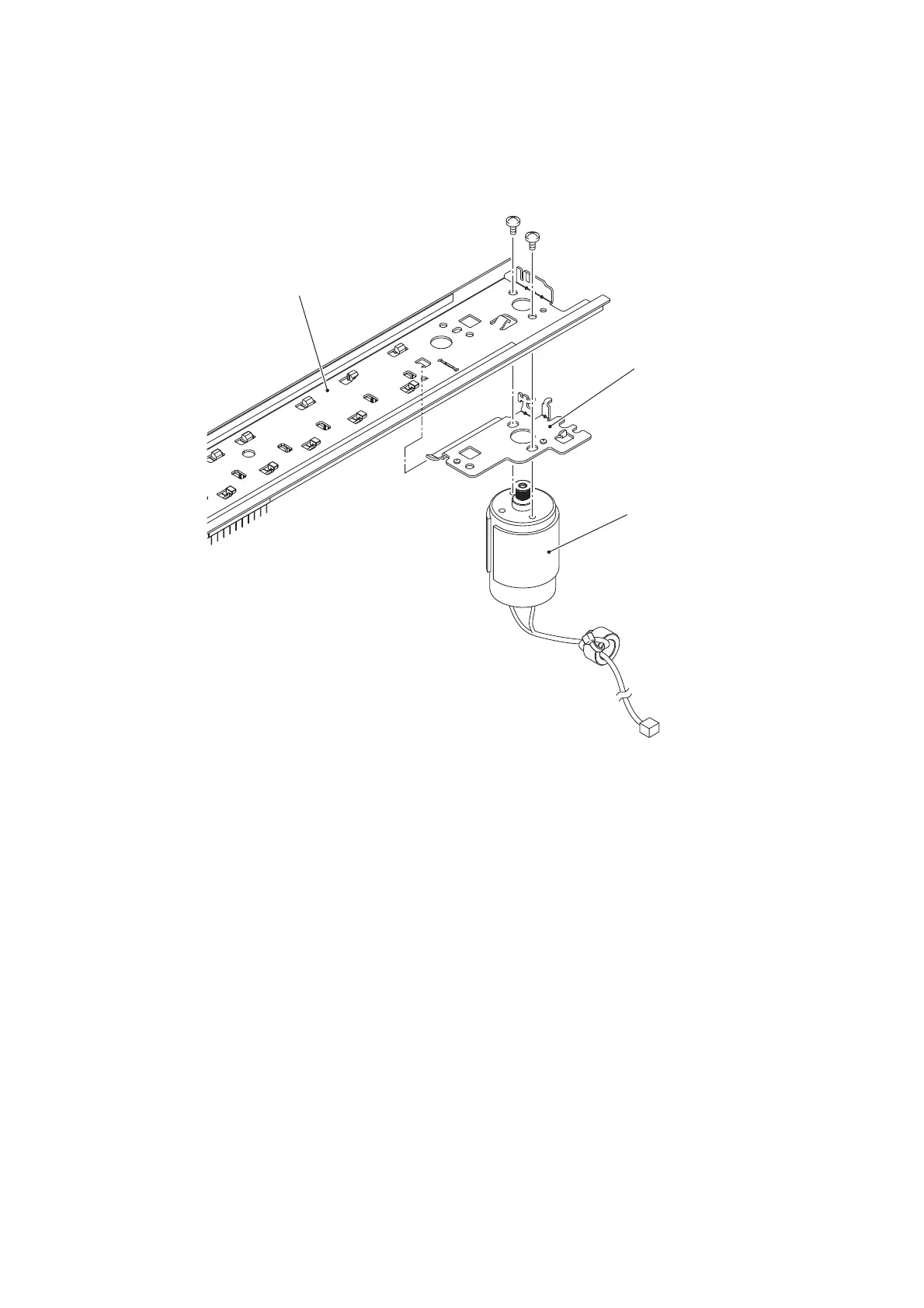

(4) Remove the two screws of the SCREW BIND M3x6 from the CR frame, and remove
the Carriage motor and Motor bracket from the CR frame.
(3_060L)
SCREW BIND M3x6
Motor bracket
Carriage motor
CR frame
