BRP ROTAX 912 Series User Manual

BRP-Rotax
MAINTENANCE MANUAL LINE
Option 2
Step
Procedure
1 Remove one end of the compensating tube (2) and tube from the push on
angular tube (5) after removing the two tension clamp (4).
2
Using the push on angular tube (5) and compensating tube (2) install a flexi-
ble rubber hose (6) leading to the vacuum gauge (1).
AE_912_0087
2
5
1
4
3
6

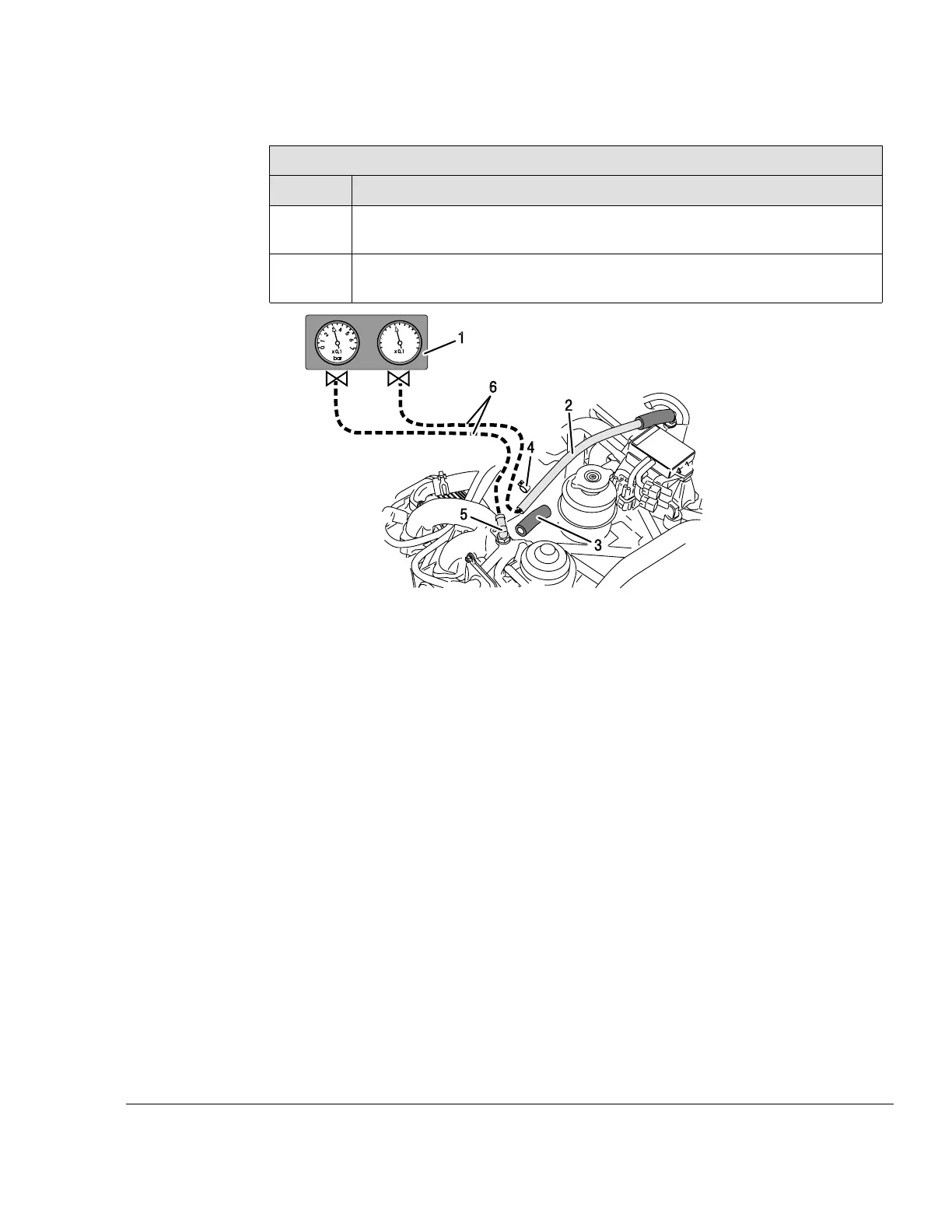

Figure 7.18: Option 2
1
Vacuum gauge
2
Compensating tube
3 Tube 4
Clamp
5
Angular tube
6 Rubber hose
Effectivity: 912 Series
Rev. 0
12–20–00
Page 29
January 01 2020
