MAINTENANCE MANUAL LINE
Alternative NOTE
If desired, the compact special tool part no. 877540 can be used to remove the
propeller gearbox.
Step
Procedure
1
Insert the dowel pin 8x20 into the bore on the right and left of the gearbox
housing.
2 Install hex. screw M6x40 into the pushing jig assy.
3 Put the pushing jig assy. in the center and fix it with a hex. screw M10x20.
4
Using the hex. screw, press the gearbox housing off from the crankcase si-
multaneously on the right and left.
09560
1
2
3

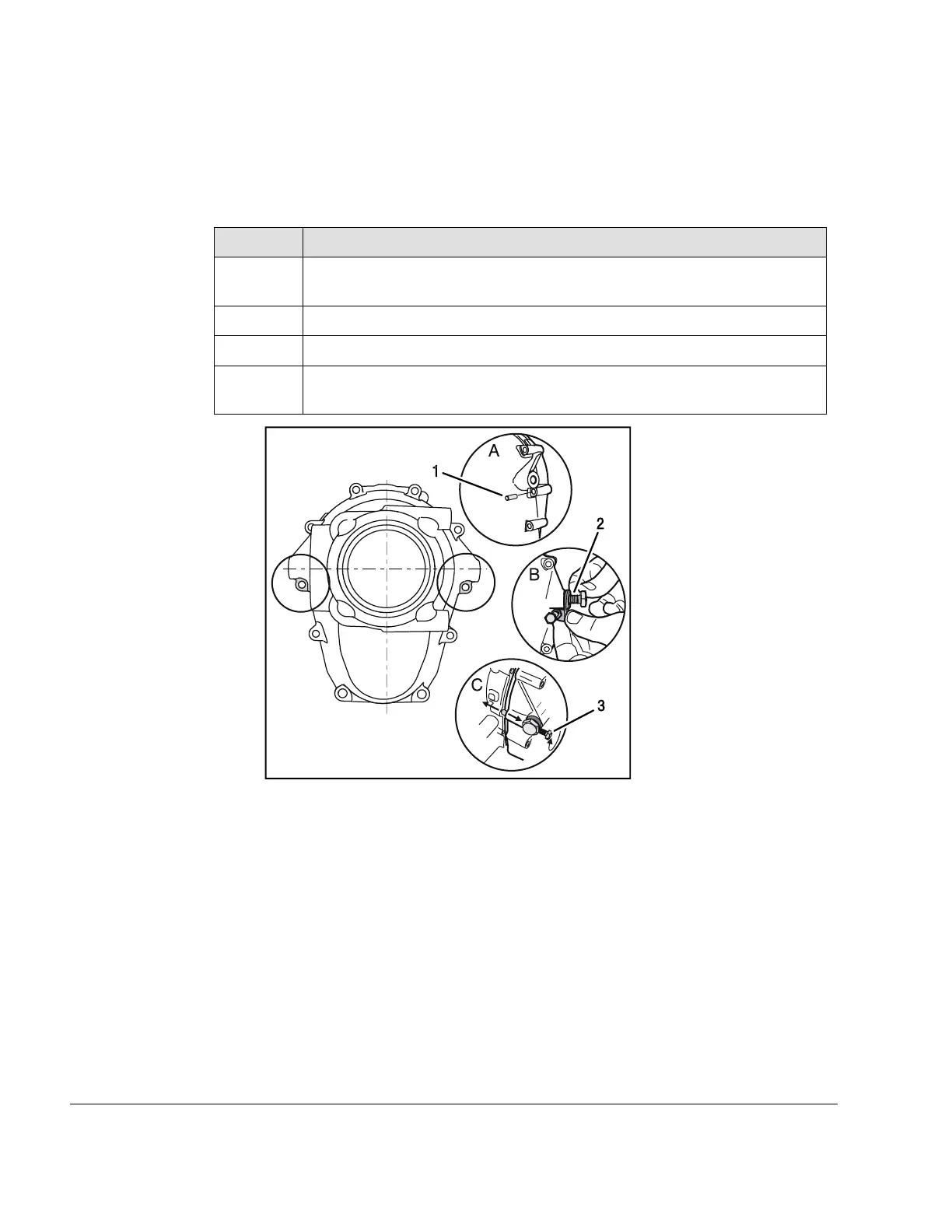

Figure 5.3
1
Dowel pin 8x20
2 Hex. screw M10x20
3 Hex. screw M6x40
05–50–00
Page 4
January 01 2020
Effectivity: 912 Series
Rev. 0
