PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware56
5.1.2 Silent Operation
Type 3560-B is silent, operating without fans at ambient temperatures up to 35°C (95°F).
Above this temperature, the fans start up, but can be switched of from the PULSE software
by selecting View, Fan and Battery Control and right-clicking on the frame.
5.1.3 Switches and Indicators
This section describes the features that are common to all versions of Type 3560-B. For
information specific to the different versions, please refer to Table 5.1.

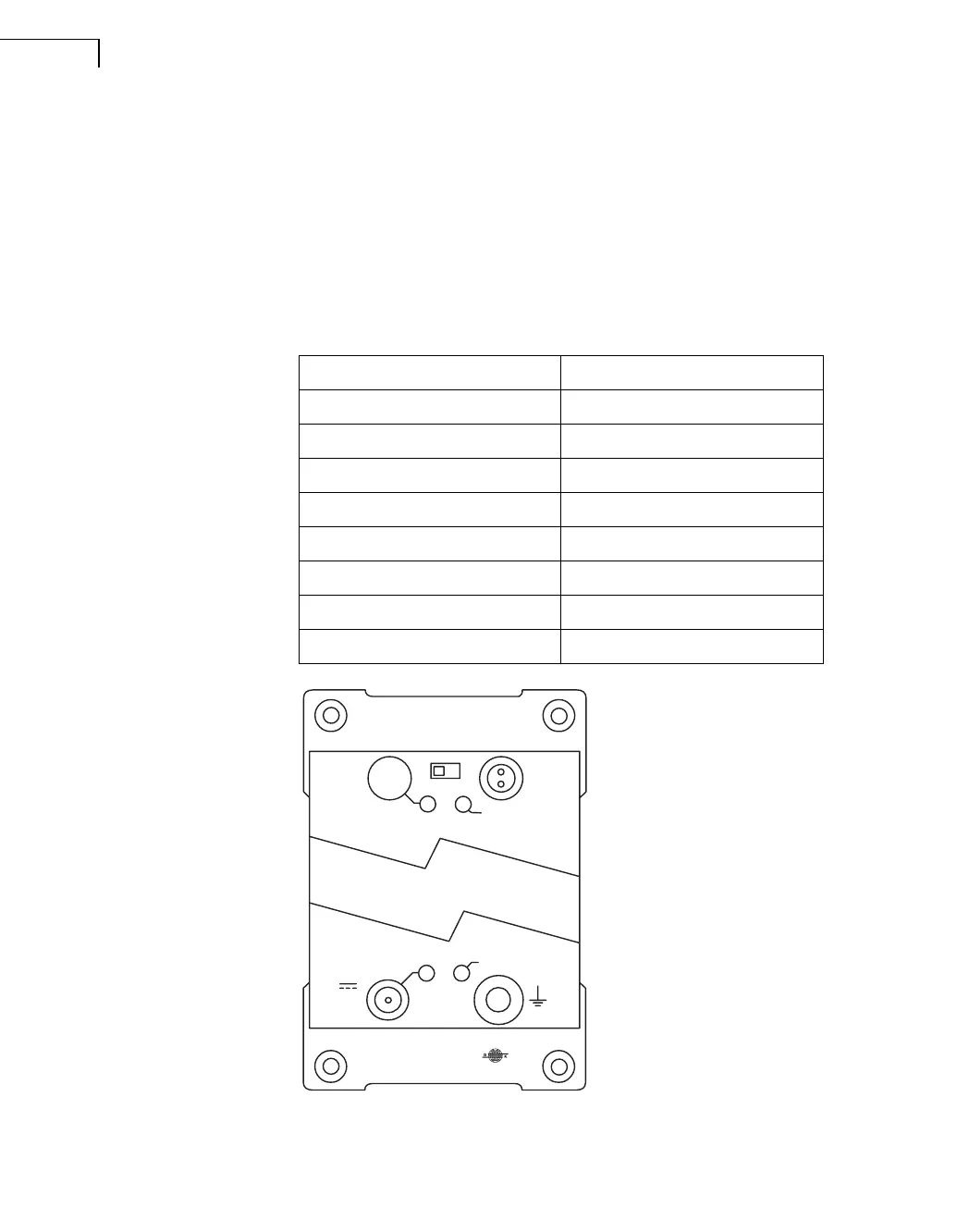

Fig.5.2
Upper and lower parts of
front panel of Type 3560-B,
common to all versions
Table 5.1
Type 3560-B front-ends
and their corresponding
Input/Output Controller
modules
Type 3560-B Input/Output Controller Module
3560-B-010 Type 7537, page 70
3560-B-020 Type 7537-A, page 70
3560-B-030 Type 7539, page 74
3560-B-040 Type 7539-A, page 74
3560-B-110 Type 7538, page 72
3560-B-120 Type 7538-A, page 72
3560-B-130 Type 7540, page 76
3560-B-140 Type 7540-A, page 76
On / Off
Battery status
Follow Ext. Pow
er
Ext Power
Battery status
10 to 32V
AUX
Power
Off On
Brüel & Kjær
040289
