Bruker AVANCE - Cryoprobe Prodigy System (Optional); Figure 3.3: Cryoprobe Prodigy with Pump & Control Unit and LM2 Tank

System Components
22 H157655_1_008
3.4 CryoProbe Prodigy System (Optional)
The CryoProbe Prodigy is a new CryoProbe generation designed specifically for AVANCE III
spectrometers. Costing significantly less than a conventional CryoProbe, the broadband
CryoProbe Prodigy uses nitrogen-cooled RF coils and preamplifiers to deliver a sensitivity
enhancement over room temperature (RT) probes of a factor of 2 to 3 for X-nuclei from
15
N to
31
P. The Prodigy package is comprised of the probe, a control unit (PCU) and a liquid
nitrogen vessel, thus siting is easy and no additional infrastructure is required.

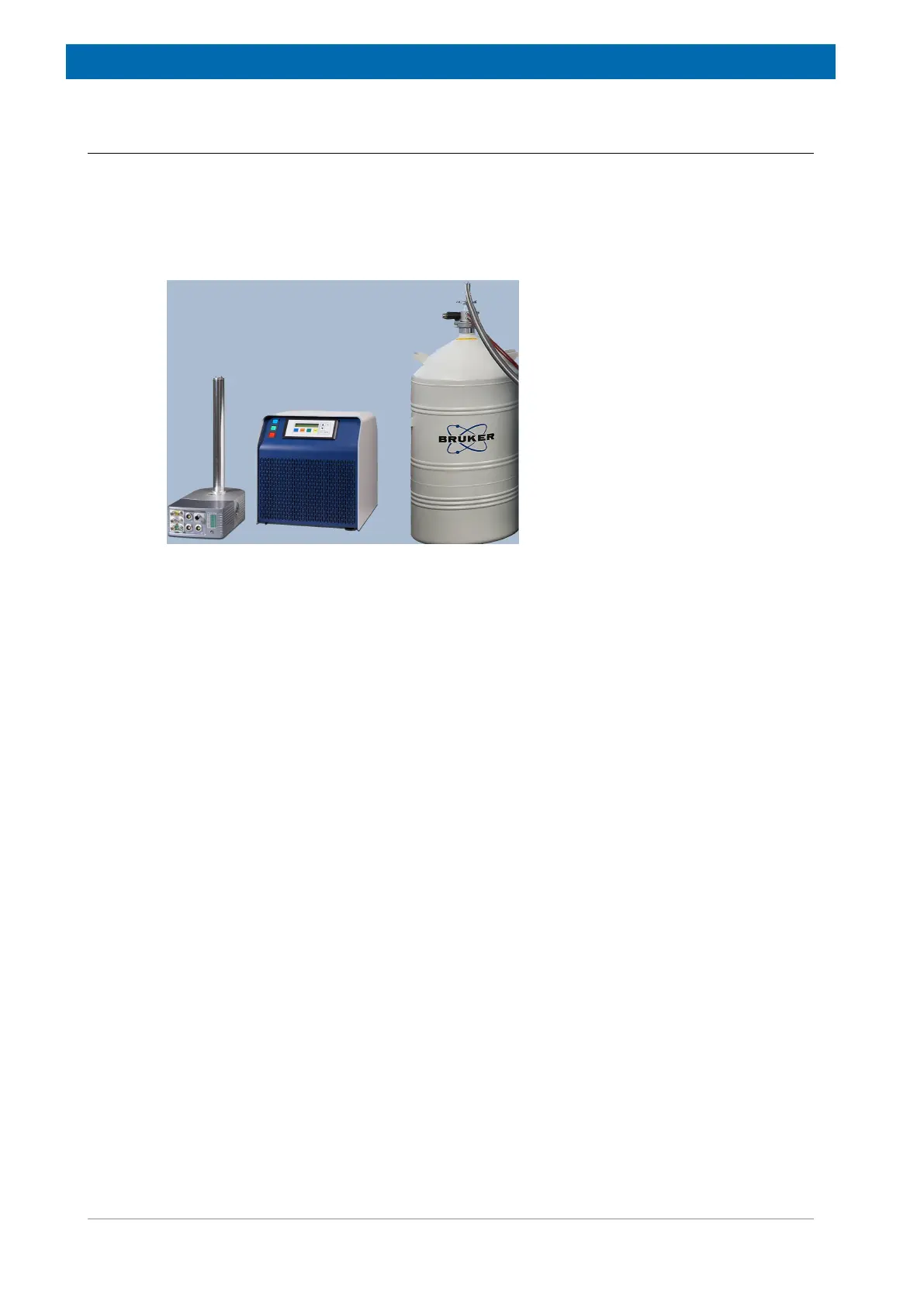

Figure3.3: CryoProbe Prodigy with Pump & Control Unit and LM2 Tank
