10.5 CryoProbe Prodigy System (Optional)
The CryoProbe Prodigy uses nitrogen-cooled RF coils and preamplifiers to deliver a
sensitivity enhancement over room temperature probes of a factor of 2 to 3. The Prodigy
package is comprised of:
• A CryoProbe Prodigy
• The Prodigy Control Unit (PCU)
• A liquid nitrogen vessel.

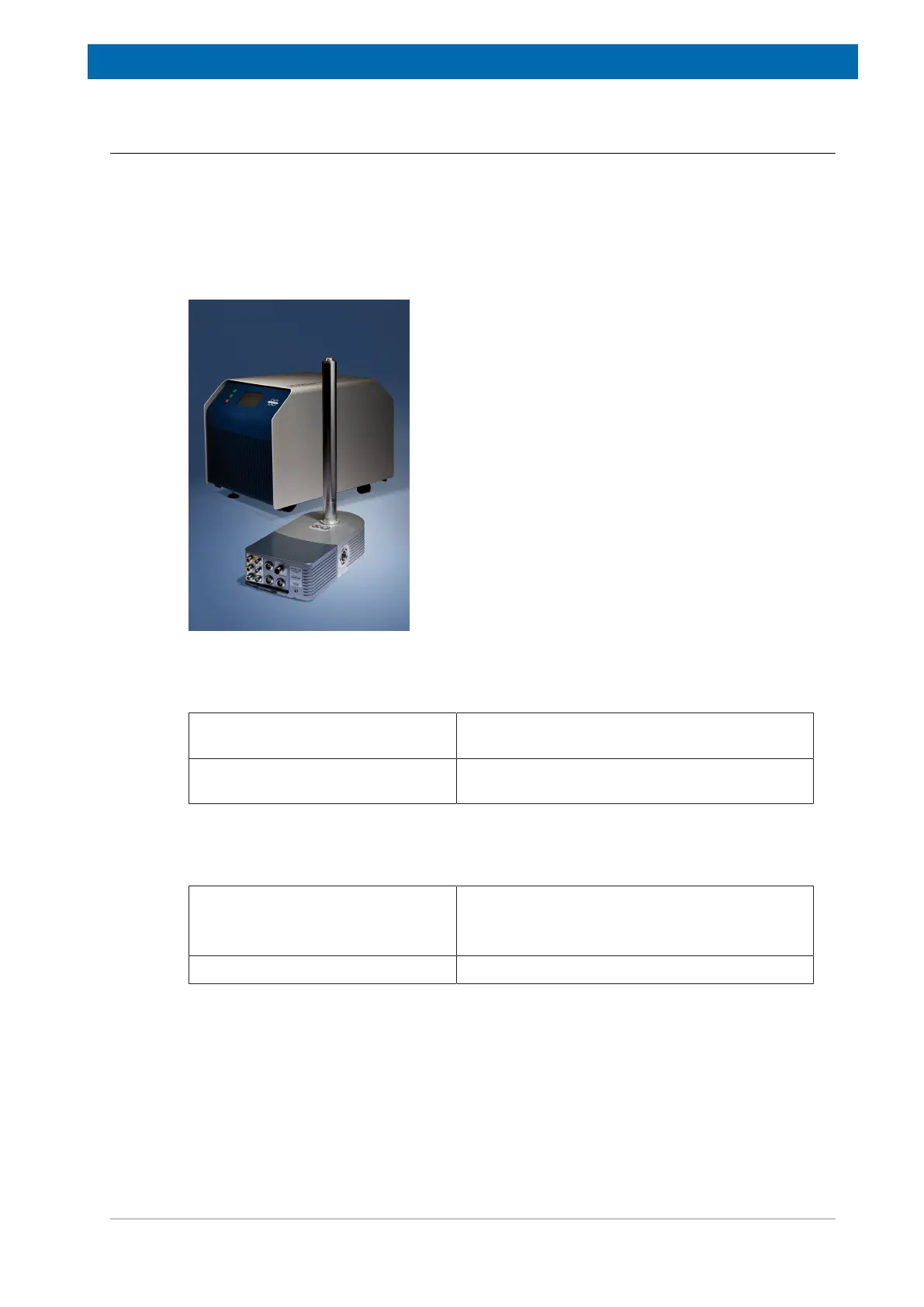

Figure10.7: CryoProbe Prodigy and Control Unit
Equipment Dimensions
Prodigy Unit 60 x 40 x 46 cm
3
(L x W x H); add 15 cm for rear
connections.
LN2 Dewar 50 x 62 x 135 cm
3
(L x W x H); width includes
dewar handles.
Table10.5: Prodigy System Equipment Dimensions
Electrical Requirements
Prodigy Unit 100-120 VAC / 50-60 Hz / max. 10 A / max. 0.6
kW.
220-240 VAC / 50-60 Hz / max. 5 A / max. 0.6 kW.
Optional Weight Scale 100-120 VAC or 220-240 VAC / 50-60 Hz.
Table10.6: Prodigy System Electrical Requirements
