10.2.1.1 Helium Compressor - Indoor Water Cooled
• Requires chilled water source (supplied by customer) with a flow and temperature within
the specified admissible ranges shown in the plots below. It is important that not only the
temperature stays below the maximum temperature threshold but also the flow is not
greater than the upper threshold shown. Caution: Do not use demineralized or deionized
water.
• The water supply and return lines to the He compressor should be fitted with temperature,
flow, and pressure gauges that are visible. The water hoses from the water lines to the He
compressor should be 3/4" in size. These hoses are not supplied with the CryoProbe
system, and are to be provided by the customer.
• It is recommended to isolate the cooling water loop for the He compressor from the
building water system by using either a refrigerated chiller or a water-water heat
exchanger. If building cooling water is not available, an air-cooled indoor or outdoor chiller
may be used.

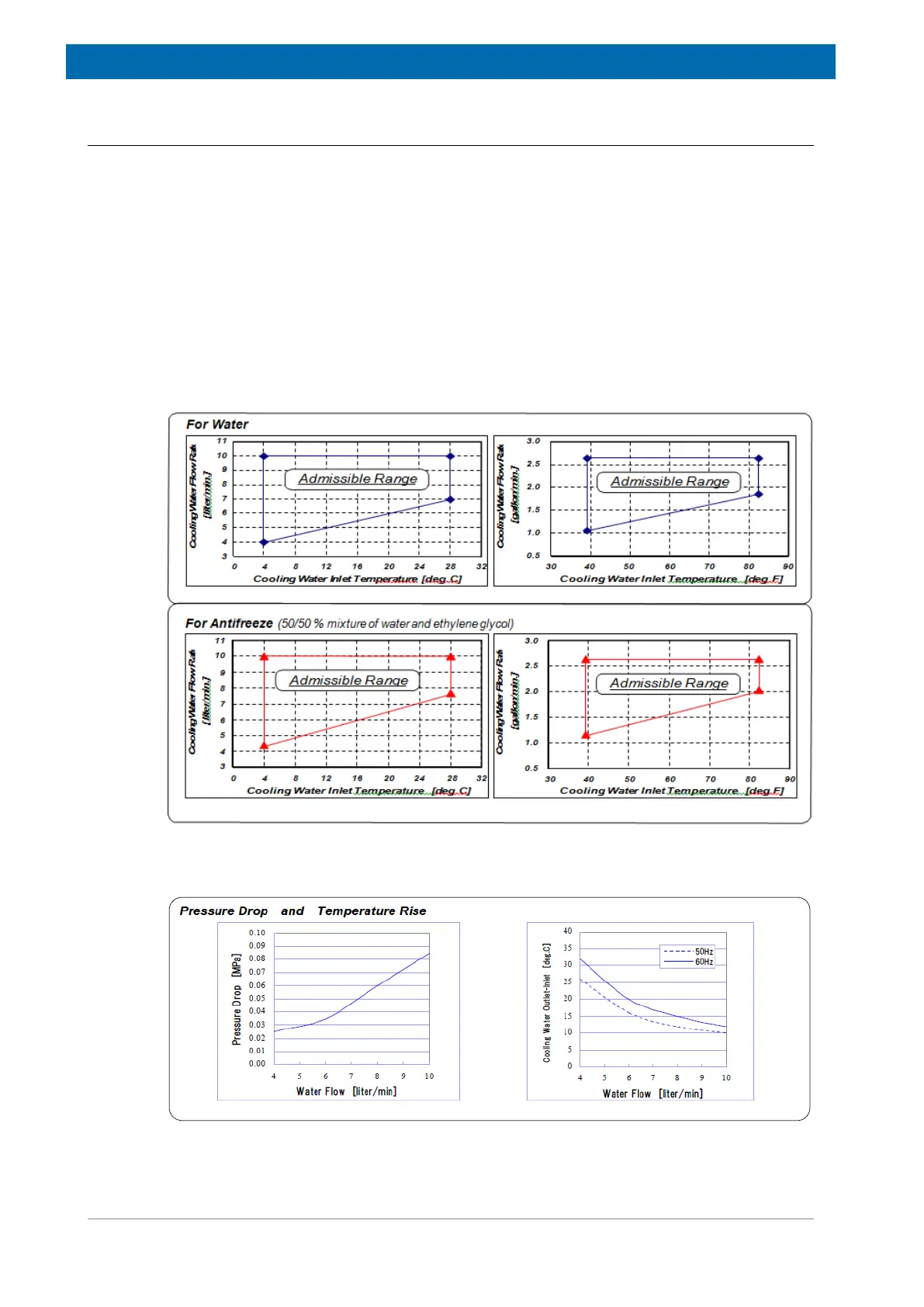

Figure10.2: Admissible Ranges for the Temperature and Flow of the Cooling Water.
Figure10.3: Cooling Water Typical Flow Characteristics
