Floor Plan
H157655_1_008 75
Magnet Dimensions and Mass
The values in the following table correspond to the following figure:

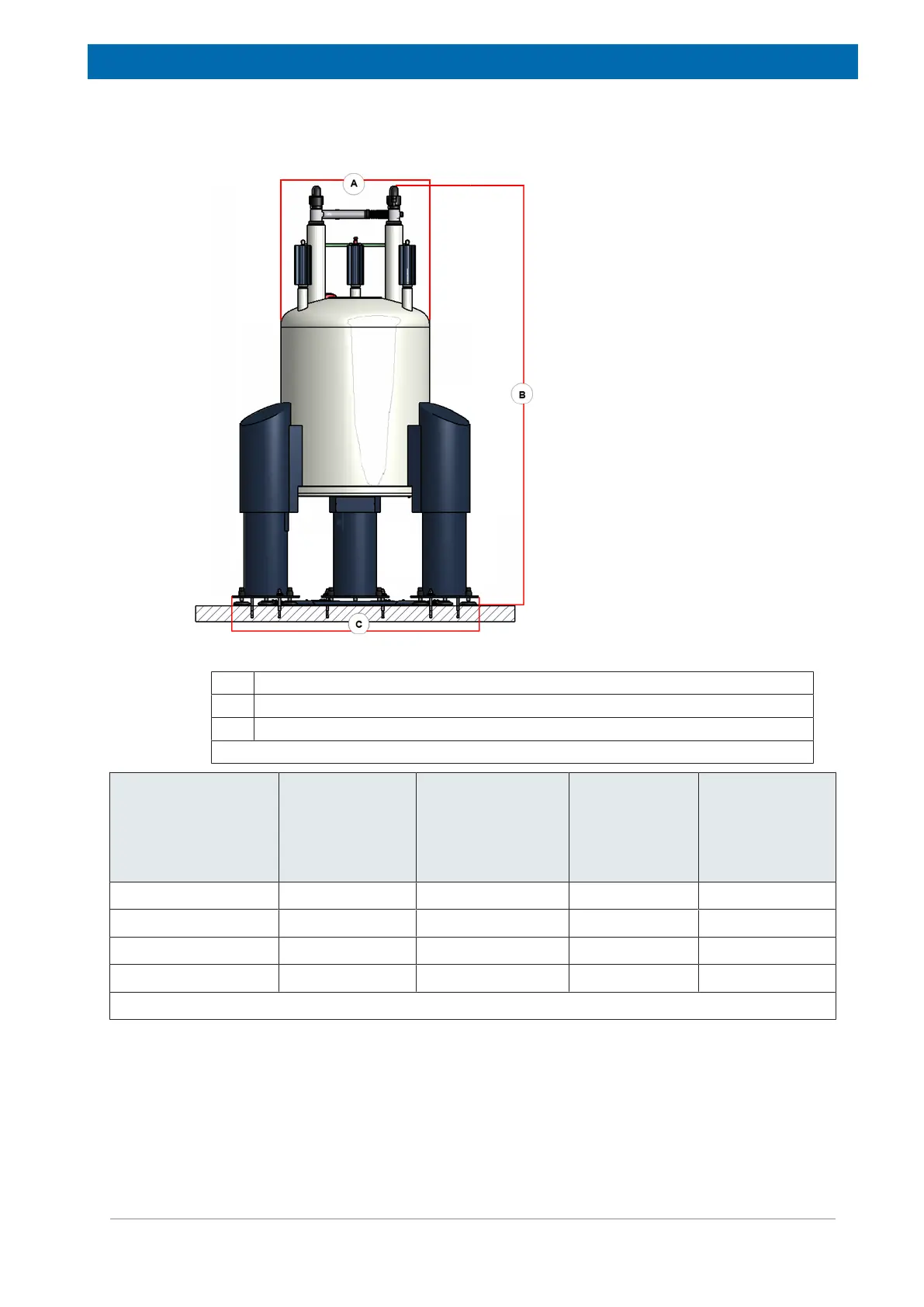

Figure9.2: Magnet Dimensions
A. Maximum magnet diameter
B. Magnet height from the floor, including stand.
C. Overall footprint diameter
Refer to the Magnet Dimensions and Total Weights table for the values of A, B, and C.
Magnet Type A
Maximum
Magnet
Diameter
(m)
B
Magnet Height
from the Floor
Including Stand
(m)
C
Overall
Footprint
Diameter
(m
2
)
Total Magnet
Weight incl.
Stand &
Cryogens
(kg)*
400/54 Ascend Aeon 1.46 2.27 1.70 ~640
500/54 Ascend Aeon 1.46 2.27 1.70 ~740
600/54 Ascend Aeon 0.95 2.61 1.98 ~1060
700/54 Ascend Aeon 0.95 2.61 1.98 ~1360
* With standard magnet stand, the weight with optional stands will vary.
Table9.2: Magnet Dimensions and Weight: Standard Bore 54 mm
