System description
capable of stand-alone operation, the CryoPlatform is fully integrated into the
A
VANCE spectrometer system.
A CryoPlatform (Figure 3.2.
) consists of CryoProbe Mounting Hardware at the
magnet, a CryoCooling Unit with an integrated He Transferline to the CryoProbe,
a Transferline Support, a separate He Compressor with water- or air-cooling,
Flexlines between He Compressor and CryoCooling Unit, a He Regulator on a He
steel-cylinder, an interface cable for the VT unit, and an optional magnet stand
modification for certain magnet types.
Not considered part of the ‘CryoPlatform’ are the CryoProbe, the cryo-compatible
HPPR CRP, the He steel-cylinder, the Gradient Filter Box, and an optional water
chiller.
Mounting Hardware 3.2.1
A special fixture must be mounted to the lower RT flange of the magnet bore to
carry the weight of the CryoProbe. The Mounting Hardware is attached to the
magnet flange with an interface plate which replaces the lower shim system at-
He Regulator
He Compressor
Transferline Support
CryoCooling Unit
Push buttons for
warm-up / cool-down
Magnet
HPPR CRP
He Transferline
CryoProbe
Vacuum bellows
Magnet stand
pillar brace
He Hose
He steel-cylinder

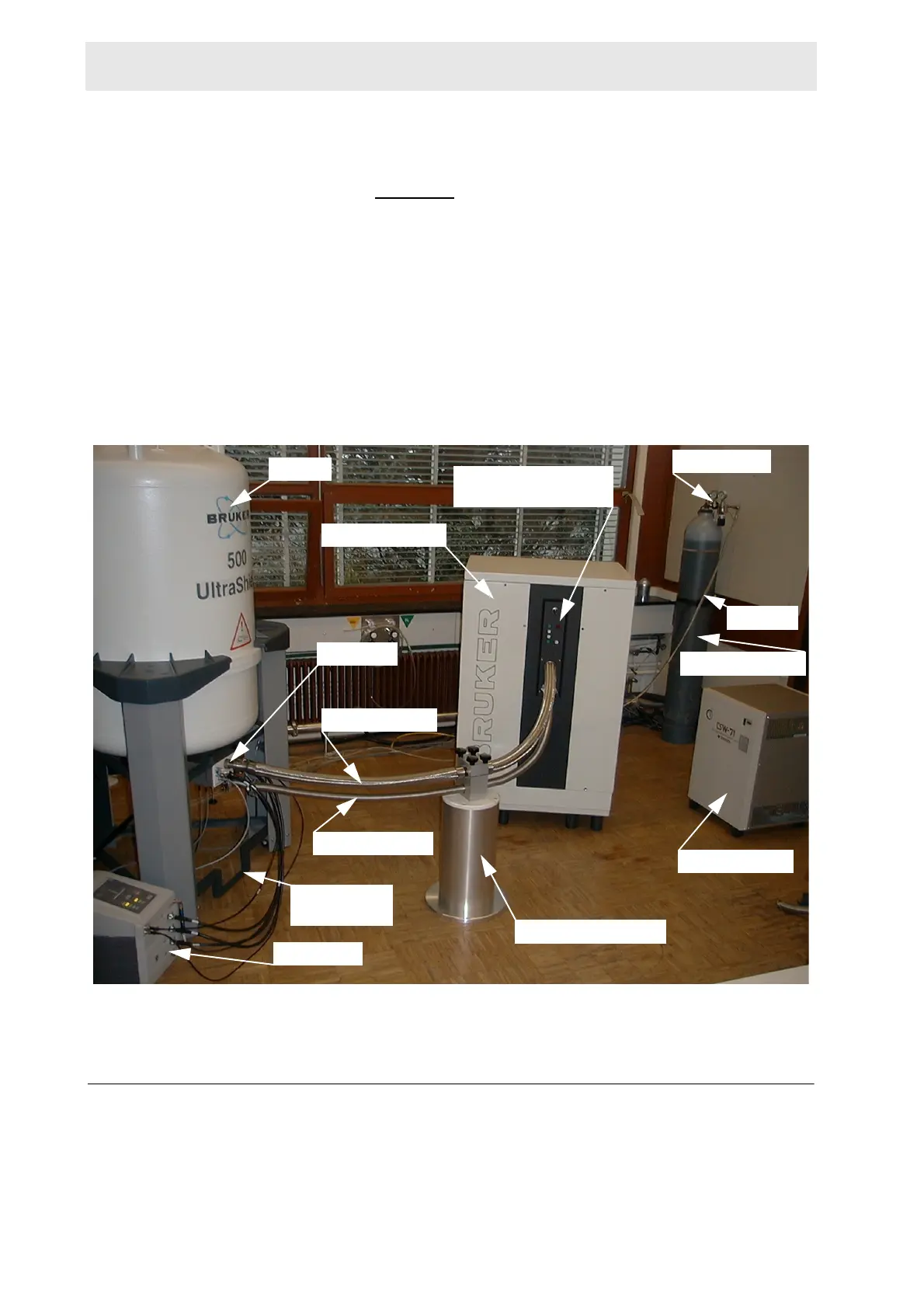

Figure 3.2. A CryoPlatform™
