Connecting
CryoProbe User Manual BRUKER 37 (107)
j.4 Mount the Vacuum Adapter to the CryoProbe bottom such that it
points to the front. Connect the vacuum tube.
j.5 Push in the actuator screw of the Vacuum Adapter (black handle) in as
far as it will go (Figure 4.10.
).
j.6 Turn the actuator screw clockwise as seen from the bottom. Its thread
must grip into the thread of the CryoProbe’s vacuum plug. Continue
gently until the stop is reached but do not force it into the stop.

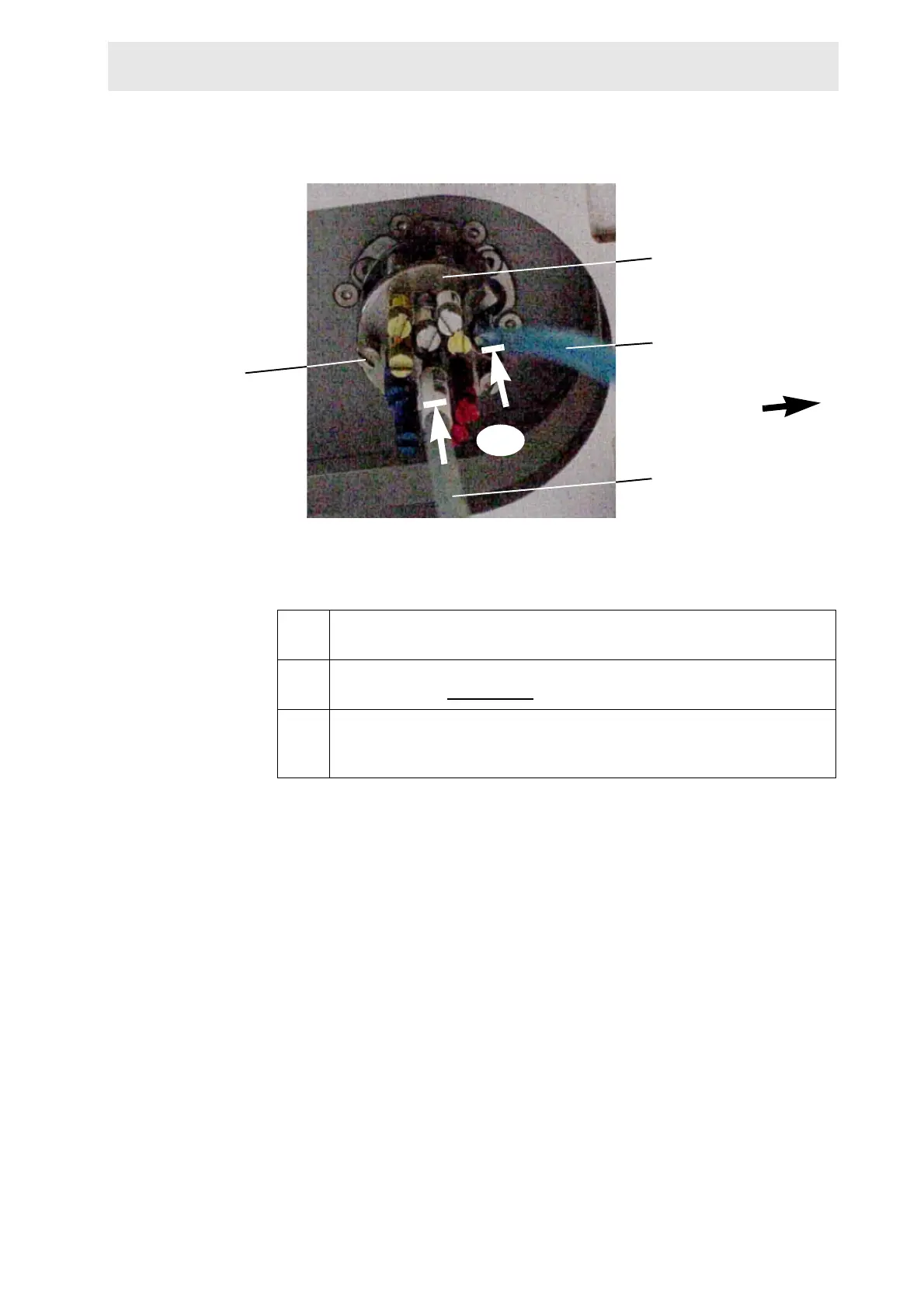

Figure 4.9. Connecting VT sensor cable and VT hose (bottom view)
VT hose
VT sensor cable
CryoProbe
front
Tuning Adapter
one of three
fixing screws
j.3
