6.
WARNING!
Toxic mercury vapors could escape if the UV
lamp inside the stainless steel pipe is dam-
aged!
Remove the plastic Y piece (Fig. 68/1) from the stainless
steel pipe and carefully clean it with the cleaning brush.
7. Reattach the pump hoses to the stainless steel pipe.
Ensure that the pump hoses fit securely. Other-
wise water could leak out.
1. The lime transforming cartridge (Fig. 69/1) is located on the
right-hand side between the water supply and the center
plate. To remove the cartridge, first remove the evaporation
filter from the retaining lugs (Fig. 69/3) and tilt to the side.
2. Remove the pump hoses (Fig. 69/ 2) and remove the lime
transforming cartridge.

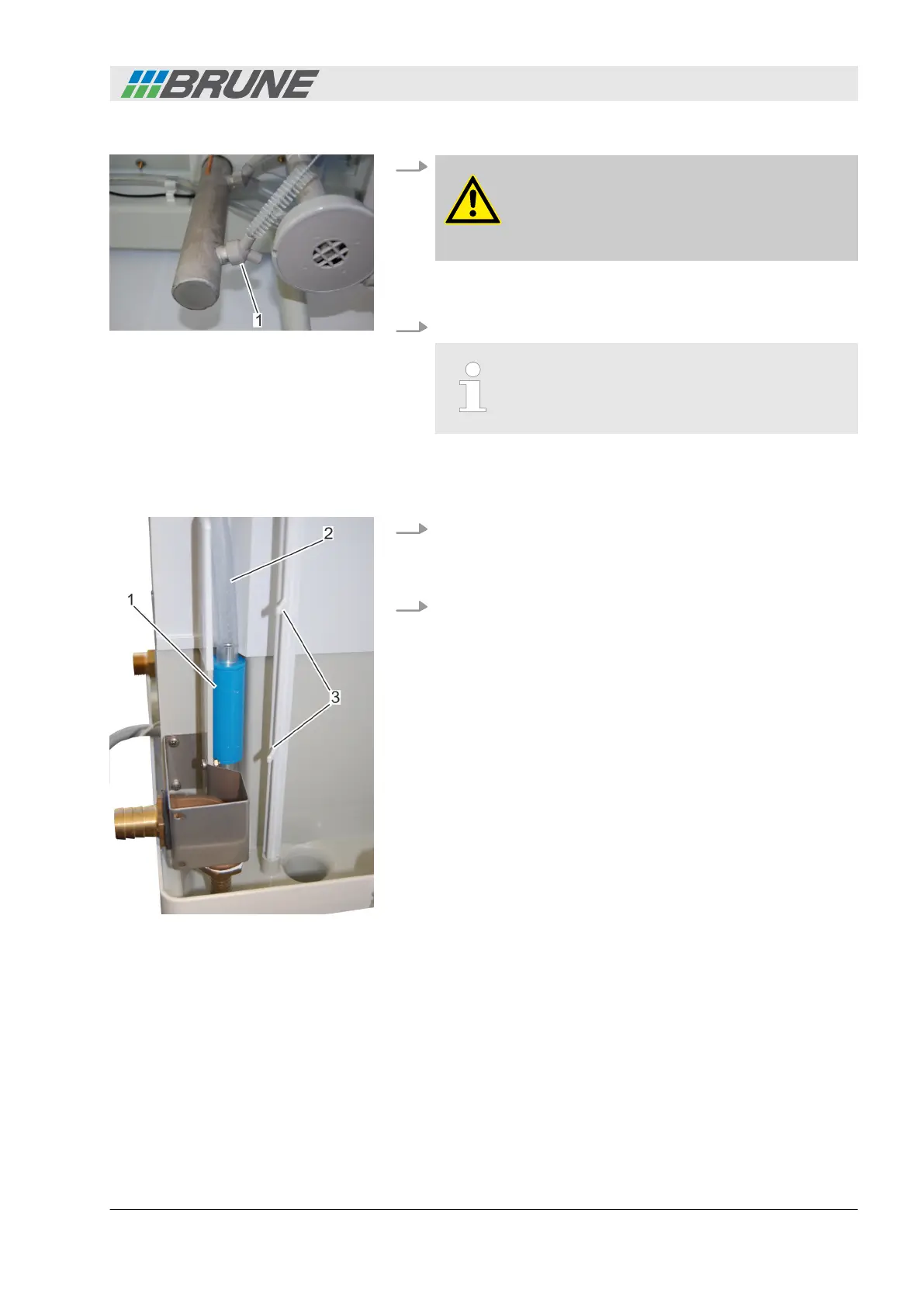

Fig. 68: Cleaning the stainless steel
pipe
Cleaning the lime transforming car-
tridge
Fig. 69: Lime transforming cartridge
Accessories
Evaporation Humidifier B500 Professional 69
