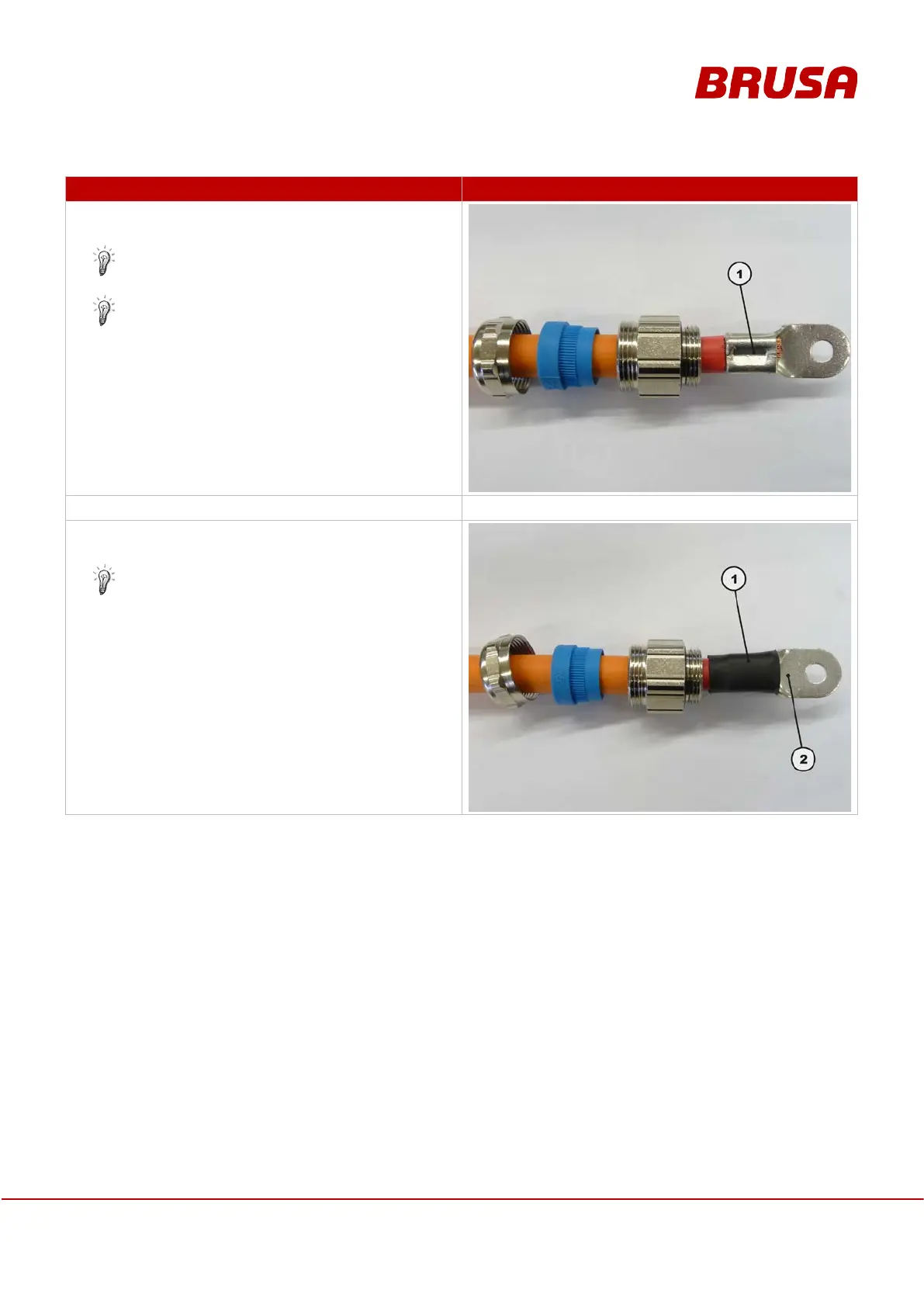

Assemble the cable lug (1) at the end of the cable.
No strands may protrude at the sides!
To assemble the cable lugs, an appropriate
crimping tool must be used! We recommend the
following crimping tool: Klauke ultra EK 120
UNV-L
Manually check the tight fit of the cable lug.
---
Attach a shrinking tube (1) over the cable lug (2).
The shrinking tube (1) must be attached to
prevent contact with the housing after
installation.
