10 T401S Indicator User Instructions
Introduction
2.1.1 Annunciators

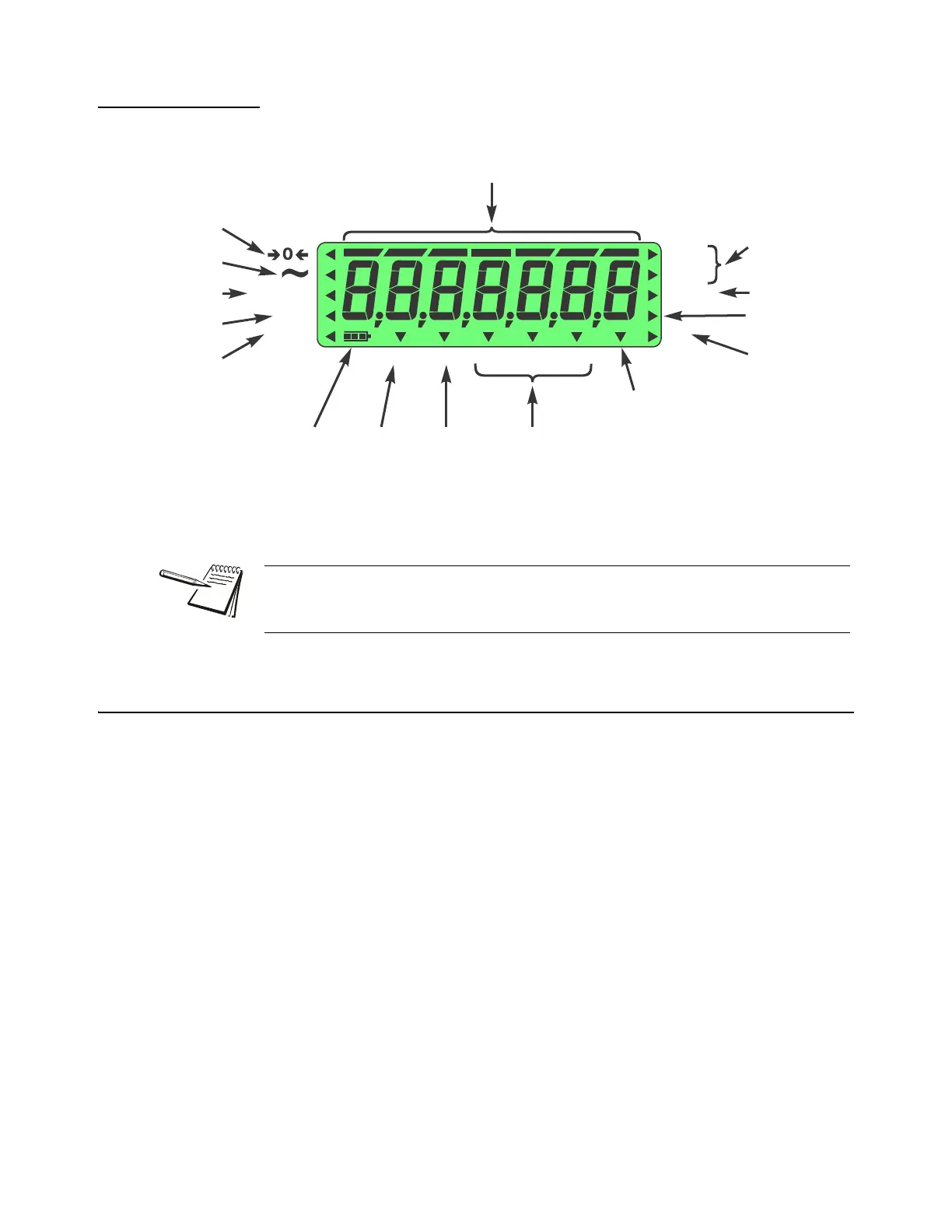

The annunciators on the display are shown and labeled in Figure 2.2.
Figure 2.2 Annunciators
The triangular annunciators will light during operation to inform the user of the weighing
mode, active unit of measure, etc.
2.2 Powering up the T401S
The indicator can be powered by AC or DC power. If AC powered, the indicator is
always ON as long as power is received. If DC powered, the ON/OFF key functions as
described in the section Front panel on page 9.
T401S power can be supplied by:
l AC power cord connected to a properly grounded outlet (100 VAC - 240 VAC,
50 or 60 Hz)
l Optional rechargeable battery pack
l DC power (12 to 36 VDC)
GROSS
NET
TARE
COUNTPRINT SP1 SP2 SP3
PT
Unit 2
Unit 1
TOTAL
Bargraph
Center-of-zero
Motion
Gross weight
Net weight
Tare weight
Print
Count
Battery
Status
Setpoints
Preset tare
Units of
measure
Total
Application
dependent
Active
network link
The unit of measure annunciators are labeled lb and kg but if different units are
chosen for Unit 1 and Unit 2 during configuration, a label should be applied over lb
and kg to show the correct units.
