IS3W/MTC Sensor Features
SMART MATRIX MTC 3 - 6

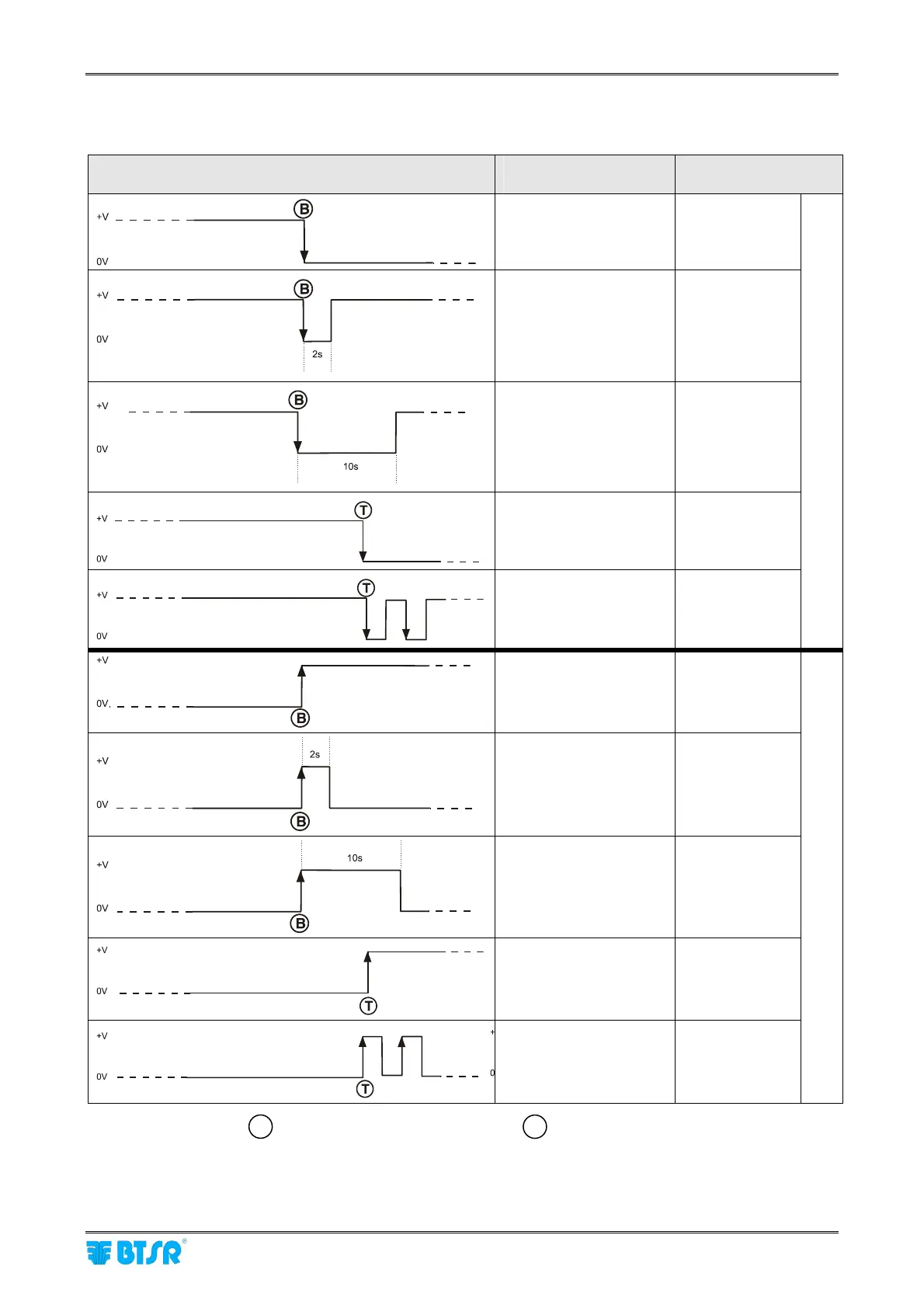

STOP Signal Timing
The following table shows in detail the possible STOP signal states within the various operating conditions.
STOP Signal Timing
Operating Condition
Signal Configuration
Failure (Yarn
Broken)
STOP TIME
CONT
Failure (Yarn
Broken)
STOP TIME
(2 sec.)
Failure (Yarn
Broken)
STOP TIME
(10 sec.)
Target Reached
STOP TYPE
CONT
Target Reached
STOP TYPE
SQUARE
Normally Open Contact STOP OUTPUT: NO
Failure (Yarn
Broken)
STOP TIME
CONT
Failure (Yarn
Broken)
STOP TIME
(2 sec.)
Failure (Yarn
Broken)
STOP TIME
(10 sec.)
Target Reached
STOP TYPE
CONT
Target Reached
STOP TYPE
SQUARE
Normally Closed Contact STOP OUTPUT: NC
B Yarn Broken T Target
