Buderus Logamatic EMS User Manual

Service menu RC35
Logamatic EMS RC35 user interface - Subject to technical modifications.54
11
11 Service menu RC35
6 720 640 224-07.1RS
SERVICE\DIAGNOSIS
B
functional test monitor value error message heating curve versions
FUNCT. TEST\BOILER
fuel valve ignition flame
SERVICE MENU
quick operation settings diagnosis servicing RESET

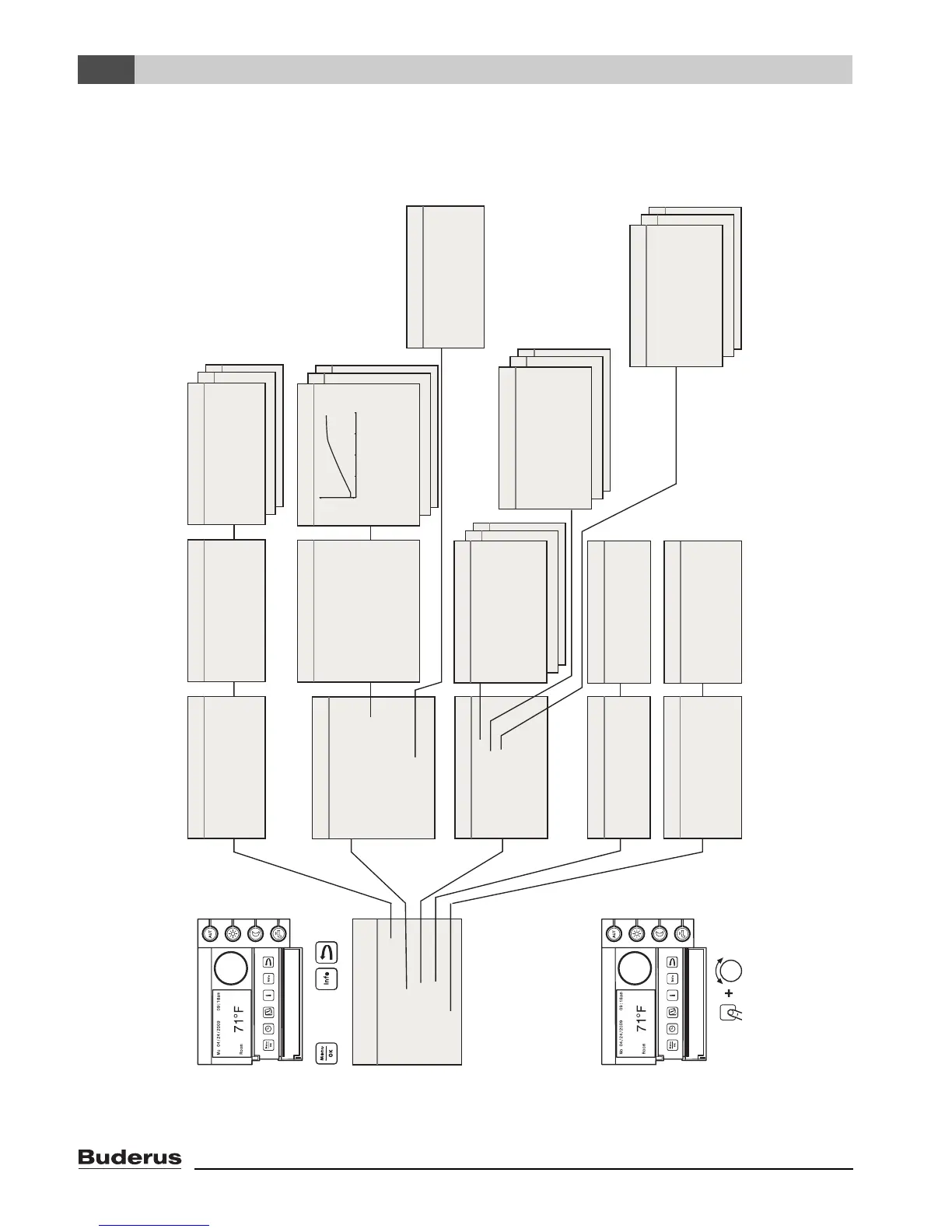

RC35 Service menu
SHORTCUT\BASIC SETUP
Which language should be used?
American
SHORTCUT\LL HEADER
Did you install a low loss header module?
yes / no
SHORTCUT\xxxxxxxxxxxxxxx
SERVICE\SETTINGS
B
system data boiler data heating zone 1 heating zone 2 etc. domestic hot water solar data RC35 calibration contact data
SETTINGS\HTG. ZONE 2 SETTINGS\HTG. ZONE 2
designtmp (-10)
131°F
max.supply temp 140°F min.supply temp 82°F room tmp.offset 5°F
SETTING\CONTACT
Name and phone # of heating contractor:
_ _ _ _ _ _ _ _ _ _ _
03001 - 007
_ _ _ _ _ _ _ _ _ _ _
MUSTERHEIZ GMBH
flame current
BURNER
B
OPEN
OFF
ON
31.5µA
ON
SERVICE MENU\SERVICE
B
service interval current messages RESET service
SERVICE MENU\RESET
B
factory default set fault list service message run time hours
SERVICE MENU\RESET
Confirm reseting all parameters to
no / yes
factory default.
SERVICE MENU\SERVICE
messages be triggered?
run time hrs date
MONITOR\BOILER
flame current boil.tmp. boiler pump outdoor temp.
31.5µA
131/118°F
75%
-27°F
calc.outd.tmp -1.8°F
FAULT\SYSTEM
since 10.09.09 for Outdoor sensor defective. A01
23:46pm
01d 12h 36min
800
1
e.g.
e.g.
e.g.
Setting parameters by pressing and turning!
190°F
70°F
Heating zone 1, # mix valves, remote controls DHW, charging pump, solar
How should service
Heating zone active, remote control, control mode, heating system, night setback, vacation setback, interrupt setback, heating curve, room influence
