Logamatic EMS RC35 user interface - Subject to technical modifications. 15
Operating basics
4

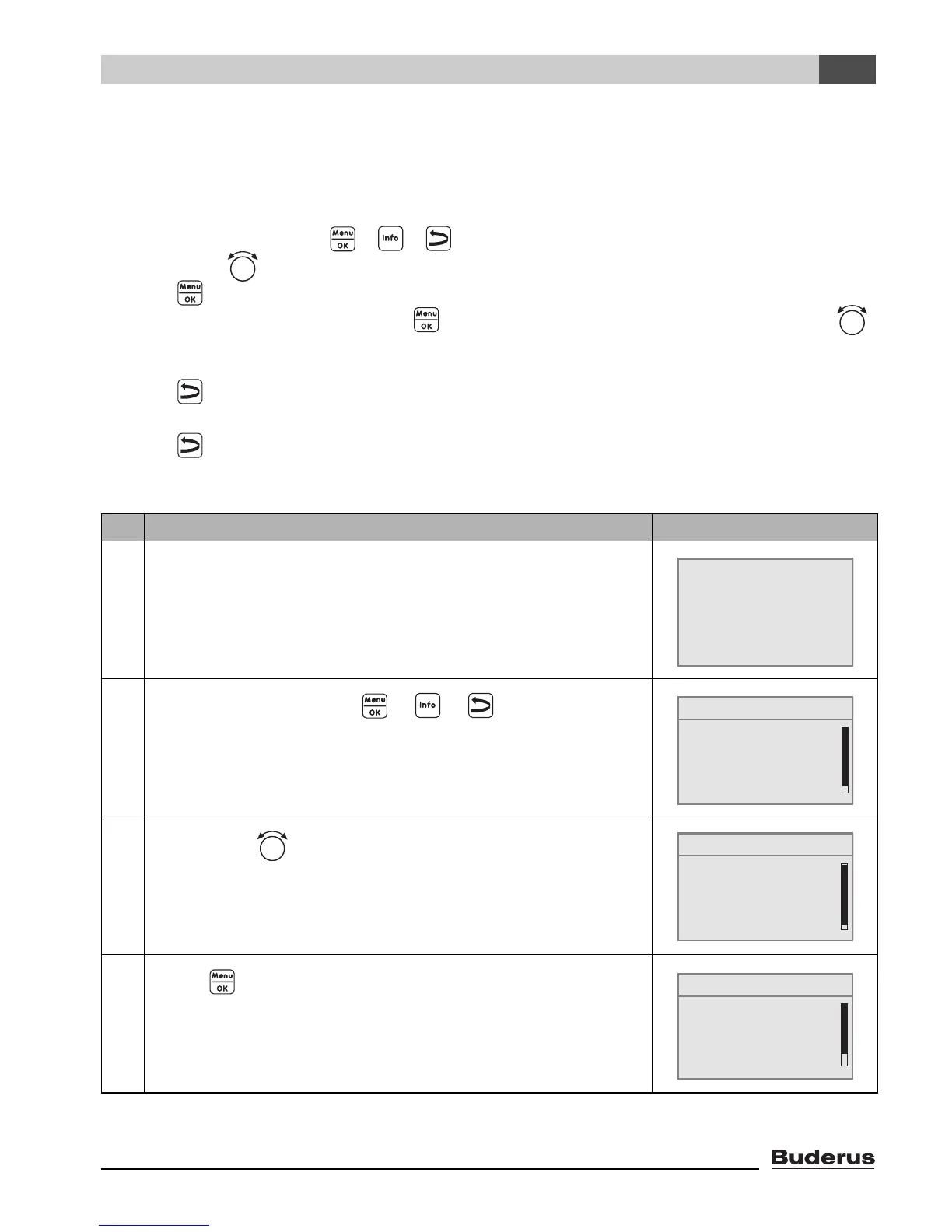

4.2 Introduction to the Service menu
The SERVICE MENU sets the system parameters. The Service menu also contains fault diagnosis,
for maintenance purposes, and performing a reset. The procedure for operation is always the same:
1. Open the cover (by pulling the recessed grip on the left).
2. Simultaneously press the + + buttons to open the SERVICE MENU.
3. Turn the dial to change the selected item (marked with).
4. Press to make your selection.
5. To change the value, hold down the button (the value starts flashing) and turn the dial
at the same time.
Release the button: the changed value is saved.
6. Press to go back one step.
-or-
7. Press several times or shut the cover to return to the default display.
Example: Setting the type of building (“delay” time)
Operating Instructions Result
1. Open the cover (by pulling the recessed grip on the left).
2.
Simultaneously press the + + buttons to open
the SERVICE MENU.
3.
Turn the dial counter-clockwise until settings is selected
(marked with).
4.
Press to confirm the selection.
The SERVICE\SETTINGS menu is opened.
Tab. 4 How to use the Service menu (example)
Fr 12/02/2009 10:20am
outdoor tmp. 30°F
71 ˚F
SERVICE MENU
B
quick operation
settings
diagnosis
servicing
SERVICE MENU
quick operation
B
settings
diagnosis
servicing
SERVICE\SETTINGS
B
system data
boiler data
domestic hot water
heating zone 1
