BYD PMW20 - HYDRAULIC DEVICE; 1.4 HYDRAULIC DEVICE

PMW20
20
PMW20
21

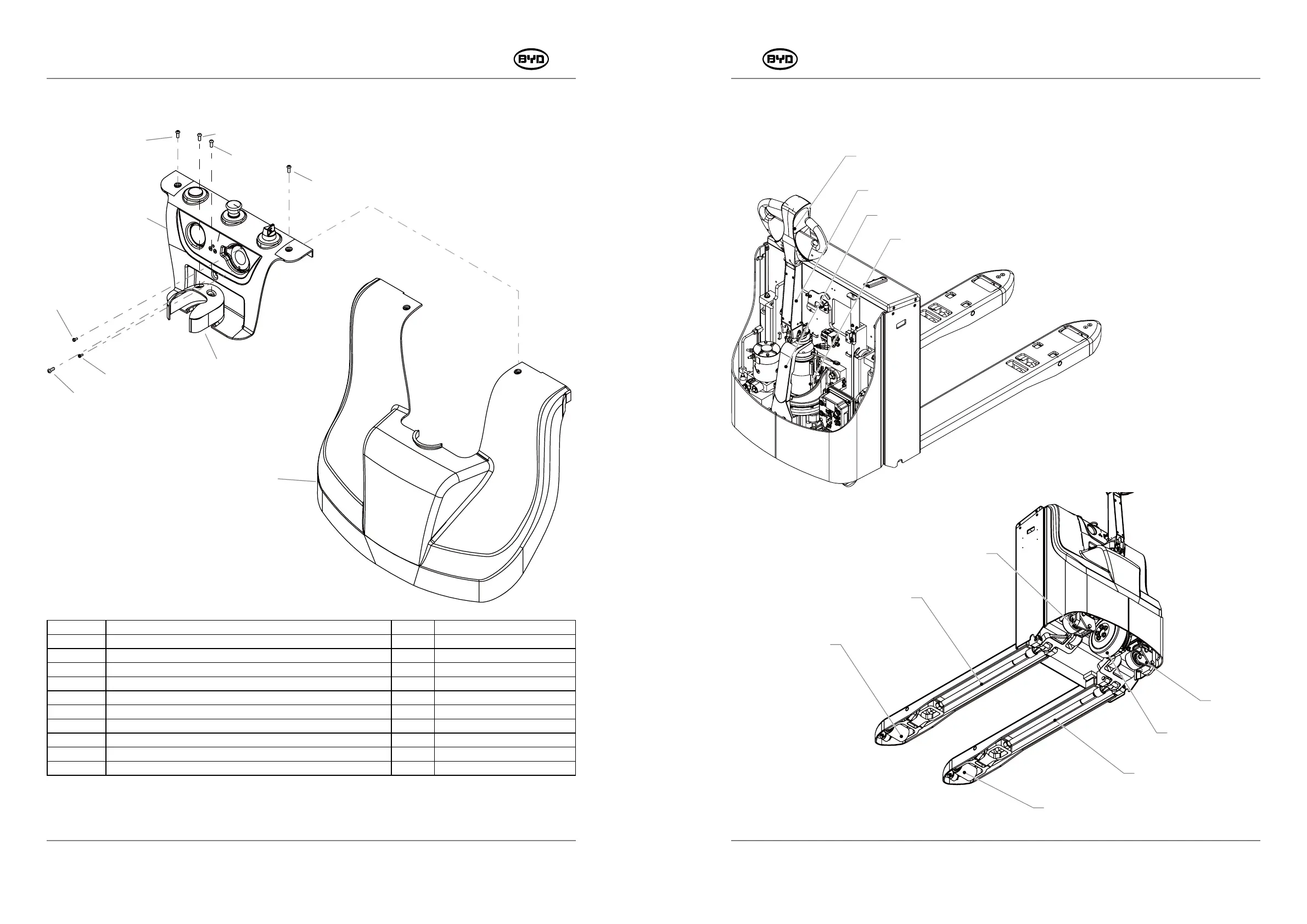

2. Remove the Guard of the Motor
MAINTAIN CHASSIS
This chapter will describe how to maintain chassis.
CODE PART NAME QTY OTHER INFORMATION
10 HEXAGON SOCKET COUNTERSUNK HEAD CAP SCREWS _M6×16
4
11 COVER PLATE OF THE BATTERY BOX
1
12 DOCUMENT CLAMP
1
13 CROSS RECESSED PAN HEAD SCREWS _M4×20
2
14 HEXAGON THIN NUTS
2
15 HEXAGON SOCKET PAN HEAD SCREW_M6×16
5
16 INSTRUMENT PANEL
1
17 GUARD OF TILLER
1
18 CROSS RECESSED PAN HEAD SCREWS _M4×10
2
19 GUARD PLATE OF THE REAR FORKLIFT BODY
1
2. Install
Follow steps in reverse order to install the guard.
15
15
15
15
17
18
19
15
16
18
SM-PMW202020001-EN
SM-PMW202020001-EN
Operating Handle Assembly
Welding Assembly Of Handle Lever
Steering-Connected Assembly
Drive Assembly
Support Wheel Assembly
Support Wheel Assembly
Lift Mechanism
Lift Mechanism
Balance Mechanism
Drive Wheel
Balance
Mechanism
