BYD PMW20 - DAILY MAINTENANCE; 2.1 TIME AND ITEMS

PMW20
25
PMW20
24
12
10
11

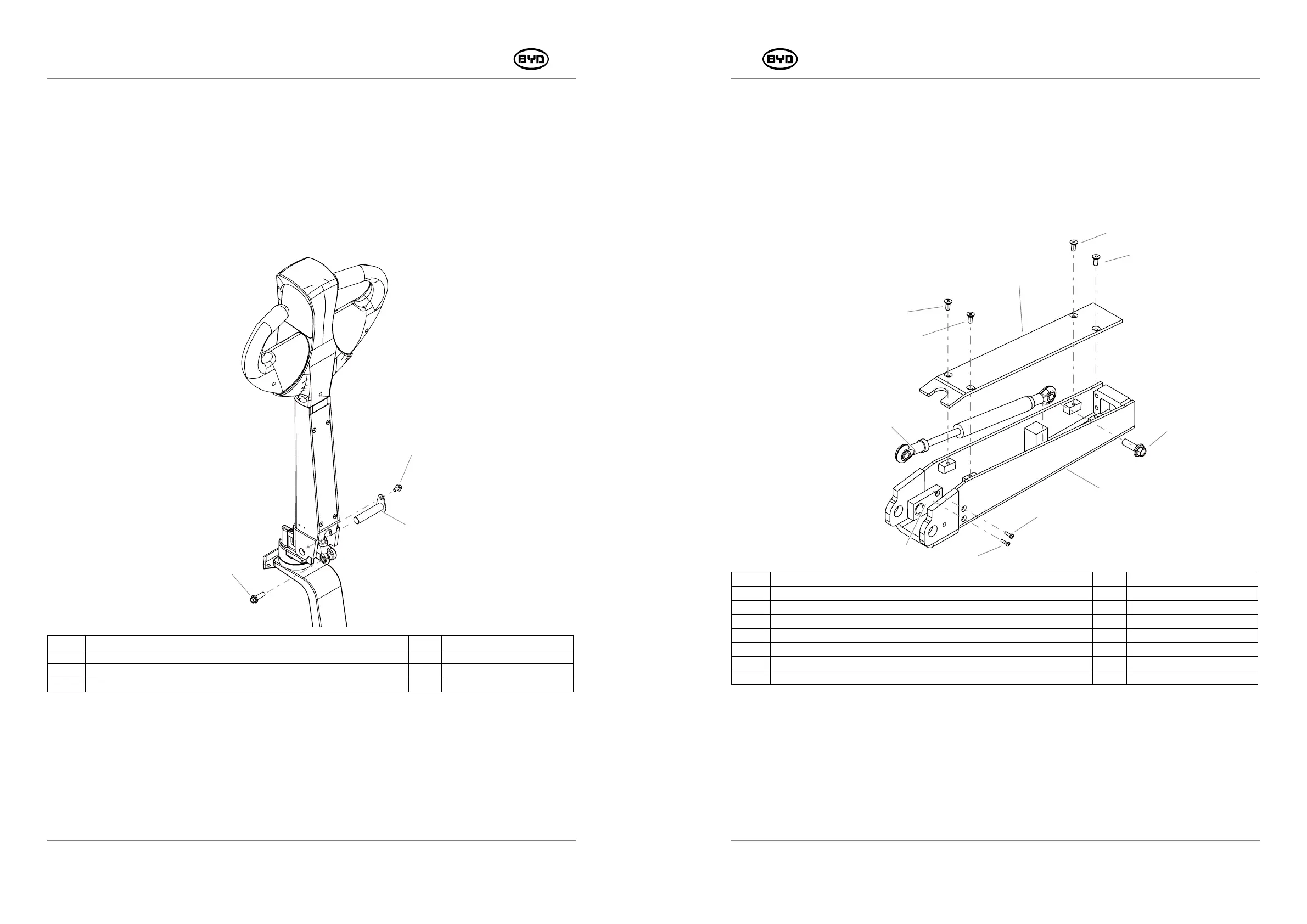

5.2 REMOVE AND INSTALL THE HANDLE LEVER
1. Remove
1) Remove the guard. Refer to 4.1 REMOVE AND INSTALL GUARD for details.
2) Remove the bolt (Code 10) with a 8mm open-end wrench or socket wrench and
then tap out the handle axle assembly (Code 11).
3) Remove the bolt (Code 12) on the air-actuated spring with a 13mm wrench and
then unplug the data cable connector.
CODE PART NAME QTY OTHER INFORMATION
10 HEXAGON FLANGE BOLT _M6×10 1
11 HANDLE AXLE ASSEMBLY 1
12 HEXAGON FLANGE BOLT _M8×25 1
2.Install
1) Plug the data cable and then install the handle axle assembly (Code 11).
2) Tighten the screw (Code 10).
3) Keep the handle vertical and then install the lower end of the air-actuated spring .
Tighten the bolt (Code 12).
4) After installation, check whether the handle can rotate freely.
5.3 REPLACE THE AIR-ACTUATED SPRING
1. Remove
1) Open the rear cover of the handle lever and remove the screw (Code 10) with a 3mm
Allen wrench.
2) Remove the bolt (Code 14) on the air-actuated spring with a 10mm open-end wrench.
3) Remove the air-actuated spring.
15
15
13
14
10
10
10
11
10
16
12
CODE PART NAME QTY OTHER INFORMATION
10
HEXAGON SOCKET COUNTERSUNK HEAD CAP SCREWS _M5×12
4
11 1
12 1
13 1
14 1
15 2
16 1
2. Install
1) Install the bolt (Code 14) on the air-actuated spring.
2) Tighten the screw (Code 10) after the upper and lower covers are closed.
3) Install the socket under the lower end of the air-actuated spring. Refer to 5.2.2.3 for
details.
4) Check the air-actuated spring after installation (Press the handle down and check
whether it springs when released).
SM-PMW202020001-EN
SM-PMW202020001-EN
REAR COVER OF THE HANDLE LEVER
AIR-ACTUATED SPRING
WELDING ASSEMBLY OF HANDLE LEVER
HEXAGON FLANGE BOLT_M8×25
CROSS RECESSED PAN HEAD SCREWS _M3×10
LIMIT SWITCH ON THE HANDLE
