3）Overload or Blockage
The overloaded machine and blocked oil tube will make the pressure of the system over
13.5Mp, wherein the overflow valve will be open to ensure the safety of the system.

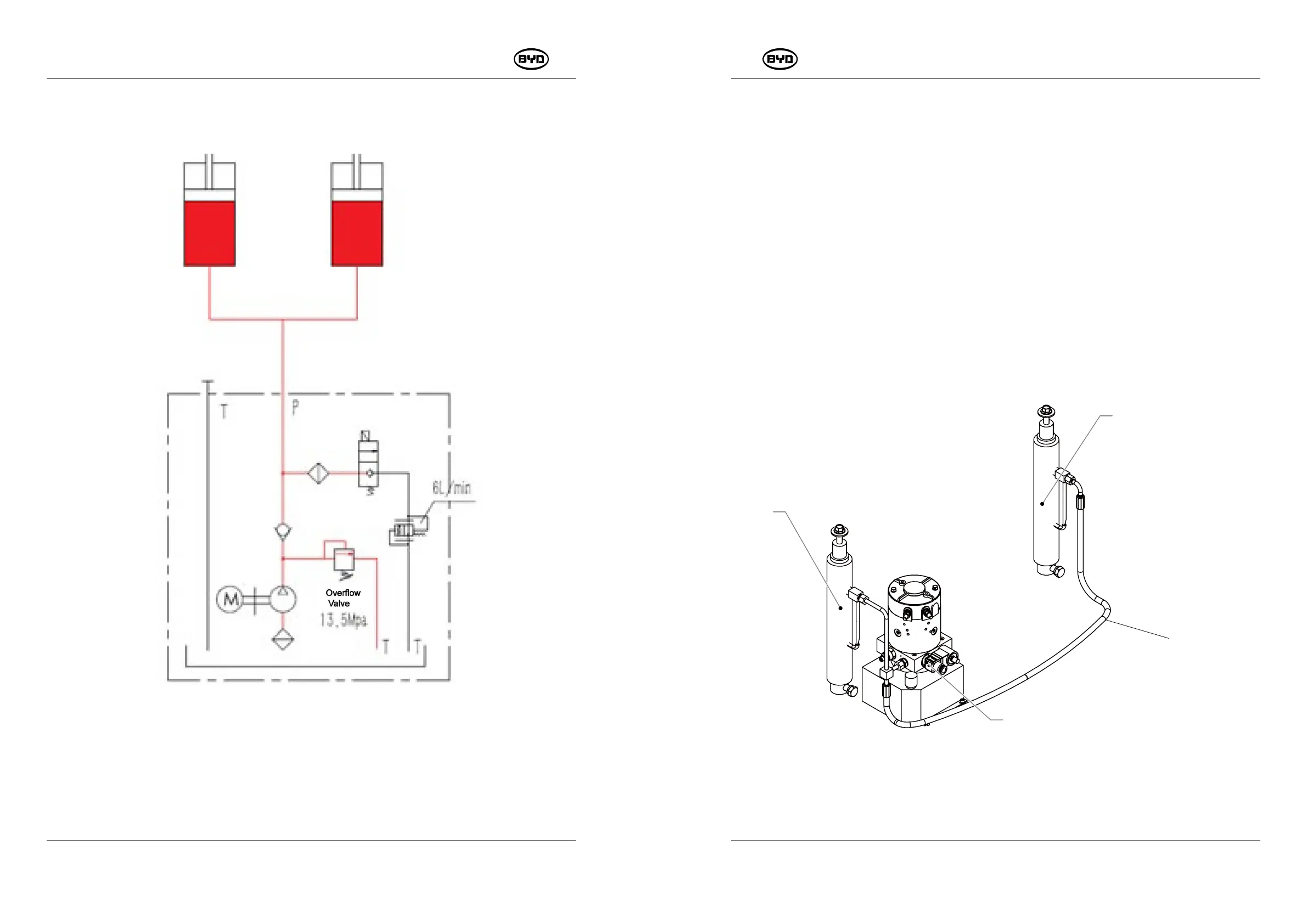

6.2 PARTS OF THE HYDRAULIC SYSTEM
The hydraulic system of the PMW20 forklift promotes the fork to move.
Main parts of the hydraulic system:
1) Hydraulic Power Unit
2) Lift Cylinder
3) Hydraulic Oil Tube
3.Hydraulic Oil
Tube
2. Lift Cylinder
1.Hydraulic Power Unit
2.Lift Cylinder
