PMW20
68
PMW20
69

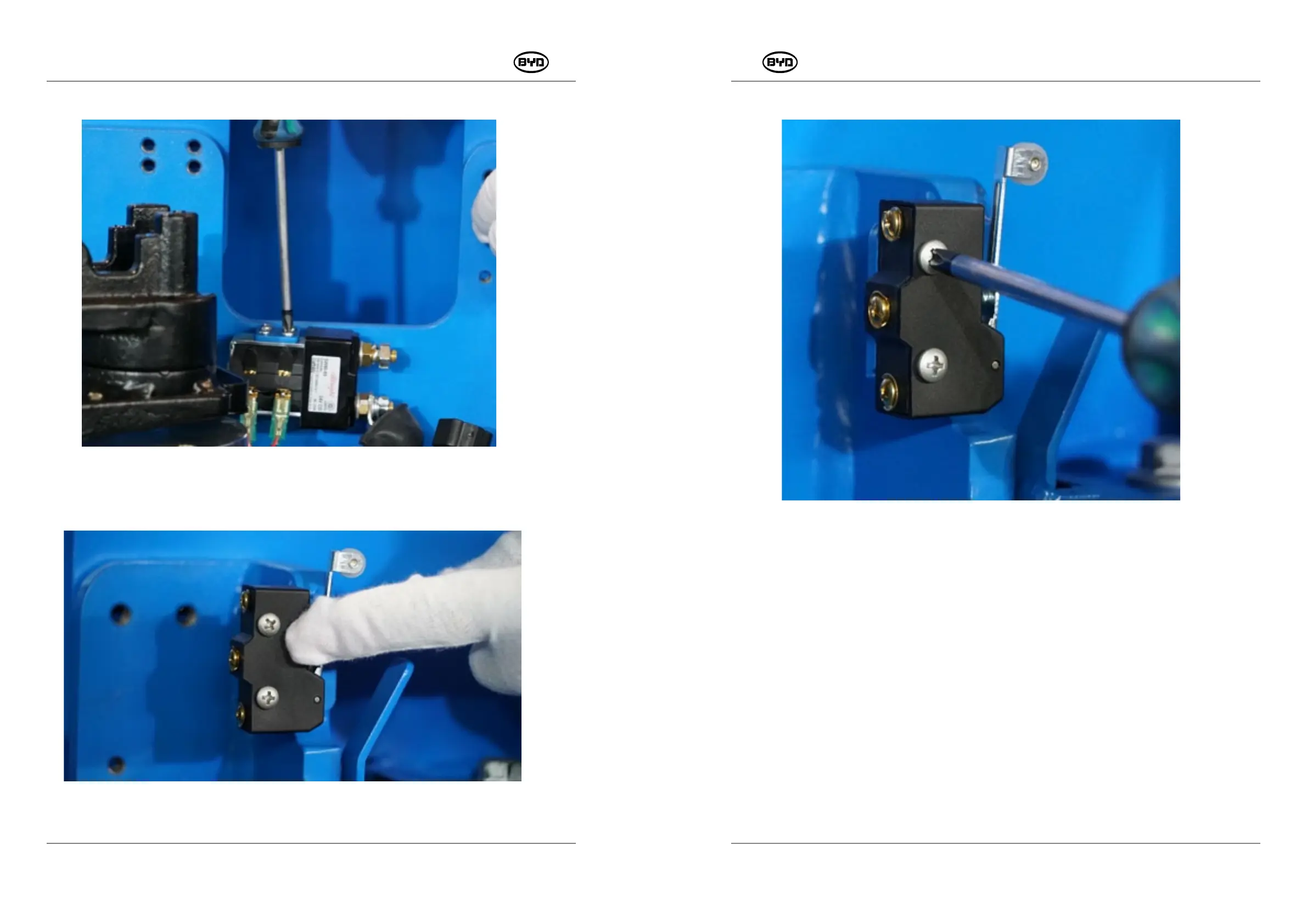

4）Remove the set screw with a cross screwdriver and take out the main contactor.
7.6 REMOVE THE LIMIT SWITCH
1）Remove the wire G09A/G09B with a cross screwdriver.
2）Remove the set screw with a cross screwdriver and take out the limit switch.
SM-PMW202020001-EN
SM-PMW202020001-EN
