PMW20
31
PMW20
30
1) Lift the rear of the forklift with a jack ,make it has room to operate, and then fill up a
solid piece of wood.
2) Unscrew the nut (Code 11) with the adjustable wrench and replace the drive wheels.
CODE PART NAME QTY OTHER INFORMATION
11 5 90 N-m
12 5
11
12
CODE PART NAME QTY OTHER INFORMATION
10
1
11
1
12
1
13
1
14
24
15
1
16
1
17
1
18
1
19
HEXAGON SOCKET HEAD CAP SCREWS M8X175
4
2.Install
1) Install the pivotal bearing of the reduction gearbox and the bracket of the reduction
gearbox. After the position of holes is adjusted, tighten the bolt (Code 14)
symmetrically.
2) Install the bolt (Code 14) for the pivotal bearing of the reduction gearbox and the
bracket of the reduction gearbox and tighten it.
3) Install the pivotal bearings of the motor and reduction gearbox. Install the seal ring
(Code 17) and then tighten the bolt (Code 19).

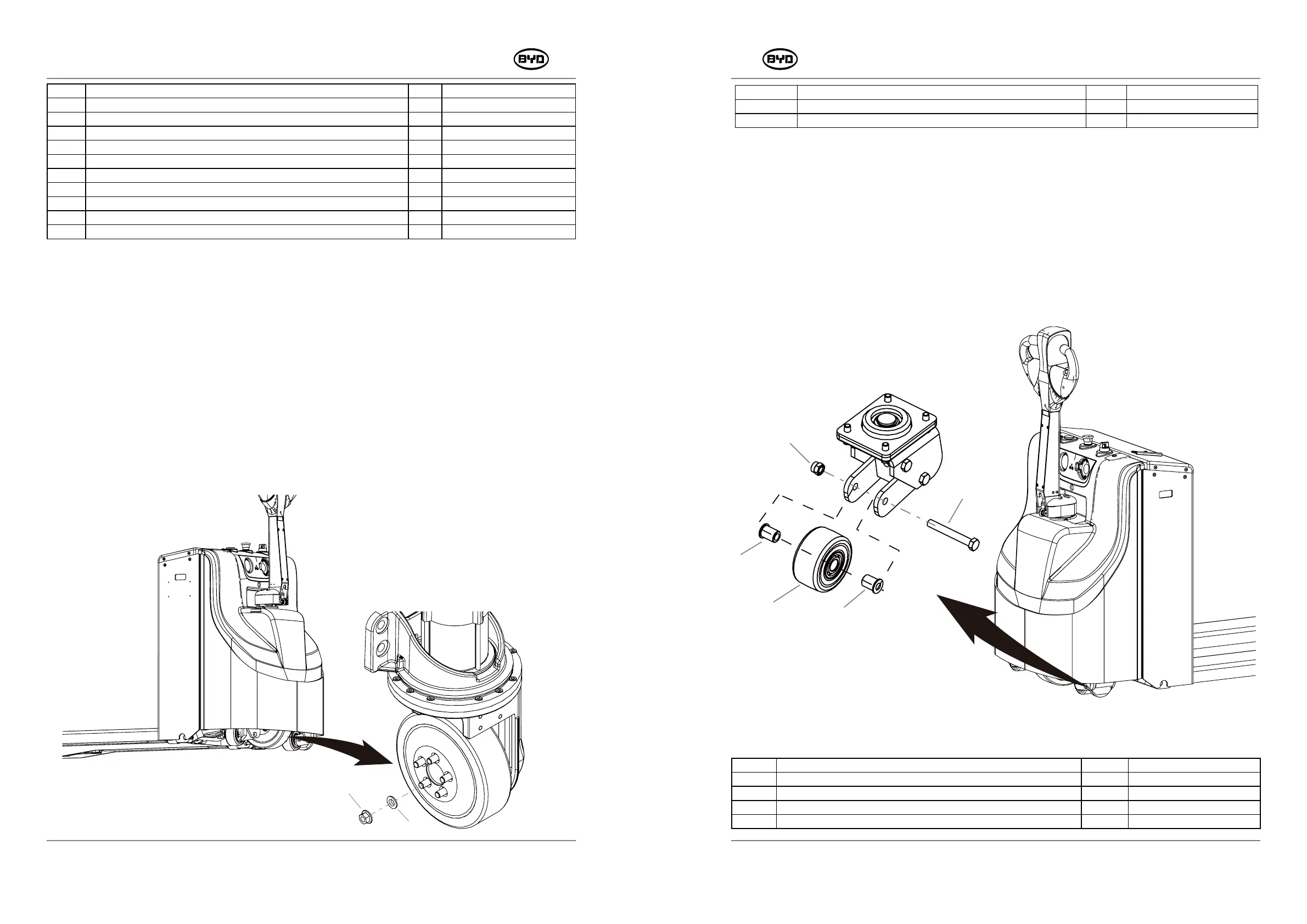

5.8 REPLACE BALANCE WHEELS
1) Lift the rear of the forklift with a jack ,make it has room to operate, and then fill up a
solid piece of wood.
2) Unscrew the nut (Code 10) with a 18mm open-end or socket wrench and take out
the bolt (Code 11) and the bushing (Code 12). Then replace the balance wheels.
3) Replace the balance wheel on the other side in the same way.
11
10
12
12
13
CODE PART NAME QTY OTHER INFORMATION
10 1
11 HEXAGON BOLT _M12X90 1
12 MOUNTING BUSHING ON THE BALANCE WHEEL 2
13
BALANCE WHEEL ASSEMBLY
1
SM-PMW202020001-EN
SM-PMW202020001-EN
MOTOR
LEVEL-ONE REDUCTION PINION
LOCK NUT
ENCODER
HEXAGON SOCKET HEAD CAP BOLTS M8X25
REDUCTION GEARBOX
TURNING BEARING OF THE REDUCTION GEARBOX
NITRILE RUBBER
FIXED SUPPORT OF THE REDUCTION GEARBOX
HEXAGON FLANGE NUT
SPHERICAL RESILIENT CUSHION
TYPE 1 NON-METALLIC INSERT, HEXAGON LOCK NUT
5.7 REPLACE DRIVE WHEELS
