8.6 BURNING PROCEDURES OF THE SERIAL PORT
1.AC-0 Program Burning
The burning way is applicable to the burning software ZpWinFlaher whose
ZAPI mode is AC-0.

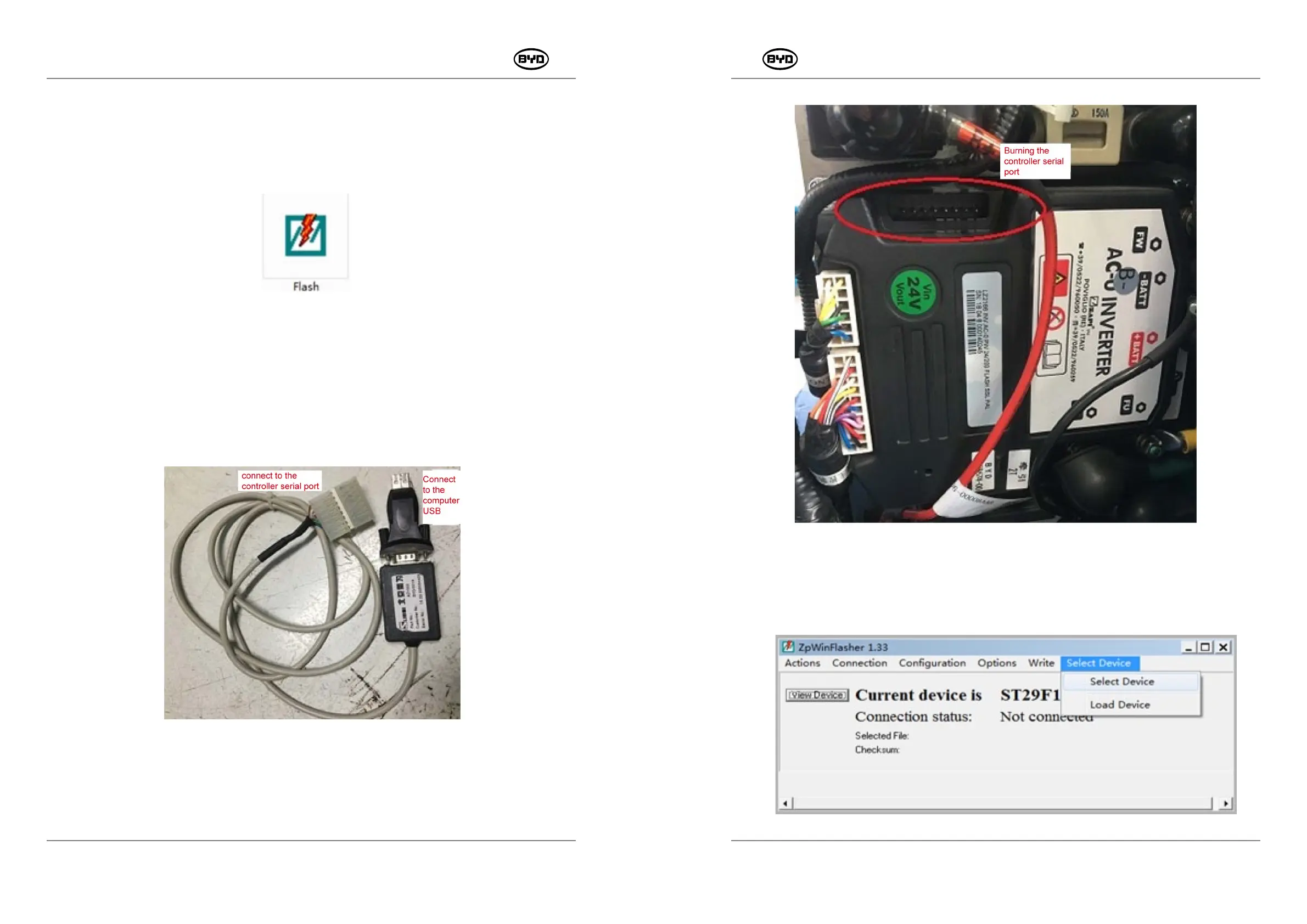

Burning Tool
Parts of the Forklift _ Serial Port Data Cable _AZ1002
The interface location of the controller is as shown in the Fig.1.1.
Fig.1.1
Operating Procedures:
1. Select the drive file: After the device is connected, enter the software→
"Select Decice"→"Select Decice", as shown in the Fig.1.2.
Fig.1.2
