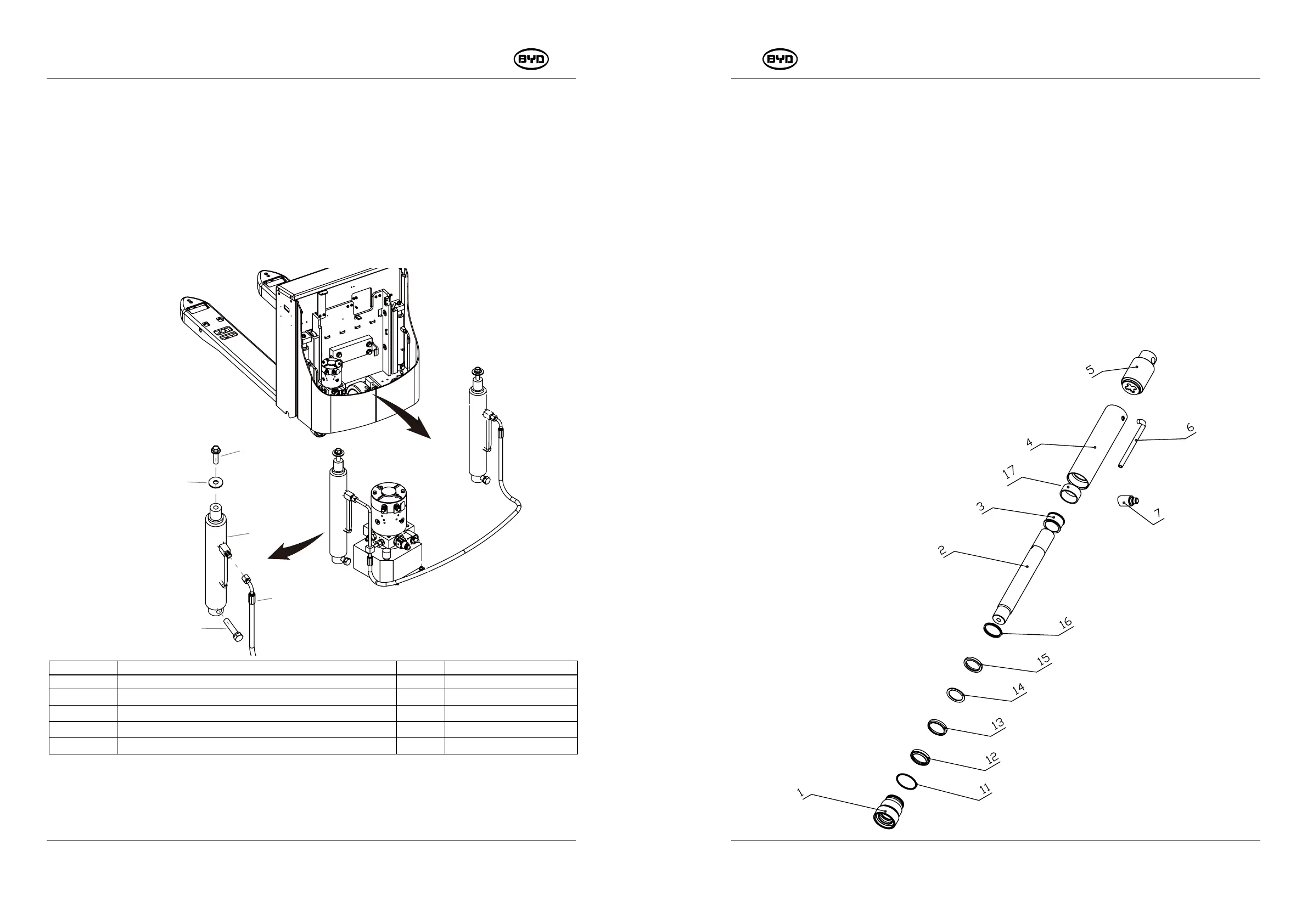

6.6 REMOVE AND INSTALL THE LIFT CYLINDER
1. Remove
1) Lower the fork to the lowest position and then open the guard (refer to 4.1 for
details).
2) Remove the bolt (Code 10) with a 15mm wrench.
3) Remove the assembly (Code 13) with a 21mm wrench.
4) Lift the oil tube connector (Code 14) with a 18mm open-end wrench and take out the
oil cylinder.
2. Install
1）Place the oil cylinder into the installation position, tighten the assembly (Code 13) and
the bolt (Code 10/Code 11).
PMW20
58
SM-PMW202020001-EN
SM-PMW202020001-EN
CODE PART NAME QTY OTHER INFORMATION
10 HEXAGON FLANGE BOLT _M12×45
1
11
PAD
1
12
CYLINDER Φ40X125
1
13
HEXAGON-HEADED BOLT AND SPRING PAD ASSEMBLY_M14×65_
14
LIFT OIL TUBE ASSEMBLY
1
1
2）Install the Oil Cylinder Connector (Code 14)
Drive the upper and lower lift cylinders of the forklift after installation and check whether
the oil cylinder connector leaks.
6.7 COMPLETE MAINTENNACE OF THE LIFT CYLINDER
1. Remove
1) Remove the liner, then carefully remove the piston rod and piston and place them in
a clean area.
2) Remove the dust-proof ring and then remove the clamp ring for taking out the circlips,
washer, and oil seal. Remove the o-ring on the cylinder cover.
3) Remove the oil seal and support ring on the piston.
