BYD PMW20 - Remove and Install the Lift Mechanism

PMW20
38
PMW20
39

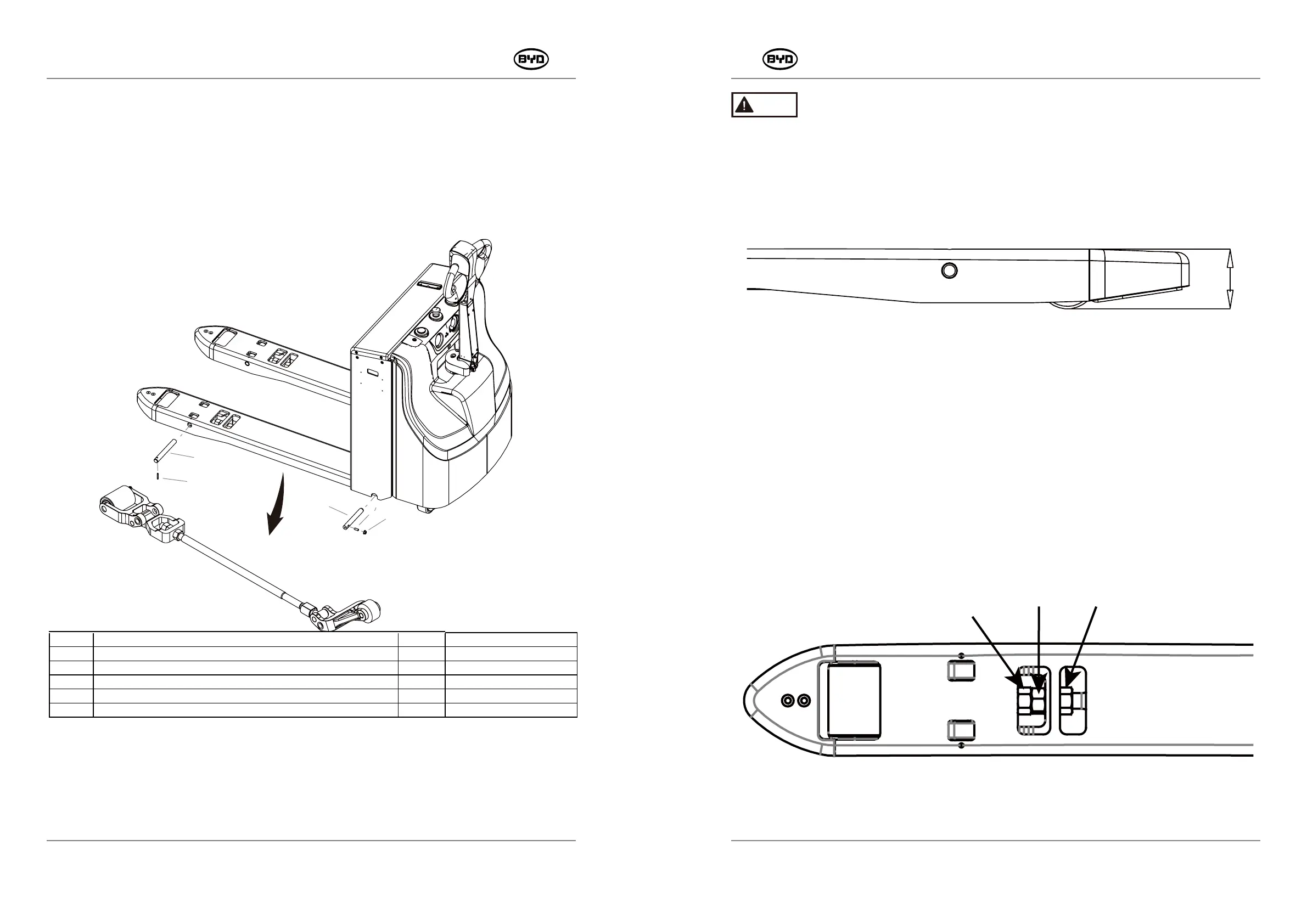

5.12 REMOVE AND INSTALL THE LIFT MECHANISM
1. Remove
1) Tap out the pin (Code 11) and the rotation shaft (Code 10) with an appropriate tool.
2) Unscrew the nut (Code 14) with a 13mm open-end wrench.
3) Unscrew the screw (Code 13) with a 4mm Allen wrench and then tap out the rotation
shaft (Code 12) for removing the lift mechanism.
13
14
11
10
12
2. Install
1) Place the lift mechanism into the installation position.
Hammer into the the rotation shafts (Code 10 and Code 12) with the copper bar.
2) Hammer into the pin (Code 11).
3) Tighten the screw (Code 13) and the nut (Code 14).
Note
If the the pull rod has been removed or the nut is loose, adjust the height of the fork
timely and then tighten the nut.
3. Adjust the Height After Installation
Adjustment standard: The minimum height H is 82 ～ 83mm.
H
Obey the following steps to adjust the minimum height of the fork:
1) Tighten the nut 1 and leave enough room to adjust the nut 2.
2) Unscrew the nut 3 and then adjust the nut 2 until the fork reaches the height set.
3) Tighten the loose nut 3.
4) Tighten the nut 1.



When screwing the nut to the right, the height H will decrease.
Instead, when screwing to the left, the height H will increase.
SM-PMW202020001-EN
SM-PMW202020001-EN
CODE PART NAME QTY
OTHER INFORMATION
10 ROTATION SHAFT OF THE SUPPORT WHEEL ARM 1
11 ELASTIC ROUND PIN 1
12 ROTATION SHAFT OF THE CONNECTION LEVER -190×550 1
13 HEXAGON SOCKET SET SCREW 1
14
HEXAGON FLANGE NUT_M8
1
