BYD PMW20 - ELECTRIC DEVICE; 1.5 ELECTRIC DEVICE

PMW20
23
PMW20
22

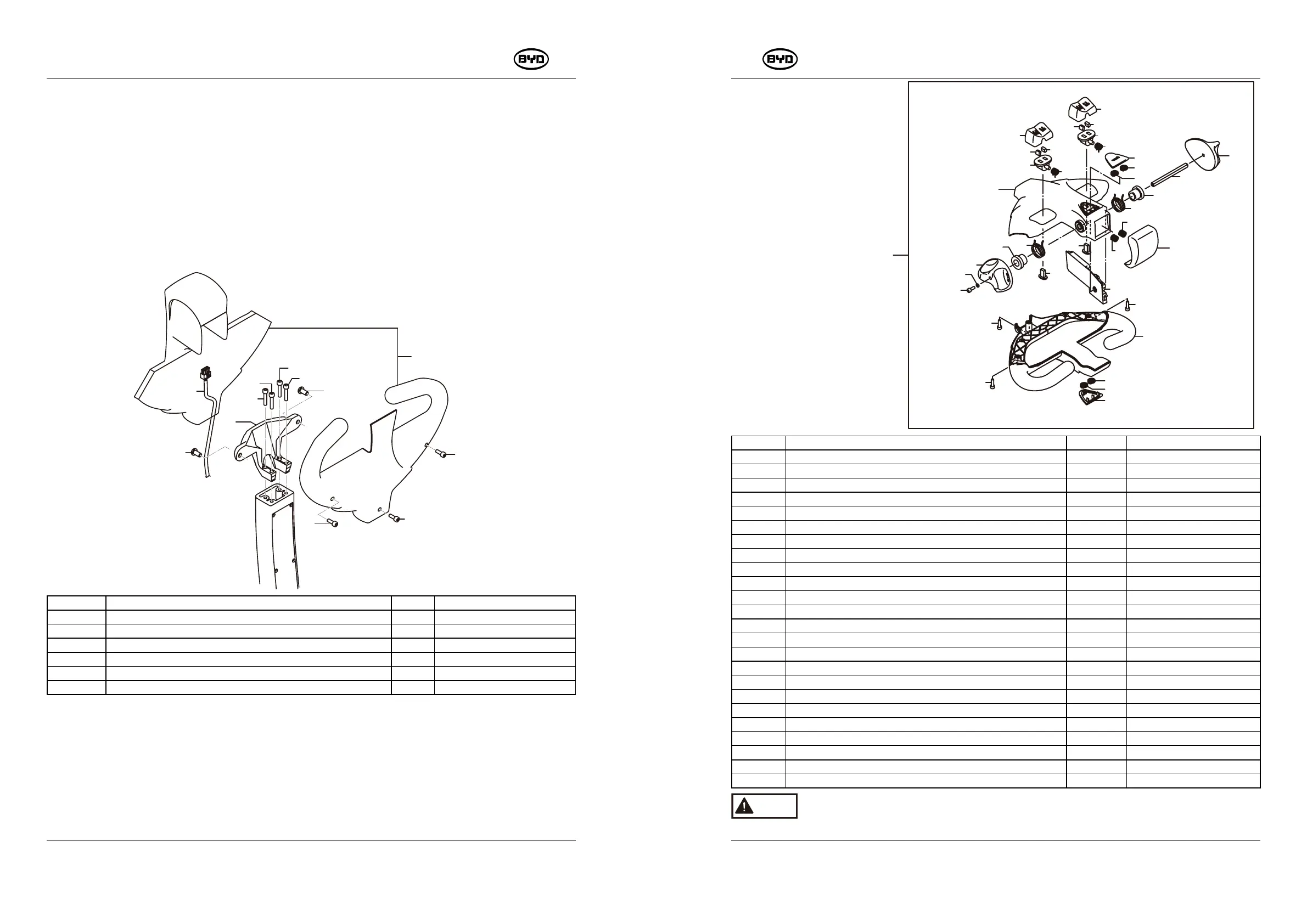

5.1 REMOVE AND INSTALL THE OPERATING HANDLE
1. Remove
(1) Unscrew the screw (Code 11) on the controlling handle with a 5mm Allen wrench and
then open the upper and lower covers on the controlling handle.
(2) Remove the screw (Code 11) connecting the handle and aluminium casting witha
5mm Allen wrench and then unplug the data cable G05 (Code 13).
(3) Unscrew the screw (Code 14) on the handle connection block with a 5mm Allen
wrench and then remove the controlling handle.
16
14
14
14
14
15
15
11
11
11
12
13
CODE PART NAME QTY OTHER INFORMATION
11
HEXAGON SOCKET HEAD CAP SCREWS M6×10
3
12 OPERATING HANDLE ASSEMBLY 1
13 DATA CABLE 1
14
HEXAGON SOCKET HEAD CAP SCREWS M6×30
4
15
HEXAGON SOCKET FLAT ROUND HEAD SCREWS M8×15
2
16 ALUMINUM CASTING CONNECTING TO THE HANDLE 1
2. Install
1) Install the screw (Code 14) connecting the handle and aluminium casting.
2) Connect the screw (Code 15) on the lower cover and then plug the data cable (Code 13).
3) Tighten the screw (Code 11) after the upper and lower covers are closed.
4) After installation, start the key and then check whether all buttons are normal.
10
11
12
12
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
26
27
27
28
28
28
28
29
30
30
31
32
33
CODE PART NAME QTY OTHER INFORMATION
10 OPERATING HANDLE ASSEMBLY 1
11 COVER OF THE HORN 1
12 SPRING 1 FOR THE HORN SWITCH 1 4
13 SPRING FOR ANTI-COLLISION SWITCH 2
14 PIN BUSHING 2
15 HANDLE PIN 1
16 SHIM 2
17
HEXAGON SOCKET HEAD CAP SCREWS M3×16
2
18 TORISPHERICAL BUTTON (LEFT) 1
19 TORISPHERICAL BUTTON (RIGHT) 1
20 HINGE SPRING (LEFT) 1
21 HINGE SPRING (RIGHT) 1
22 UPPER COVER 1
23 COVER OF THE SPEED REDUCTION SWITCH 1
24
HEXAGON SOCKET HEAD CAP SCREWS M6×10
3
25 LOWER COVER
1
26 HINGE SPRING 2
27 ROCKER OF THE SENSOR 2
28 MAGNET 4
29 COMMUNICATION CIRCUIT BOARD 1
30 MAGNETIC FIXED ROCKER 2
31 LEFT ROCKER 1
32 RIGHT ROCKER 1
33 OVER OF THE ANTI-COLLISION SWITCH 1
Wear antistatic gloves when removing and installing circuit boards.
OPERATING
HANDLE PARTS
SM-PMW202020001-EN
SM-PMW202020001-EN
Note
