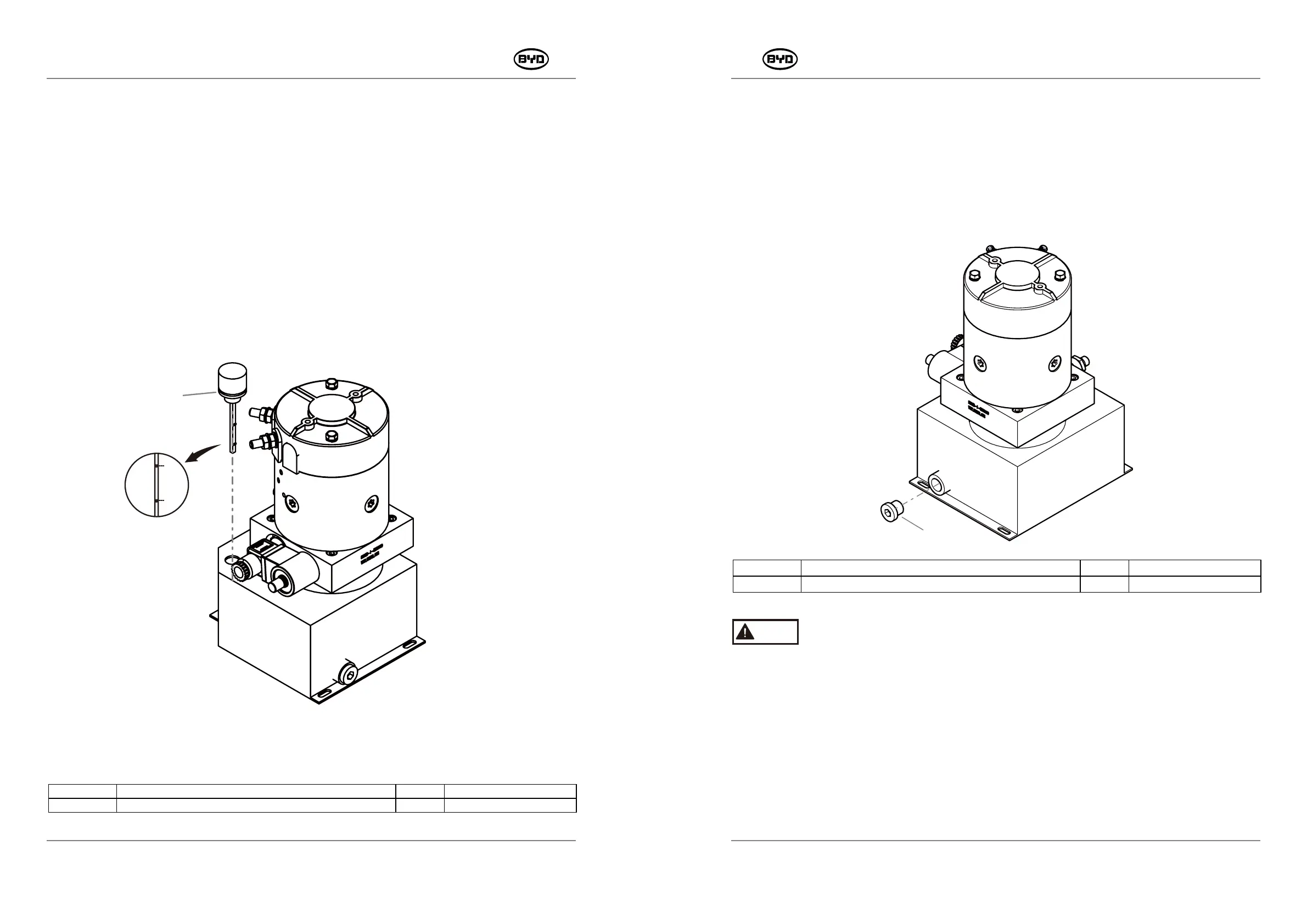

6.3 ADD HYDRAULIC OIL
1) Lower the fork to the lowest position and then open the oil filler port cap of the
hydraulic power unit.
2) Pull out the oil gauge, clean the oil with a clean cloth, and then insert the oil gauge
into the tank.
3) Pull out the oil gauge again and check whether the level of the hydraulic oil is within
the scale.
4) If the level of the hydraulic oil is below the scale, open the filling filter lid to add oil.
CODE PART NAME QTY OTHER INFORMATION
10 AIR FILTER 1
10
PMW20
54
6.4 REMOVE AND INSTALL THE POWER UNIT
1) Lower the fork to the lowest position.
2) Unscrew the plug (Code 10) with a 8mm Allen wrench and discharge the hydraulic oil.
3) Tighten the plug (Code 10) and pull out the oil gauge. Then re-add the hydraulic oil
(Refer to 6.3 for details).
10
CODE PART NAME QTY OTHER INFORMATION
10
PLUG _4BN-G3-8-Z_ CARBON STEEL
1
Note
(1)Pay attention to the surroundings when filling oil and keep dust and water out of
the oil tank.
(2)Don’t mix the hydraulic oil.
(3)Handle the waste oil away from people. Don’t dump it in waterways or on the
ground.
(4)Only authorized hydraulic oil can be used. Otherwise, it will damage the hydraulic
device. If you need to use other types of hydraulic oil, please contact after-sale
personnel of BYD forklift.
