Cafection TOTAL LITE - Equipment Specifications

TOTAL LITE Revision 1
SERVICE MANUAL FOR INNOVATION TOTAL LITE Single-Cup Brewer
15

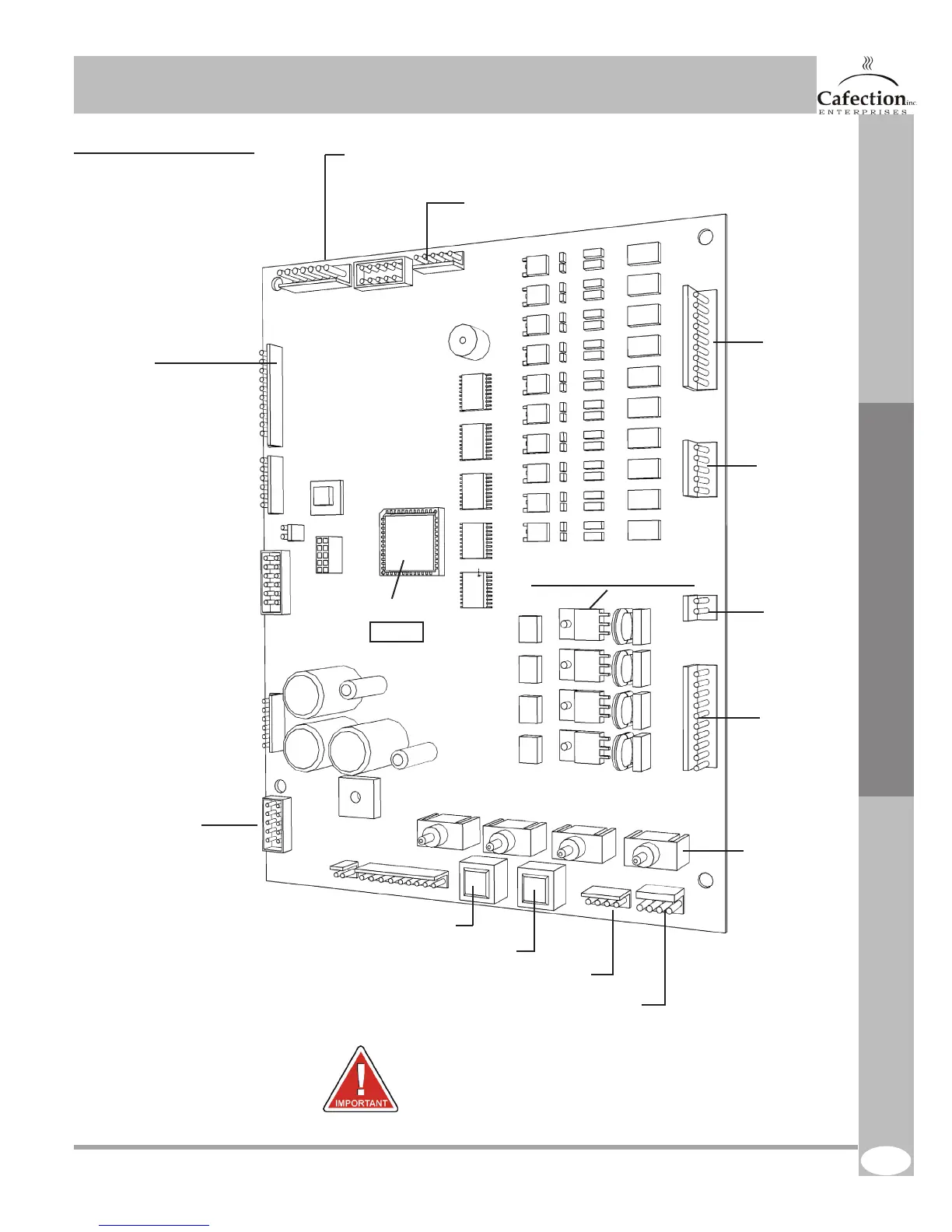

4.7 Main Board (PCB)
Reference Drawings
The equipment should always be unplugged from the
electrical outlet before servicing any components within
this main board assembly.
This is a schematic reference drawing only. Not to
scale.
J11 - MDB port - Coinchanger / bill acceptor / card reader
Expansion #2 - Thermostat board
J10 -
Numeric input
J14 - COM port
J18 - 24V
Output
J6 - 24V DC output
J12 - 120V
Input
J19 - 120V
Output
HIGH VOLTAGE AREA
J3 - 24V AC input
Reset
Microcontroller
SN #
J27 - 24V
Output
SW1 - Setup button
Toggle switches
SW2 - Service button
