TOTAL LITE Revision 1
SERVICE MANUAL FOR INNOVATION TOTAL LITE Single-Cup Brewer
19

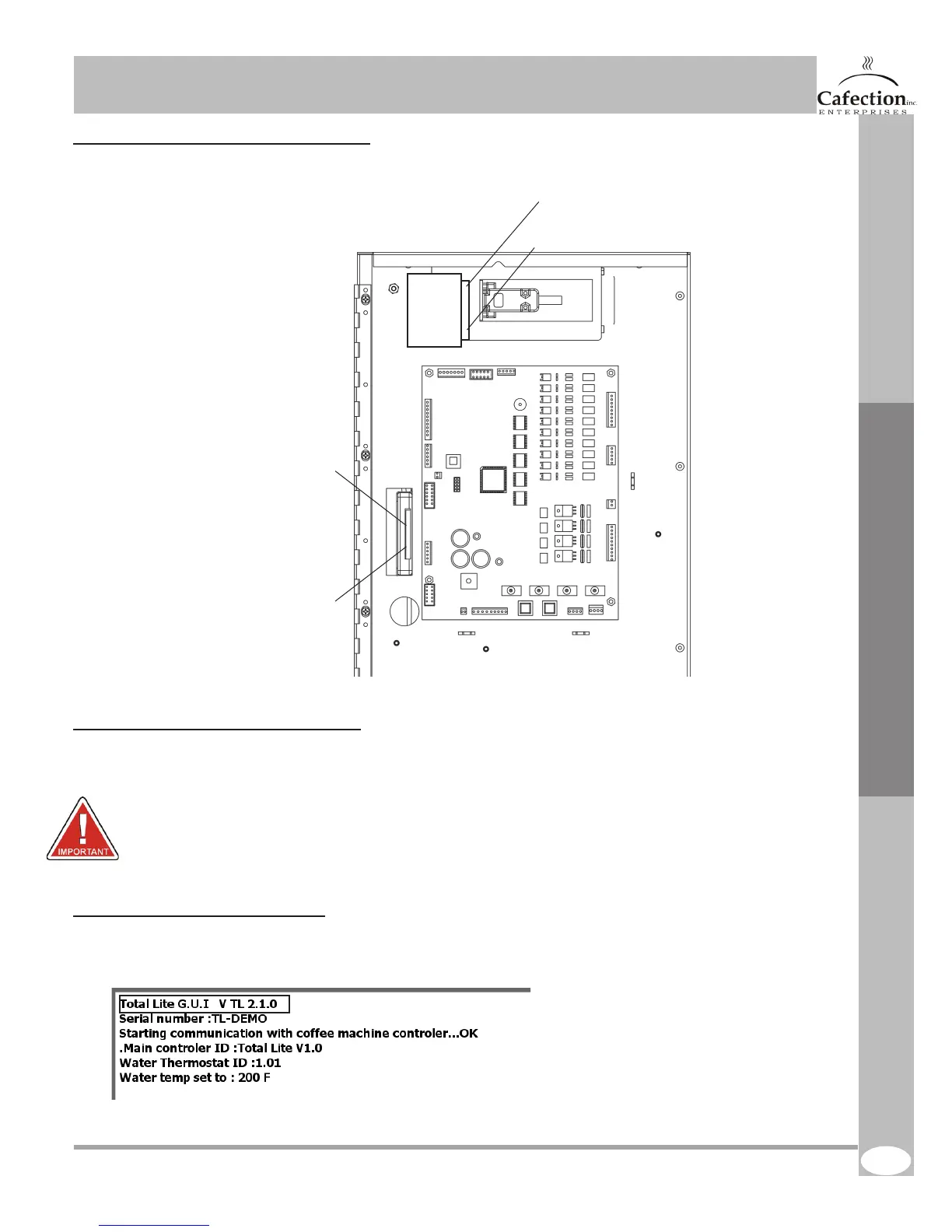

5.2 Removing the compact ash card
To remove the compact ash card pull it towards you.
5.3 Inserting the compact ash card
To insert the compact ash card make sure it’s aligned correctly with the receptacle and push it. It may
required a LITTLE amount of force but do not push it too hard.
WARNING! If the compact ash card is not inserted the right way, it’s upper corner will not enter the
receptacle. If it happens DO NOT PUSH ANYMORE or damage could be done. Flip the card and push
it back in.
5.4 Compact ash card version
At start-up, the screen will indicate the GUI (compact ash card) version #, see picture below;
Compact ash card
(Location in newest machines)
White side
Compact Flash Card
Compact ash card
(Location in older machines)
Colored side
