SERVICE MANUAL FOR INNOVATION TOTAL LITE Single-Cup Brewer
36
7.1.1 Clearances
Unit Clearances Allowance for:
Height: 39 3/4” 13 1/4” Open the top of themachine.
Width: 131/2’’ 6”
Per side. Key access on one side and door swing on the
other.You need 12’’ clearance to open the coin acceptor
(optional)
Depth: 23’’ 11 1/2” Front when the door is open.
6”
Clearance of water hookup, hoses, water ltration system
and adequate air circulation.
7.1.2 Specications
Canisters Capacities
Whole bean hopper 1: 4 lbs Soluble hot chocolate: 2.50 lbs
Whole bean hopper 2: 2 lbs Soluble powdered milk : 0.70 lbs
Whole bean hopper 3: 4 lbs
Water Tank Electrical requirements
Capacity: 0.8 gallon us (3.0 l) 115 VAC
Water valves: 1 simple valve ; 1 double valve 15 A circuit
Heating element: 1250 watts 60 Hz
Chute

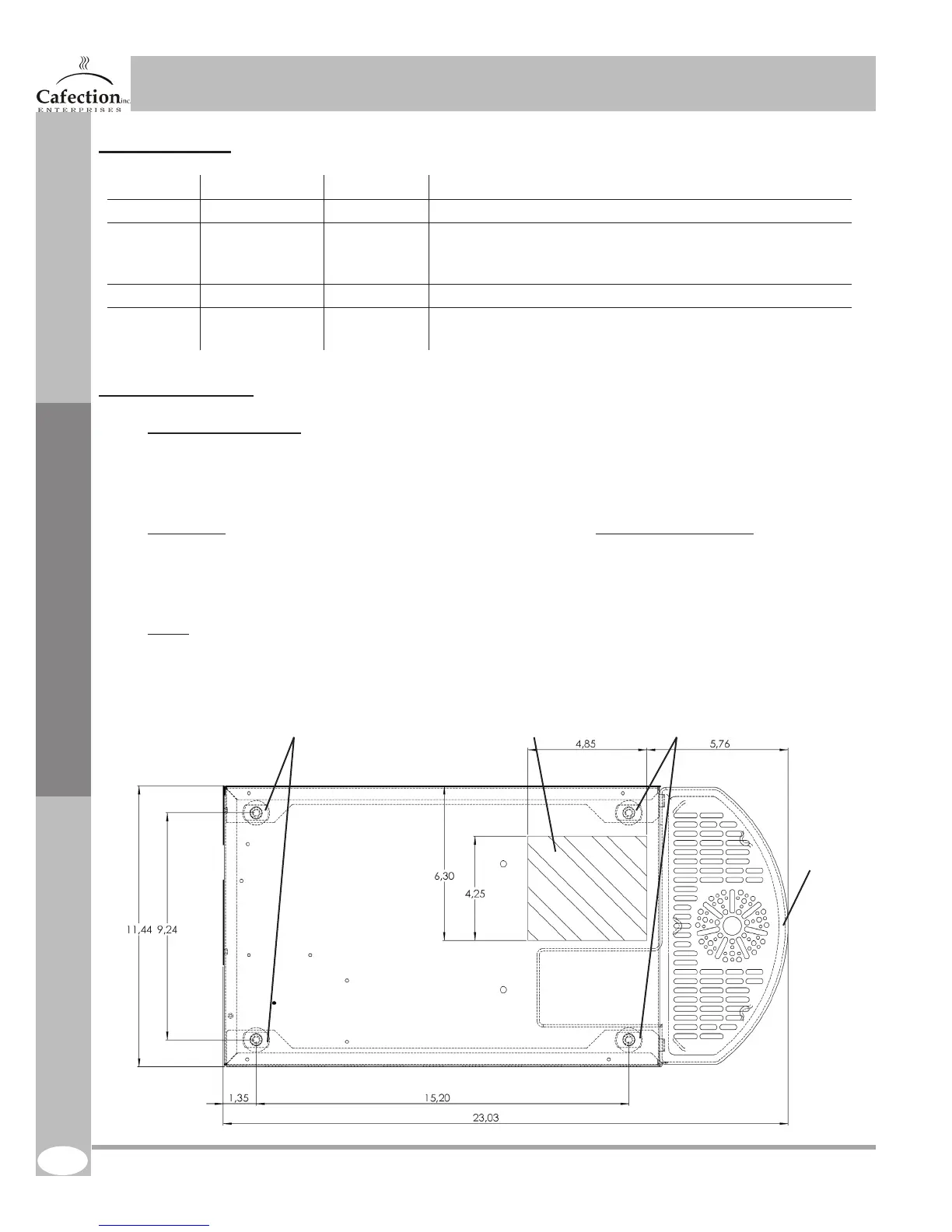

TOP VIEW
Levellers positionLevellers position
Drip tray
Hole for the chute
Initial Setup
