Cafection TOTAL LITE - Brewer Assembly

TOTAL LITE Revision 1
SERVICE MANUAL FOR INNOVATION TOTAL LITE Single-Cup Brewer
64

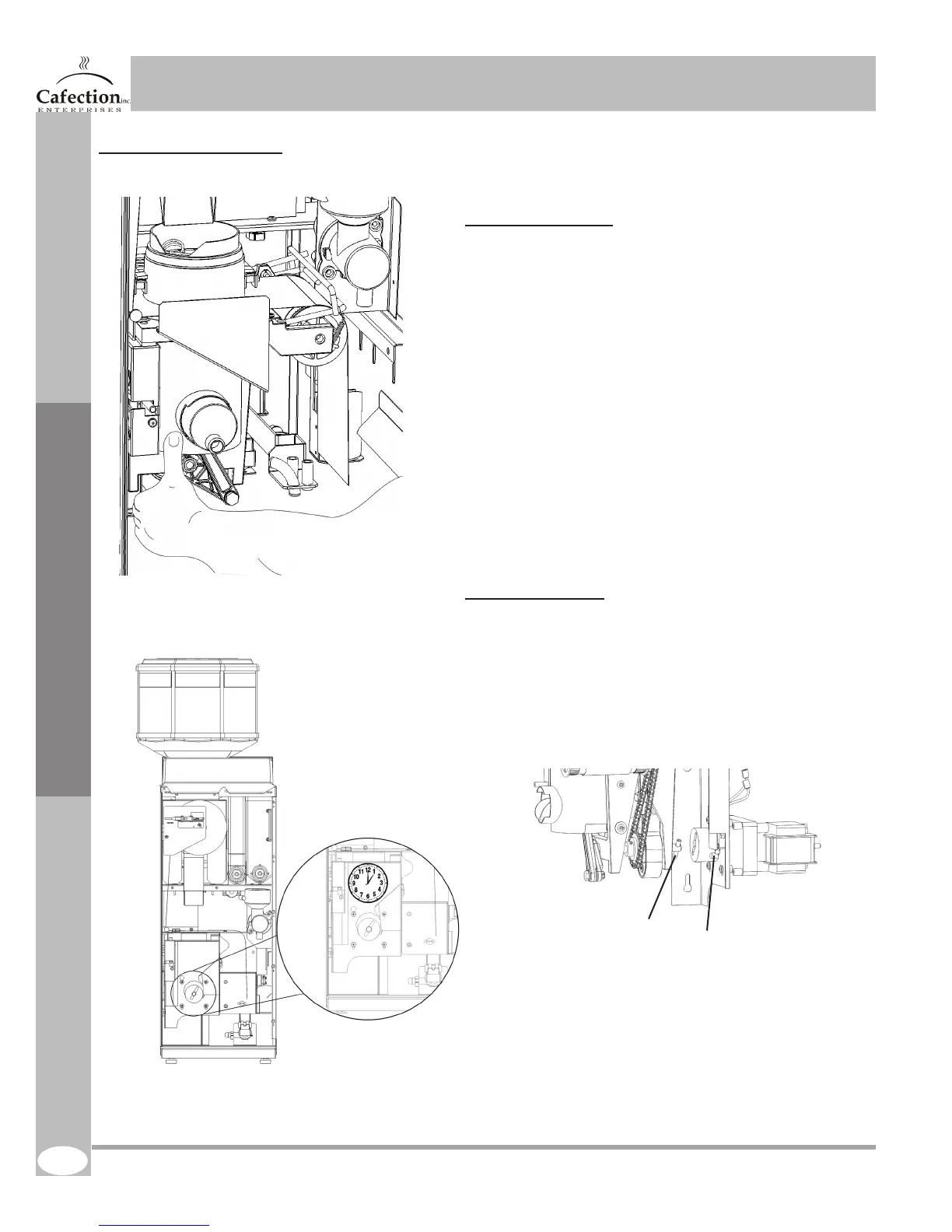

10.3 Brewer Assembly
Removing the brewer
1. Open the machine door;
2. Go in service mode by pressing Setup
Button SW1 (See section 4.7). Press
change lter paper once.
3. Wait for the brew chamber to open.cut the
lter paper;
4. Cut the lter
5. Remove the coffee spout and the hose
support bracket from the right side of the
brewer assembly;
6. Support the brewer assembly by holding
the aluminum frame on the right side of the
brewer assembly;
7. With your left hand, slide the retaining pin
over to the right and then down;
8. Pull the brewer assembly straight towards
you.
Installing the brewer
1. Make sure that the dog drive pin in the
back of the brewer is at 1 o’clock;
2. Align the left edge of the brewer on the left
bracket support;
3. Push the brewer back completely into the
dog drive motor;
4. Slide the brewer’s retaining pin up and
then left.
Dog
drive
Pin
Servicing Parts
