Initial Setup
7.10 Chute System Installation
1. Open the door of the equipment;
2. Insert the chute base through the chute hole of the cabinet;
3. Insert the large waste chute into the chute base;
4. Install the front panel onto the chute by aligning the prongs to the left of the catch and clip onto the
left side of the brewer assembly.

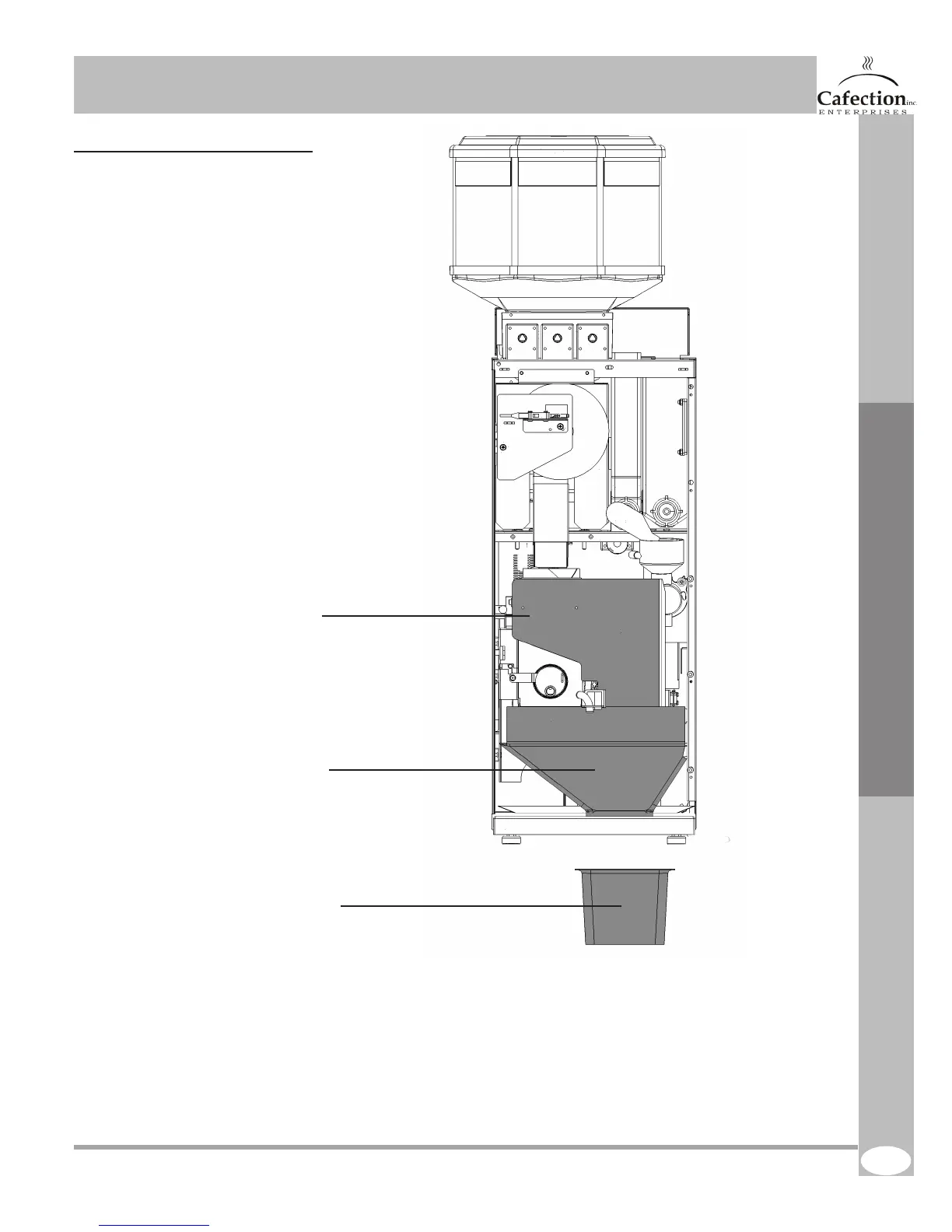

Front Panel
Waste
Chute
Chute Base
