5 SYSTEM INFORMATION
The following sections describe System Information—including boards, ports and connections—
that can be monitored with the WebGUI.
5.1 System Info > Boards Detail
The Boards Detail screen of the WebGUI provides detailed information for each board installed
in the system, including the board type, its location (slot) and its alarm state.
The following steps describe how to access the Board Details screen of the WebGUI:
1. Log into the system.
2. Navigate the following path: System Info > Boards Detail. The Boards Detail screen will
open.

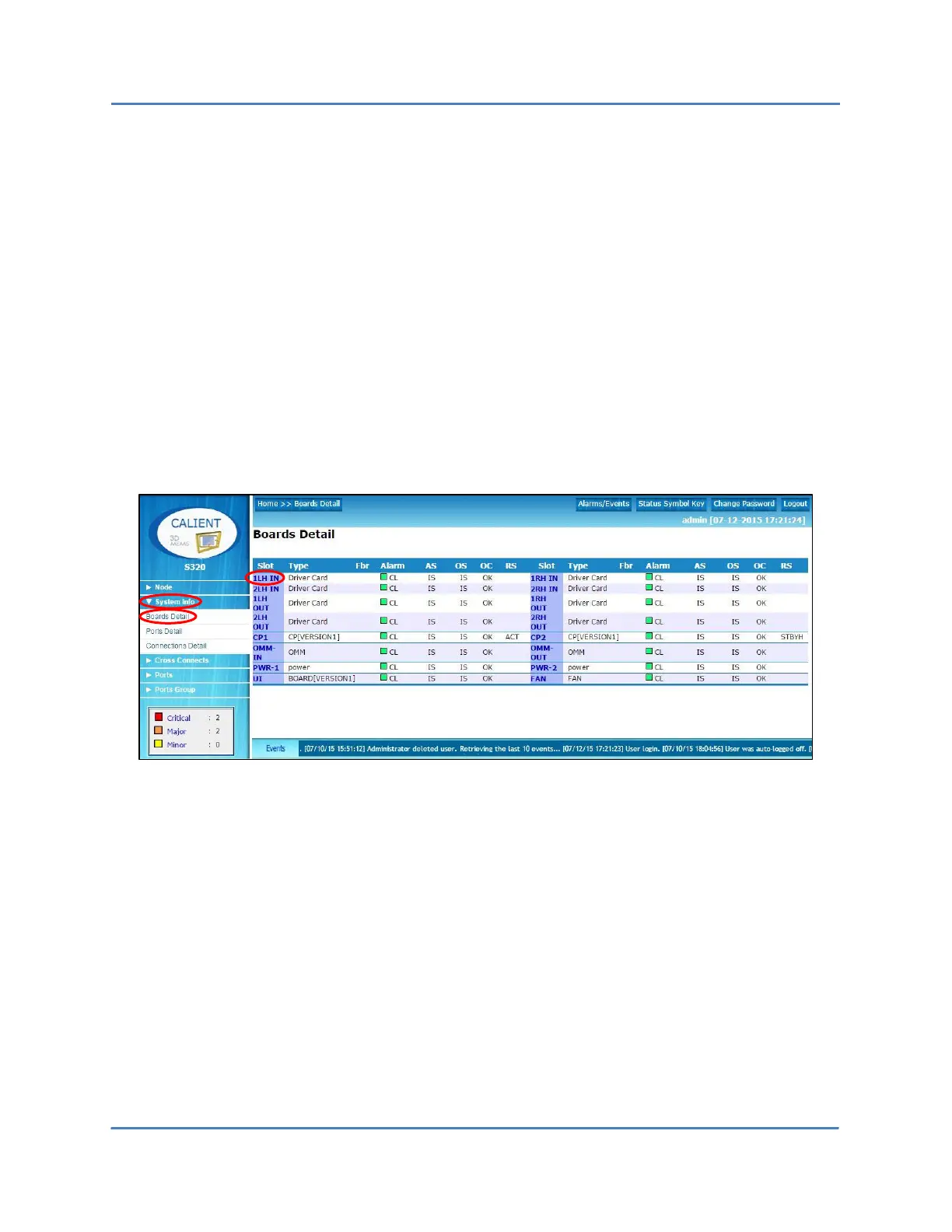

3. Click any item in either Slot column to display detailed information for that item. For
example, clicking 1LH IN in the preceding screenshot reveals the following details about
the item:
