9. The default value for the Direction: field is Bidirectional. To change this value, click
the down arrow () at the right of the field to display a dropdown menu, and click the
Unidirectional option to select it.
10. Click the Add Connection button at the bottom of the screen to create the new
connection on the system, or click the Refresh button to clear the port selections
and return to the All tab of the Add Cross Connection screen.

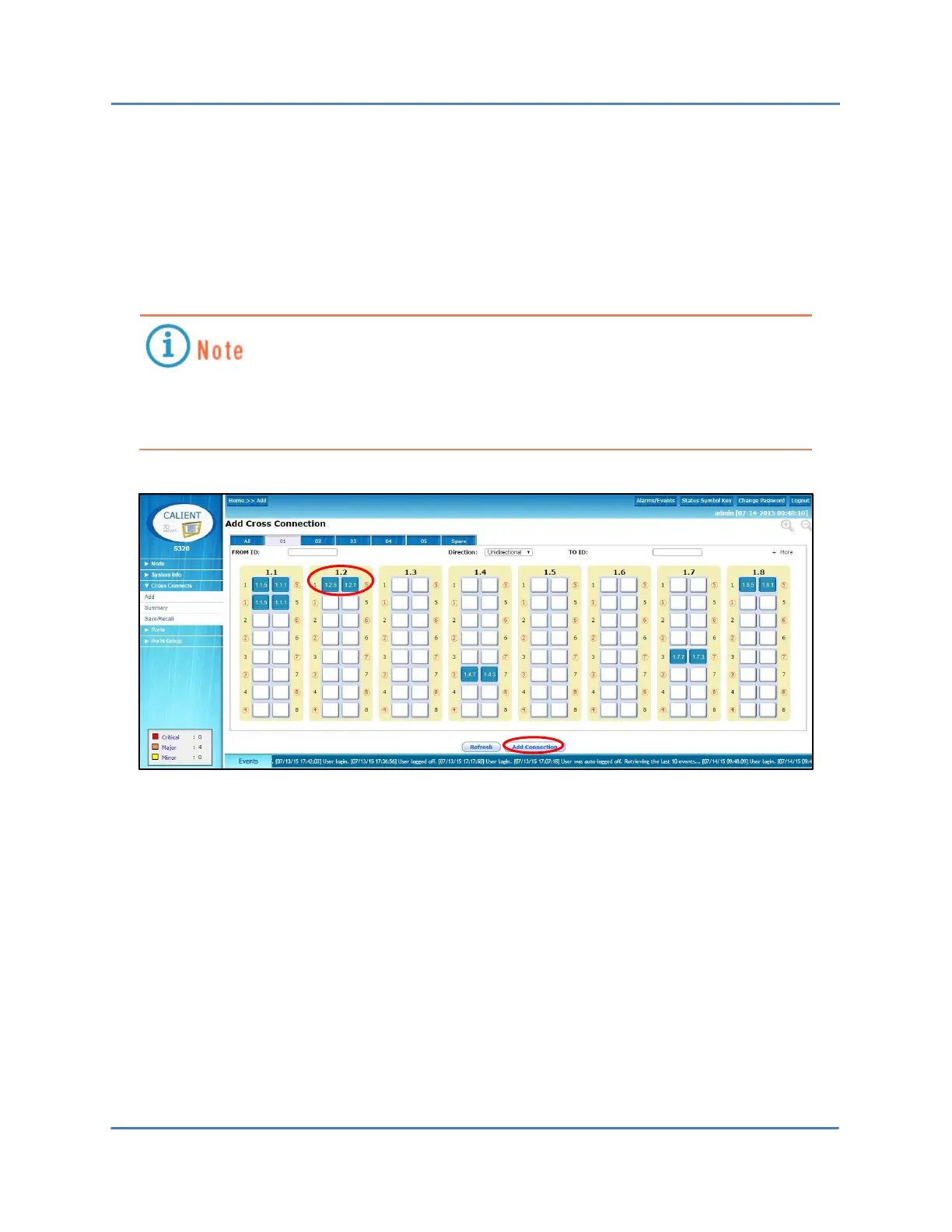

If the new connection is Bidirectional, 4 ports (2 input + 2 output) will be highlighted
blue on the Add Cross Connection screen. If the new connection is Unidirectional, only
2 ports (1 input + 1 output) will be highlighted.
6.1.1 Cross Connects > Add > Cross Connect Details
Additional information about connections can be obtained by doing the following:
1. Right-click on one of the ports in an established cross connection. A dialogue box will
appear, listing the following options: Connection Detail, Delete Connection and View
Port Details.
