10
INSTALLATION

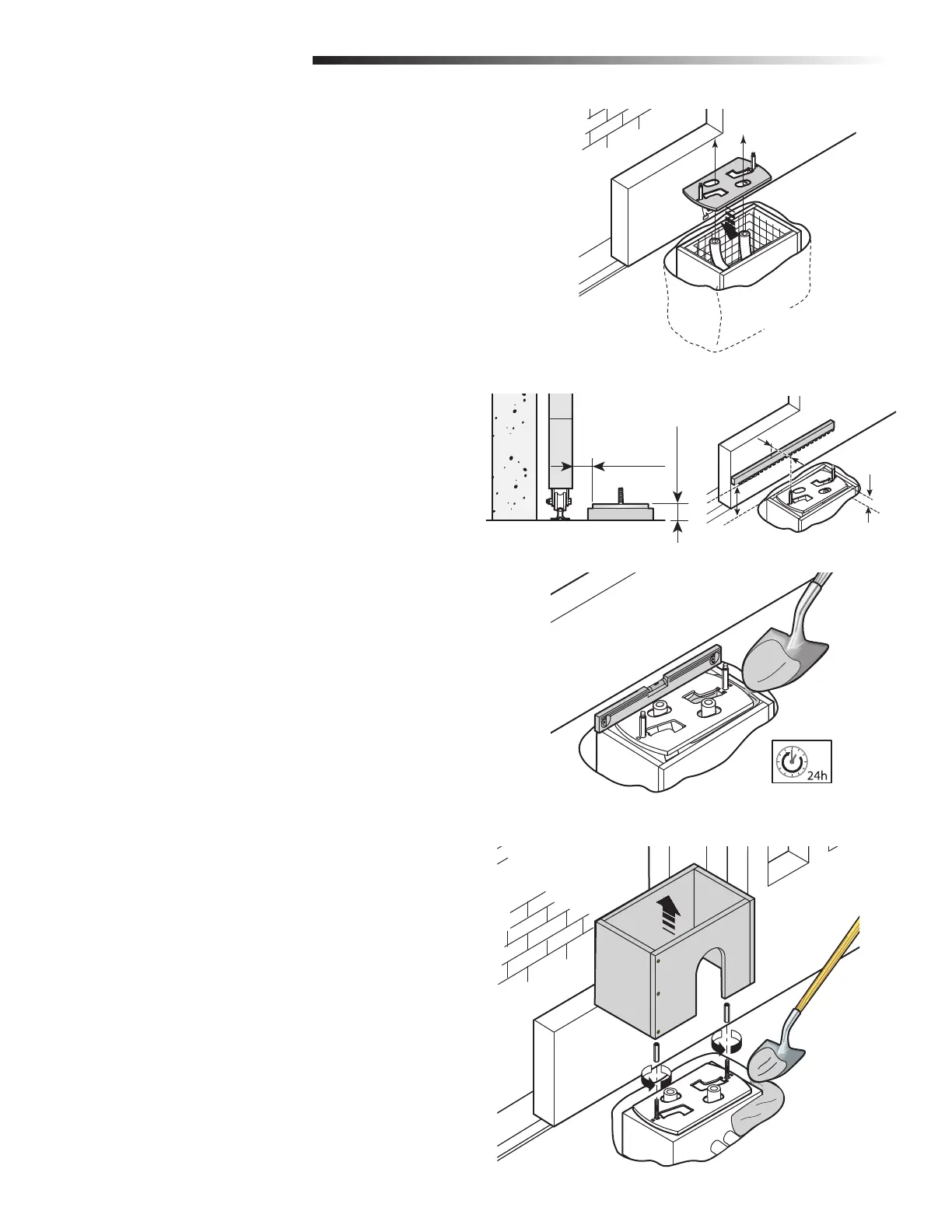

PREPARE AND INSTALL THE MOUNTING
PLATE
7
Position the mounting plate on top of the grid (Figure 4). Conduit must be run
through separate knockouts.
8
Position the mounting plate relative to the gate (Figure 5).
9
Fill the form box with concrete and wait for at least 24 hours to allow the
concrete to cure (Figure 6).
10
Remove the form box (Figure 7).
11
Fill the hole around the concrete form with soil (Figure 7).
12
Remove the nuts and washers from the bolts (Figure 7). The mounting plate
must be clean, perfectly level and with the bolt threads completely above the
surface.
For model BX243C (Chain) proceed to page 11.
For model BX243R proceed to page 14.
1.97”
2.17”
PREPARE AND INSTALL THE MOUNTING PLATE
FIGURE 5
FIGURE 4
FIGURE 6
FIGURE 7
3.54”
1.97”
4.13”
MODEL BX243C MODEL BX243R
