CAME BX243C - Determine Opening Direction of Gate

16

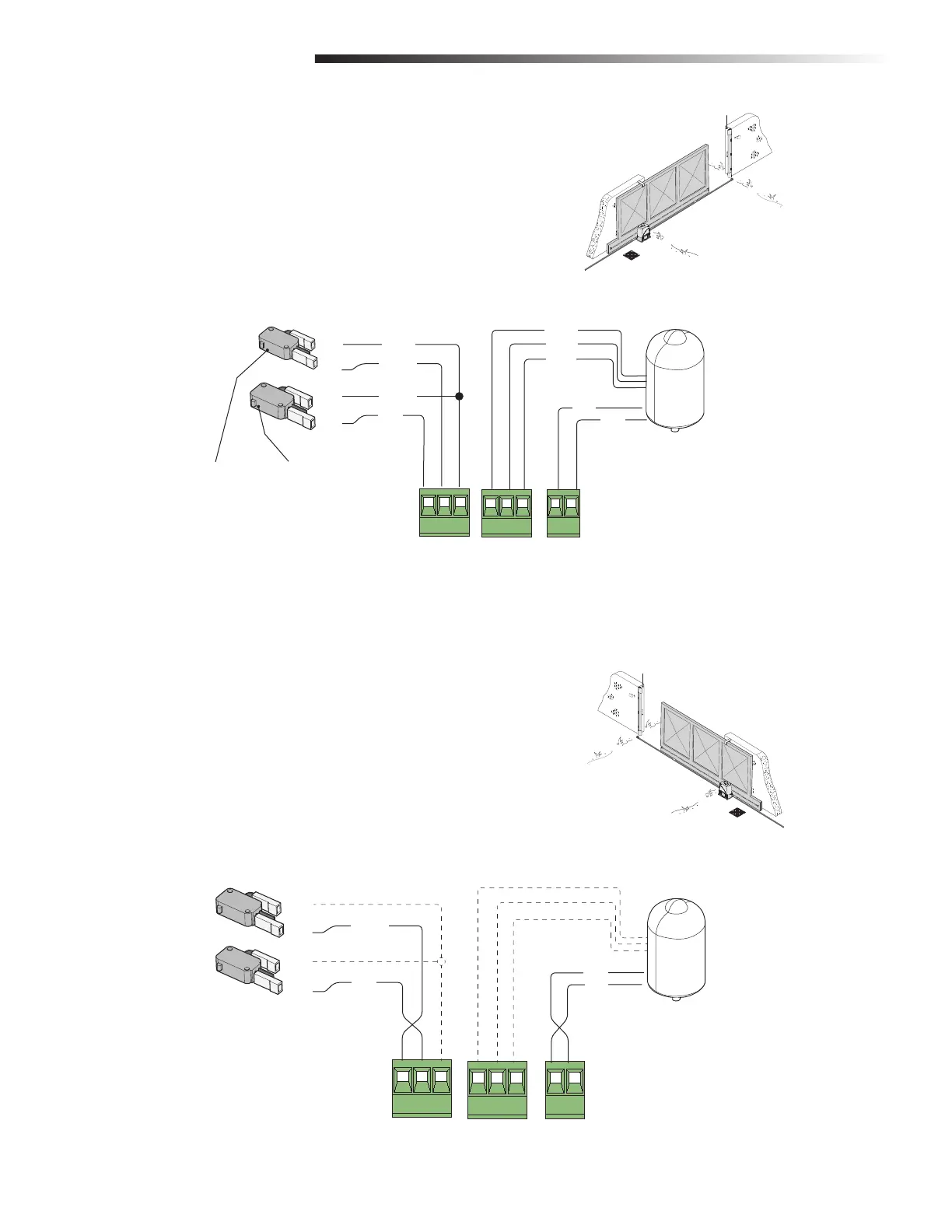

DETERMINE OPENING DIRECTION OF GATE
MOTOR AND LIMIT SWITCHES (OPEN TO THE LEFT)
The operator is factory configured for a left-handed installation.
- .
 % &# &! &
MOTOR AND LIMIT SWITCHES (OPEN TO THE RIGHT)
To change to a right-hand installation, reverse the wiring for the motor (M-N) and
limit switches (FA-FC).
- .
 % &# &! &
COM
NC
NC
COM
Red
Orange
White
Green
Left-handed (factory default)
24V (AC) motor with encoder
Close limit switch
Open limit switch
Orange
White
Brown
Green
Red
COM
NC
NC
COM
White
Red
Green
Red
Right-handed
24V (AC) motor with encoder
INSTALLATION
DETERMINE OPENING DIRECTION OF GATE
LEFT-HAND
RIGHT-HAND
