CAME BX243C - Install Operator (Model BX243 R); Release Operator and Rest Rack; Weld Rack and Adjust Position

14
INSTALLATION
INSTALL THE OPERATOR (MODEL BX243R ONLY)
INSTALL THE OPERATOR (MODEL BX243R
ONLY)
1
Release the operator by pulling the release lever (refer to page 15).
2

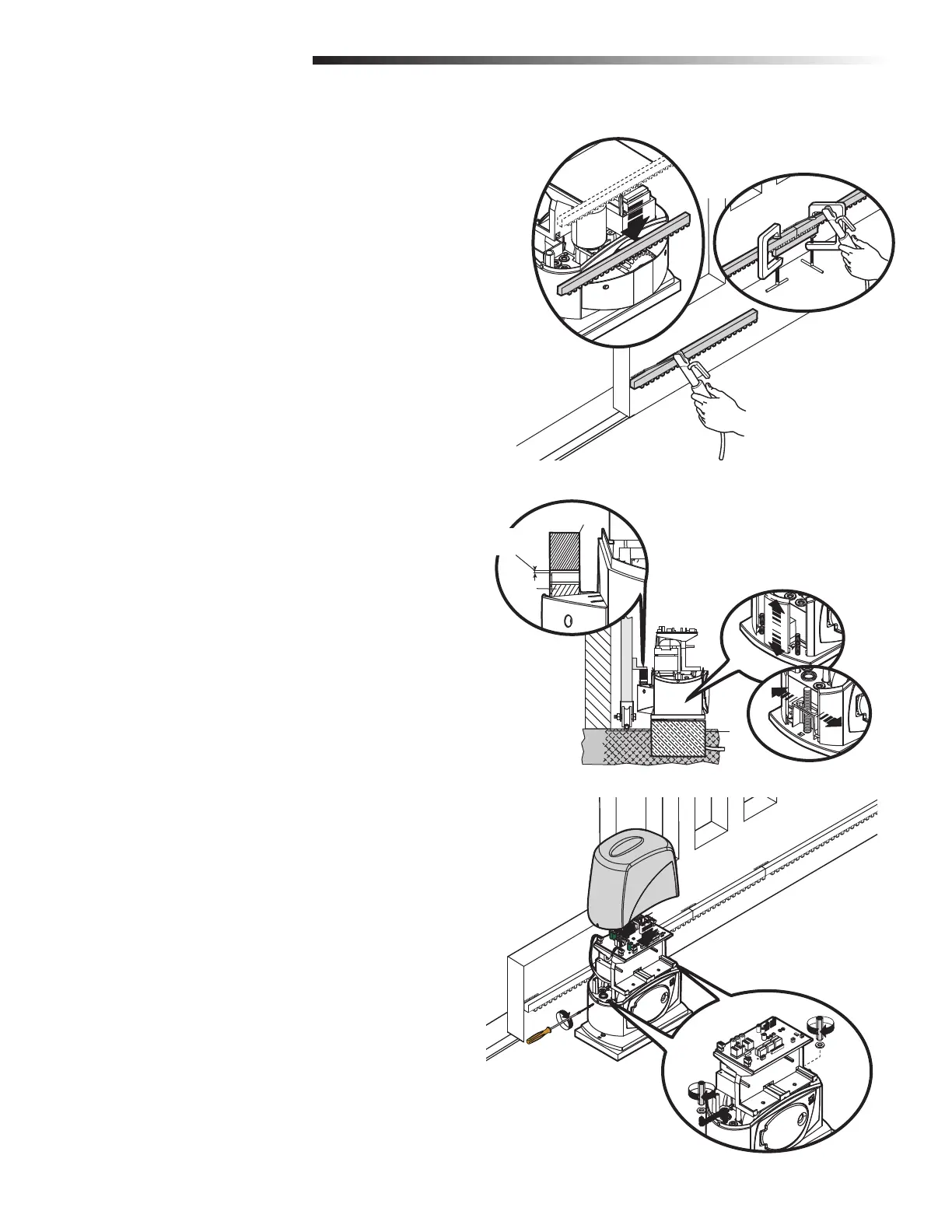

Rest the rack on the gearmotor pinion (Figure 1).
3
To assemble the rack modules, use an excess piece of rack and place it under
the joint. Secure the rack pieces with two C-clamps (Figure 1B).
4
Weld the rack to the gate along its entire length (Figure 1C).
5
Open and close the gate manually and register the rack to pinion distance
using the levelling feet (for vertical adjustment) and the slotted holes (for
horizontal adjustment) (Figure 2).
6
Secure the operator using the nuts and washers (Figure 3).
7
Secure the cover with a screw on each side (Figure 3).
Rack
FIGURE 1A
FIGURE 1C
FIGURE 1B
FIGURE 2
FIGURE 3
Pinion
Coupling Distance
(1/32-5/64")
