INSTALL THE OPERATOR (MODEL BX243C
ONLY)
6

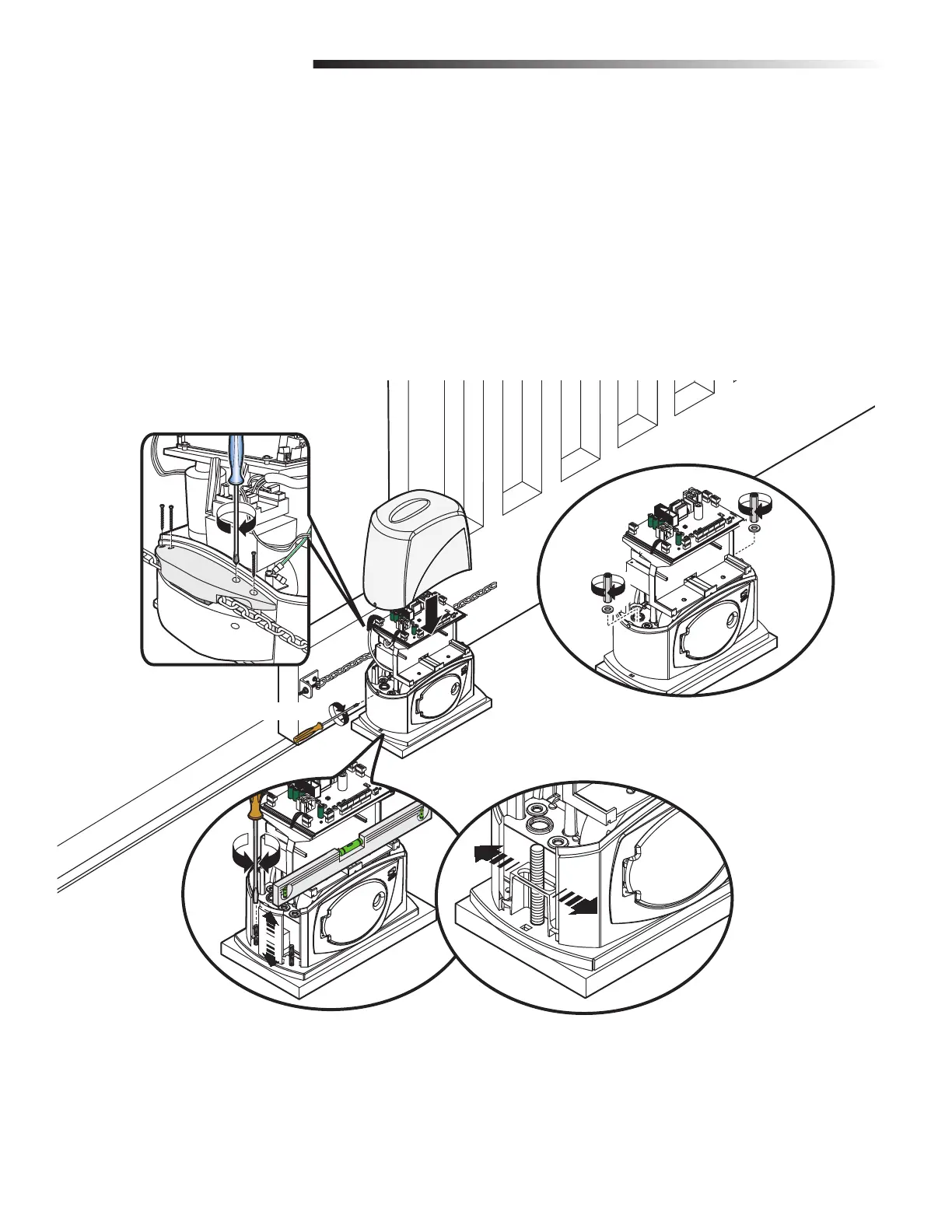

Position the operator using the four leveling feet for vertical adjustments and
the slots for horizontal adjustments (Figure 1A).
7
Once adjustments are complete, secure the operator with the bolts and nuts
(Figure 1B).
8
Re-attach the pulley cover with four screws (Figure 1C).
9
Secure the cover with a screw on each side (Figure 1D).
INSTALLATION
INSTALL THE OPERATOR (MODEL BX243C ONLY)
FIGURE 1A
FIGURE 1B
FIGURE 1C
FIGURE 1D
